| Place of Origin: | China |
| Brand Name: | Santo |
| Certification: | ISO |
| Model Number: | JM |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 2999USD- 9999USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~45 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3999SETS/YEAR |
| Capacity: | 0.5t~50t | Rope Length: | 50m~500m |
|---|---|---|---|
| Structure: | Electric System | Brake: | Hydraulic Brake System |
| Rated Speed: | As Demands | Usage: | Cable Pulling Machine, Carry Heavy Goods |
| Color: | Customized | Rope: | Steel Wire |
| Material: | Steel Carbon | ||
| High Light: | 10 Tons Diesel Powered Winch,Electric Diesel Engine Powered Winch,Diesel Powered Winch With Wire Rope |
||

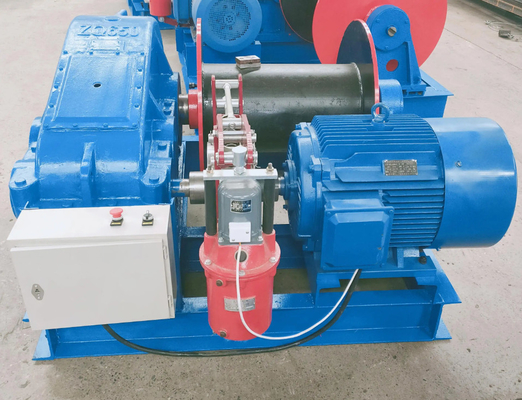

10 Tons Barge Electric Diesel Engine Powered Winch Windlass With Wire Rope
Parameter:
| Items | Rated load, KN |
Rated speed, m/min |
Rope capacity, m |
Rope diameter, mm |
Motor | Power | Size, mm |
Weight, kg |
| JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| JM1.6 | 16 | 16 | 150 | 12.5 | Y132M2-6 | 5.5 | 945*996*570 | 500 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M2-6 | 7.5 | 1430*1160*910 | 1100 |
| JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M2-6 | 7.5 | 1082*1014*610 | 536 |
| JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1560 |
| JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620*1260*945 | 1800 |
| JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1800 |
| JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
| JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
| JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1230*805 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
| JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |
Our electric winch characteristics:
