| Place of Origin: | China |
| Brand Name: | Santo |
| Model Number: | JM |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000USD- 50000USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~45 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3500SETS/YEAR |
| Capacity: | 0.5t~50t | Rope Length: | 50m~500m |
|---|---|---|---|
| Structure: | Electric System | Brake: | Hydraulic Brake System |
| Rated Speed: | As Demands | Usage: | Cable Pulling Machine, Carry Heavy Goods |
| Color: | Customized | ||
| High Light: | JM65 Electric Lifting Winch,JM10 Electric Lifting Winch,JM heavy duty electric winch |
||

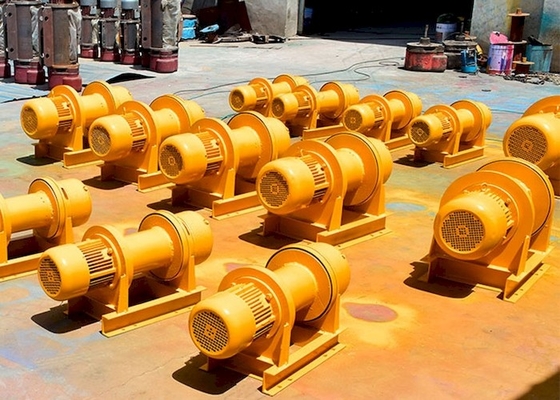

Multi - Angle Lifting Heavy Objects Electric Winch Convenient Displacement
Information:
An electric winch is a small and lightweight lifting device that uses a drum to wrap a wire rope or chain to lift or pull heavy objects. It is also called a winch. The hoist can lift heavy objects vertically, horizontally or obliquely. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road construction, and mine hoisting. Because of its simple operation, large amount of rope winding, and convenient displacement.
Electric winch is a kind of widely using machine in lifting machinery. It can lift heavy weight in the Construction Site and Port pier, also it can be the Tractive power in installing of the factories and mines.
It not only can be used independently, but also can work with other largescale and complex machine. It has been a necessary machine in the Construction Site and Port pier.

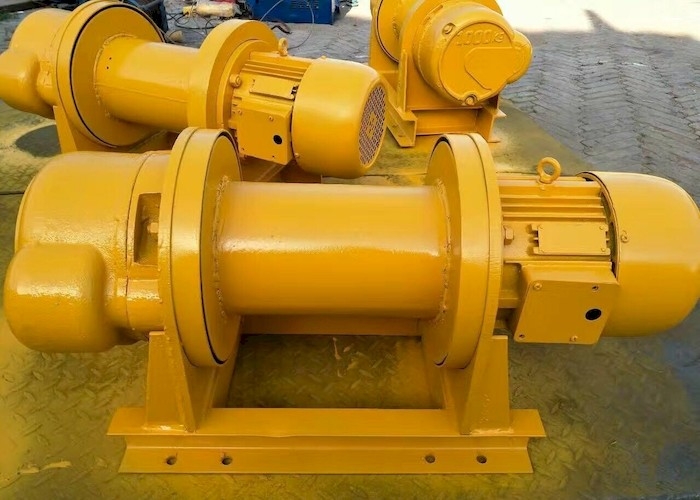

Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
Specification:
| Items | Rated load, KN |
Rated speed, m/min |
Rope capacity, m |
Rope diameter, mm |
Motor | Power | Size, mm |
Weight, kg |
| JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 |
| JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM13.5 | 135 | 0~5 | 290 | 28 | YZR225S-8 | 22 | 2990*2366*1650 | 6500 |
| JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | YZR280S-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 |
46000 |
Our electric winch characteristics:
Application:
Electric winches are commonly used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
