| Place of Origin: | China |
| Brand Name: | Santo |
| Certification: | ISO |
| Model Number: | JKD |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 2000USD- 4000USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3500SETS/YEAR |
| Capacity: | 0.5t~2t | Rope Length: | 50m~200m |
|---|---|---|---|
| Brake: | Included | Rated Speed: | As Demands |
| Usage: | Cable Pulling Machine, Carry Heavy Goods | Color: | Customized |
| Power Supply: | 220-690V, 50/60HZ, 3Phase | ||
| High Light: | 20KN small electric winch 240v,7.5KN electric pulling winch 240v,JKD Electric Capstan Winch |
||
Large Amount Of Rope Winding Small Electric Winch With Electromagnetic Brake
General description:
JKD Light Duty Small Electric Winch is a small and lightweight lifting equipment that uses a drum to wind a wire rope or chain to lift or pull heavy objects. It is also called a winch. The hoist can lift heavy objects vertically, horizontally or obliquely. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road construction, and mine hoisting. Because of its simple operation, large amount of rope winding, and convenient displacement.
Specification:
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| JKD1.6 | 16 | 160 | 12.5 | 7.5 | 1200x440x480 | 350 |
| JKD2.0 | 20 | 190 | 13 | 15 | 1400x470x548 | 510 |
All the above parameters can be customized according to clients' requirements.
Advantages and Features:
Application of winch:
Electric winches are commonly used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.

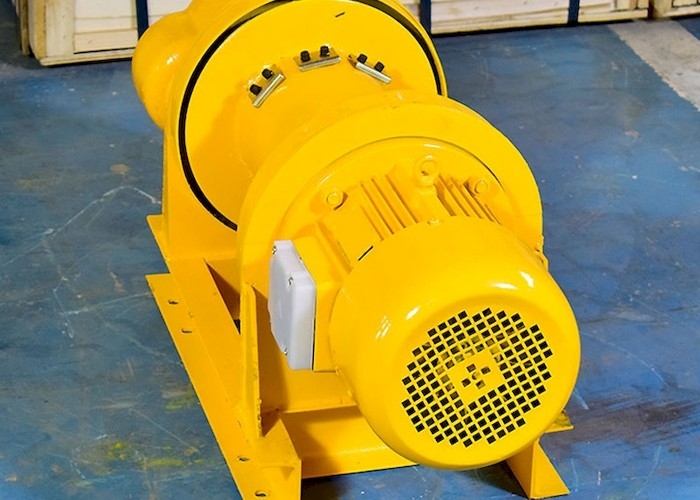

Winch Photos:
