Place of Origin: | China |
Brand Name: | Santo |
Certification: | ISO |
Model Number: | JM |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 5000USD- 50000USD |
Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
Delivery Time: | 15~45 WORKING DAYS |
Payment Terms: | L/C, D/A, T/T |
Supply Ability: | 3500SETS/YEAR |
Capacity: | 0.5t~50t | Rope Length: | 50m~500m |
---|---|---|---|
Structure: | Electric System | Brake: | Hydraulic Brake System |
Rated Speed: | As Demands | Usage: | Cable Pulling Machine, Carry Heavy Goods |
Color: | Customized | ||
High Light: | VVVF Speed Double Drum Electric Winch,0.5t Wire Rope Pulling Hoist,Santo Anchor Mooring Winch |

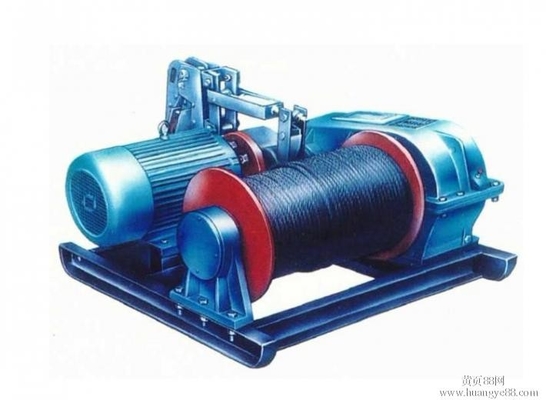

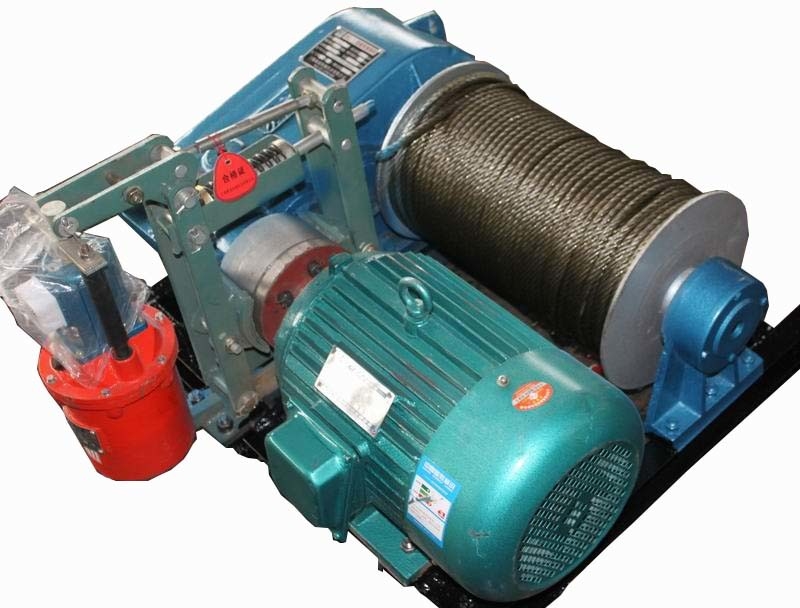

Wire Rope Double Drum Electric Winch for Material Loading Unloading Hoisting Towing Pulling Mooring Anchor Winch Price
IN CONSTRUCTION, MINE, MARINE FIELDS, OUR WINCH IS BEST CHOICE FOR YOU.
Towing, anchor, mooring, dredging, barge, dam gate winch and so on, we develop and produce winches for international customers, in most cases entirely tailored to their requirements.
Electric winch is a kind of widely using machine in lifting machinery. It can lift heavy weight in the Construction Site and Port pier, also it can be the Tractive power in installing of the factories and mines.
Parameter:
Items | Rated load, KN |
Rated speed, m/min |
Rope capacity, m |
Rope diameter, mm |
Motor | Power | Size, mm |
Weight, kg |
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
JM1.6 | 16 | 16 | 150 | 12.5 | Y132M2-6 | 5.5 | 945*996*570 | 500 |
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M2-6 | 7.5 | 1430*1160*910 | 1100 |
JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M2-6 | 7.5 | 1082*1014*610 | 536 |
JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1560 |
JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620*1260*945 | 1800 |
JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1800 |
JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1230*805 | 1800 |
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |
Our electric winch characteristics:
Our Services:
As a professional Cranes & Lifting Solutions provider, we specialize in this field over 35 years, we Santo Crane has set up a perfect sales network and after-sales service system. We have 42 sales managers and 10 engineers especially for exporting business. We believe with our rich experience, we can provide you a professional solution supporting and satisfied service.
Various special designs are available for use in particular conditions.
This is one of our particular strengths. Together with our designers, we develop a customised solution with you for your special needs.
Iso 9001:2008 Certification Used Seimens Electric Hoist
After-sale Service
Iso 9001:2008 Certification Used Seimens Electric Hoist
Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem with the main body(not including the wearing parts), we will arrange our professional engineers to provide repairment service. Also we will provide one group wearing parts for free.
Installation Service: If customer don't need our engineers for installation, we will provide Remote Advisory Services. Also we could arrange engineers to provide installation service if customer need.
Periodic follow up for cranes serving situation. Collecting customers comment, develop better products and service.
Any problems come out in the usage, if that because of the quality we will take full responibility, and arrange professional after-sale department to provide solution. if that because of the misoperation or other problems, we will also provide a professional technological supporting or arrange our engineers to help if customer need.
Contact Person: Miss. Alice Yuan
Tel: 13569821405
