| Place of Origin: | China |
| Brand Name: | Santo |
| Certification: | ISO |
| Model Number: | JK JM JMM JKL |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000USD- 50000USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~45 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3500SETS/YEAR |
| Capacity: | 0.5t~60t | Rope Length: | 50m~500m |
|---|---|---|---|
| Structure: | Electric System | Brake: | Hydraulic Brake System |
| Rated Speed: | Standard And Customizable | Usage: | Cable Pulling Machine, Carry Heavy Goods |
| Color: | Customized | ||
| High Light: | 60T Industrial Electric Winch,0.5T Multi Angle Industrial Electric Winch,JK0.5 Electric Winch With Wireless Remote |
||
Wireless Remote Industrial Electric Winch Multi - Angle Lifting Heavy Objects
General description:
An electric winch is a small and lightweight lifting device that uses a drum to wrap a wire rope or chain to lift or pull heavy objects. It is also known as a winch. The hoist can lift heavy objects vertically, horizontally, or inclined. The winch is divided into three types: manual winch, electric winch and hydraulic winch. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building, and mine hoisting. Because of its easy operation, large amount of rope winding, and convenient displacement.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
| Items | Rated load | Rated speed | Rope capacity | Rope diameter | Motor | Power | Size | Weight |
| KN | m/min | m | mm | mm | kg | |||
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
JK series winch can be customzied Max. 60T according to your demands.
Advantages and Features:
Applications of winch:
Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal traction, cable traction or vertical lift.

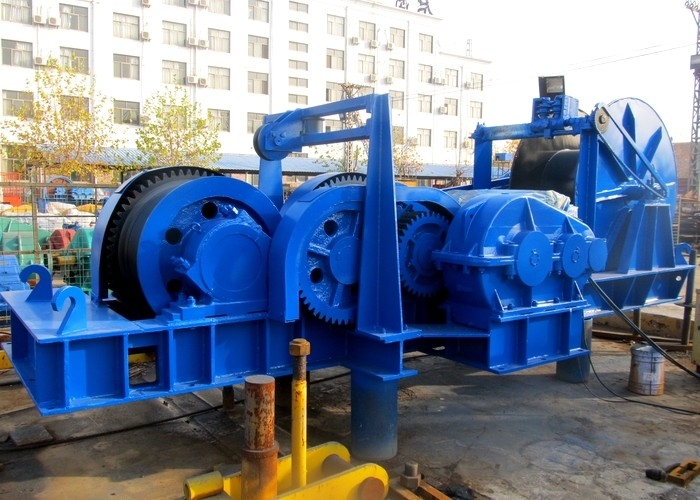

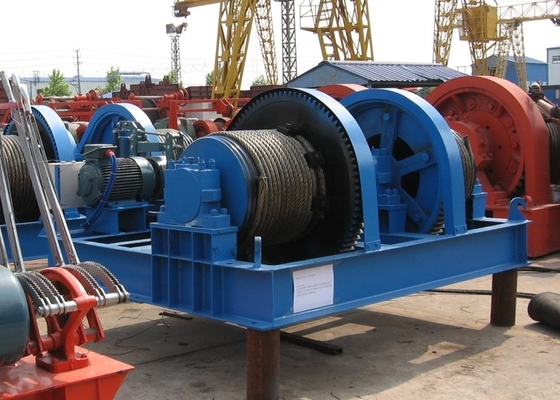

Winch Photos:
