ODM Electromagnetic Brake Electric Power Winch 22m/Min To 30m/Min

ODM Electromagnetic Brake Electric Power Winch 22m/Min To 30m/Min

  • ODM Electromagnetic Brake Electric Power Winch 22m/Min To 30m/Min
  • ODM Electromagnetic Brake Electric Power Winch 22m/Min To 30m/Min
  • ODM Electromagnetic Brake Electric Power Winch 22m/Min To 30m/Min
ODM Electromagnetic Brake Electric Power Winch 22m/Min To 30m/Min
Product Details:
Place of Origin: China
Brand Name: Santo
Certification: ISO
Model Number: JK JM JMM JKL
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 5000USD- 50000USD
Packaging Details: Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box.
Delivery Time: 15~45 WORKING DAYS
Payment Terms: L/C, D/A, T/T
Supply Ability: 3500SETS/YEAR
Contact Now
Detailed Product Description
Capacity: 0.5t~60t Rope Length: 50m~500m
Structure: Electric System Brake: Hydraulic Brake System
Rated Speed: As Demands Usage: Cable Pulling Machine, Carry Heavy Goods
Color: Customized
High Light:

Electromagnetic Brake Electric Power Winch


ODM Electric Power Winch 22m/Min


electric cable pulling winch 30m/Min

Electromagnetic Brake Electric Power Winch For Heavy Weight Materials Lifting


General description:


It is a small and lightweight lifting equipment that uses a drum to wind a wire rope or chain to lift or pull heavy objects. It is also called a winch. The hoist can lift heavy objects vertically, horizontally or obliquely. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building, and mine hoisting. Because of its easy operation, large amount of rope winding, and convenient displacement.




Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.


Items Rated load Rated speed Rope capacity Rope diameter Motor Power Size Weight
KN m/min m mm mm kg
JK0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945*996*570 500
JK2 20 24 150 13 Y132M-4 7.5 945*996*570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325*1335*840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900*1738*985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900*1620*985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250*2500*1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533*1985*1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100


JK series winch can be customzied Max. 60T according to your demands.




1. Fast speed, High working efficiency.
2. Final drive gears are made with heat-treated carbon steel offering greater strength.
3. Precision needle bearing used in high-load areas offering lower friction level and longer life.
4. High impact case providing weather resistance and protection for internal components.
5. Adjustable lifting or pulling speed for different usage environment.

6. Large drum rope capacity offer you a wide range of choice for the lifting height or pulling length.
7. Durable hook safety snap keeping the loads attached.


Applications of winch:


Electric winch is a kind of widely using machine in lifting machinery. It can lift heavy weight in the Construction Site and Port pier, also it can be the Tractive power in installing of the factories and mines.

It not only can be used independently, but also can work with other largescale and complex machine. It has been a necessary machine in the Construction Site and Port pier.

Electric winch can be used for horizontal towing, sloped pulling, or vertical lifting.




Our Company:

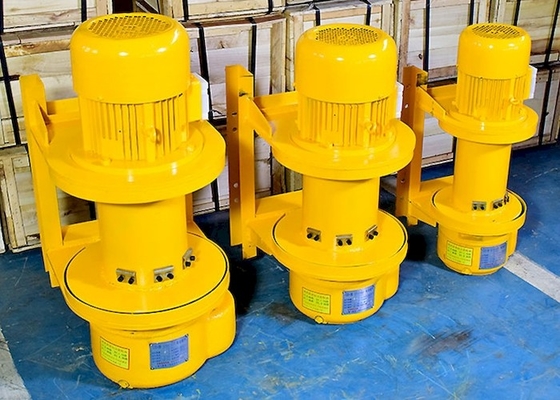

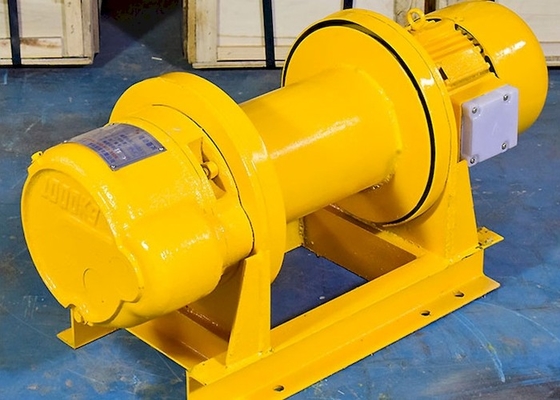

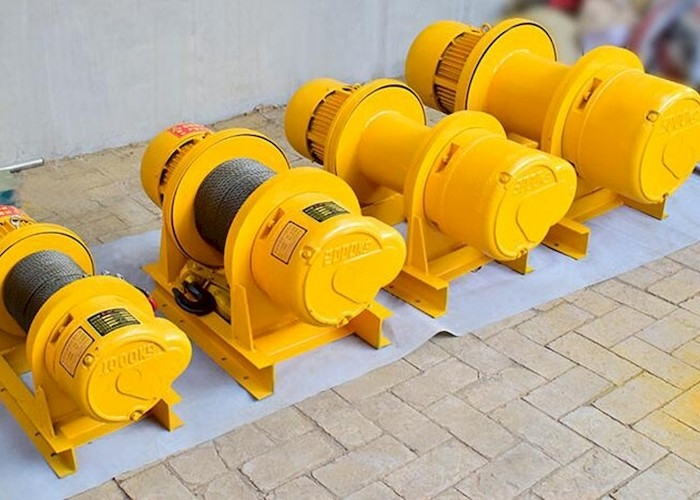

Winch Photos:



1591525167(winch 750).jpg



Free inquiry:


Dear friend, In order to saving your waiting time, it's better to send us inquiry with confirmation of the info below, then we can offer very quick.


1. Traction/Towing Capacity: __tons {Tips: 1 to 200 tons}
2. Rope length, __ m
3. Rope winding speed: __m/min {Tips: Medium and small tonnage 20-30m/min, Medium and large tonnage 8-10m/min}
4. Voltage: __ {Tips: 380V, 50Hz, 3-phase, AC, If it's not yours, please note}
5. Control ways: __ {Tips: control console, radio remote control}
6. Winch working mode: __ {Tips: horizontal towing, sloped pulling, or vertical lifting}


If possible, could you please send me a sketch of winch work in detail.

Please copy and fill the infomation with the inquiry, If any questions or any more request, welcome contact me anytime.
