| Place of Origin: | China |
| Brand Name: | Santo |
| Certification: | ISO |
| Model Number: | JK JM JMM JKL |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000USD- 50000USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~45 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3500SETS/YEAR |
| Capacity: | 0.5t~60t | Rope Length: | 50m~500m |
|---|---|---|---|
| Structure: | Electric System | Brake: | Hydraulic Brake System |
| Rated Speed: | As Demands | Usage: | Cable Pulling Machine, Carry Heavy Goods |
| Color: | Customized | ||
| High Light: | 100KN Heavy Duty Electric Rope Winch,5KN Heavy Duty Electric Rope Winch,Construction Mine Marine Drum Winch |
||
Heavy Duty Electric Winch Safe And Stable For In Construction Mine Marine
General description:
An electric winch is a small and lightweight lifting device that uses a drum to wrap a wire rope or chain to lift or pull heavy objects. It is also known as a winch. The hoist can lift heavy objects vertically, horizontally, or inclined. The winch is divided into three types: manual winch, electric winch and hydraulic winch. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building, and mine hoisting. Because of its easy operation, large amount of rope winding, and convenient displacement.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
| Items | Rated load | Rated speed | Rope capacity | Rope diameter | Motor | Power | Size | Weight |
| KN | m/min | m | mm | mm | kg | |||
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
JK series winch can be customzied Max. 60T according to your demands.
Applications of winch:
Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.
Advantages and Features:

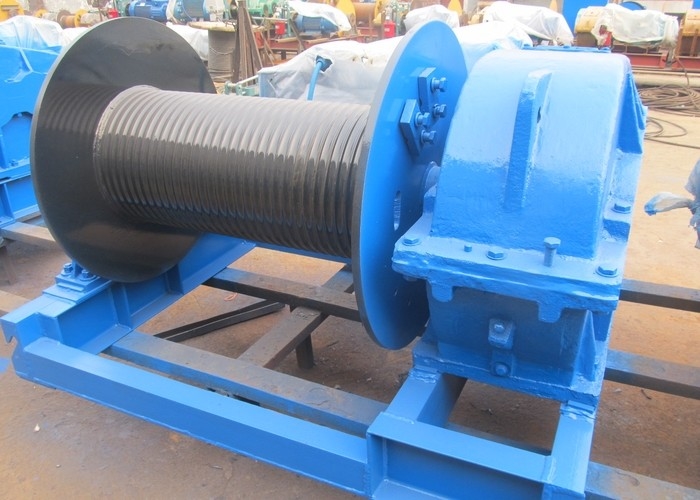

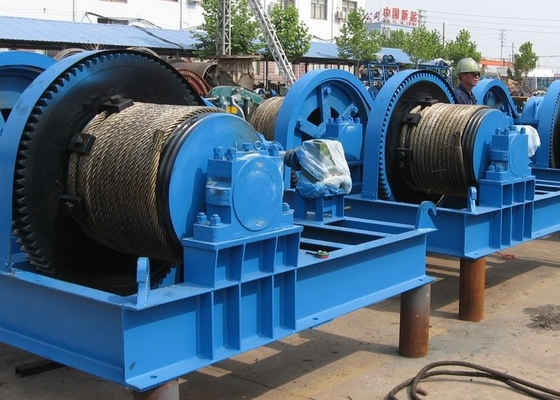

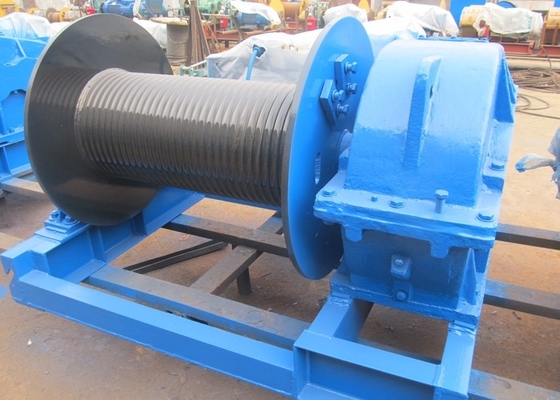

Winch Photos:
Free inquiry:
| Dear friend, In order to saving your waiting time, it's better to send us inquiry with confirmation of the info below, then we can offer very quick. | ||
|
1. Traction/Towing Capacity: __tons {Tips: 1 to 200 tons}
If possible, could you please send me a sketch of winch work in detail. |
||
| Please copy and fill the infomation with the inquiry, If any questions or any more request, welcome contact me anytime. |
