| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO |
| Model Number: | KPX, KPJ, KPT, KPC, KPD,KP, BWP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2500-6000/set |
| Packaging Details: | LCL container shipping by wooden case, nude for FCL container, or as your requirements. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000 SETS/YEAR |
| Product Name: | Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley | Color: | Customized |
|---|---|---|---|
| Application: | Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling | Power Supply: | Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains |
| Warranty: | 1 Year | Wheel: | Four-wheel |
| Load Capacity: | Custom From 1t To 300t | Size: | Customized Size |
| Running Speed: | 0-25 M/min(Adjustable) | Brake: | Electric Motor Brake |
| High Light: | 25m/Min Electric Transfer Cart,Electric Transfer Cart For Warehouse,SANTO Warehouse Transfer Cart |
||
Durable Battery Powered Electric Transfer Carts For Warehouse Transportation
Product Description:
transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy and warehouse to frequently transport or cooperate with cranes to transfer goods.
Technical Parameters:
| Capacity(t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | |
|---|---|---|---|---|---|---|---|---|
| PLATFORM SIZE (MM) | LENGTH | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 |
| WIDTH | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | |
| HEIGHT | 550 | 550 | 580 | 650 | 700 | 850 | 900 | |
| WORKING SPEED (M/MIN) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | |
| BOTTOM OF BOARD SIZE (MM) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | |
| WHEEL BASE A(MM) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | |
| WHEEL BACK DISTANCE C(MM) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| POWER | 380V 3PH OR BATTERY | |||||||
Features:
Applications for battery powered transport cart:
Assembly line: Due to the advantages of no cables, it is mainly used for assembly lines, which can realize straight rail, S-shaped rail, U-shaped rail, C-shaped rail, arc-shaped rail, 90-degree turning rail, beam, etc.
Metallurgical industry: The trolley has the functions of stable operation and stepless speed regulation, and is often used for transporting ladle, aluminum ladle, lead ladle, steel slag, etc.
Warehouse transportation: The vehicle is used to transfer heavy objects from one warehouse to another or from warehouse to factory (such as paper roll transfer in paper mill, transfer of large parcels), it can travel on various tracks. Fully automatic operation, greatly improving work efficiency.

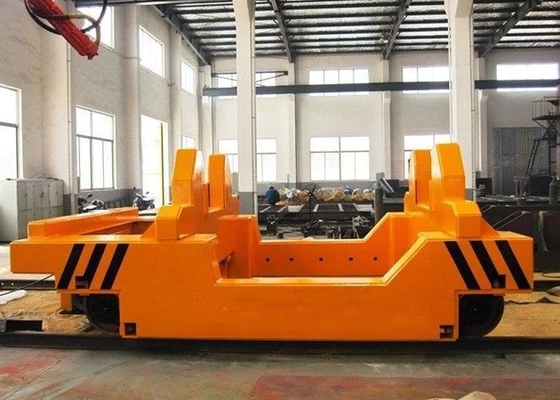

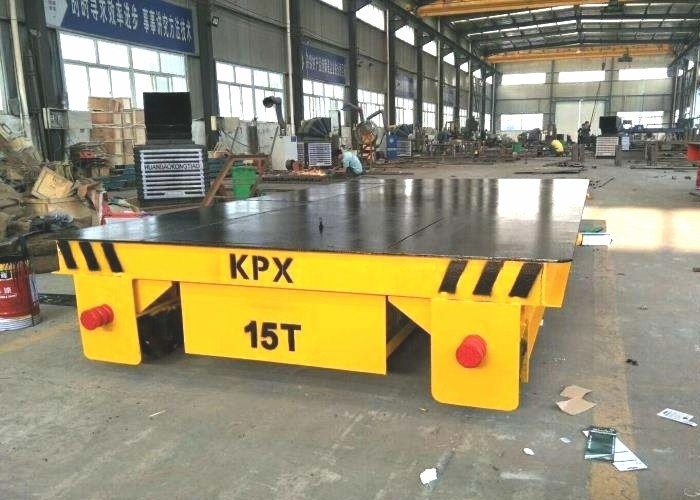

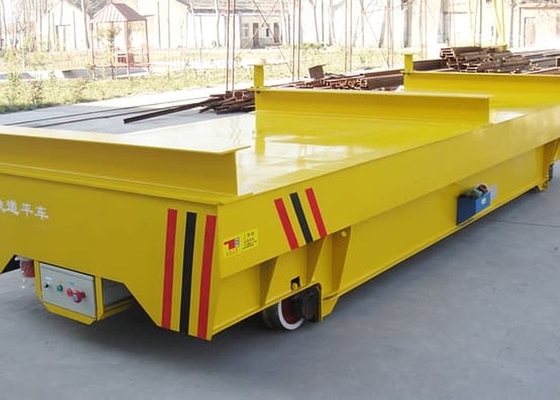

Electric Transfer Cart Photos:
