| Place of Origin: | China |
| Brand Name: | Santo |
| Model Number: | KPX |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000USD~50000USD |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000SETS/YEAR |
| Name: | Rail Transfer Cart | Size: | Customzed Size |
|---|---|---|---|
| Satety Features: | Warning Alarm | Control Methoed: | Wireless Remote |
| Usage: | Material Transfer | Brake: | Electric Motor Brake |
| Capacity: | 5~75t | Color: | Customized |
| High Light: | Electric Transfer Cart On Rail 10Ton,Customized Heavy Duty Transfer Cart,QU100 100 Ton Transfer Cart |
||
Customized Loading Capacity Electric Transfer Cart On Rail Heavy Duty 10t To 300t
General description:
Electric transport cart is powered by batterry. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form tracks or curved tracks. We can also fit hydraulic lifting system if needed.
Specification:
| Model | KPX-10t | KPX-25t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | ||||||||
| Rated load(t) | 10 | 25 | 63 | 80 | 100 | 150 | ||||||||
| Table size(mm) | Length | 3600 | 4500 | 5600 | 6000 | 6500 | 10000 | |||||||
| Width | 2000 | 2200 | 2500 | 2600 | 2800 | 3000 | ||||||||
| Height | 500 | 600 | 700 | 800 | 900 | 1200 | ||||||||
| Wheel base(mm) | 2600 | 3200 | 4300 | 4700 | 4900 | 7000 | ||||||||
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | ||||||||
| Wheel Diameter(mm) | Ф300 | Ф400 | Ф600 | Ф600 | Ф600 | Ф600 | ||||||||
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 8 | ||||||||
| Ground Clearance (mm) | 50 | 50 | 75 | 75 | 75 | 75 | ||||||||
| Running speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | ||||||||
| Motor Power | 1.6 | 3 | 6.3 | 8 | 10 | 15 | ||||||||
| Battery capacity(Ah) | 160 | 250 | 400 | 400 | 440 | 600 | ||||||||
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | ||||||||
| Running Time when full load | 4.8 | 4 | 3 | 3.6 | 3.2 | 2.9 | ||||||||
| Running Distance for one Charge(km) | 7.2 | 4.8 | 3.6 | 4.3 | 3.8 | 3.2 | ||||||||
| Max Wheel Load(KN) | 42.6 | 94.5 | 221.4 | 278.4 | 343.8 | 265.2 | ||||||||
| Reference Weight(t) | 4.2 | 6.5 | 10.8 | 12.8 | 14.6 | 26.8 | ||||||||
| Recommended Rail Model | P18 | P38 | P50 | P50 | QU100 | QU100 | ||||||||
NOTES:
Load capacity, table size, rail gauge, speed can custom per client's demand.
Control way: push button pendant, remote control, operator platform mounted on cars.
Provide the optimized solution according to actual application condition.
Advantages :
1. Powered by battery.
2. DC current: Stably and smoothly start or stop with small crash to reducer.
3. Offer more security and flexibility.
2. Long travel distance.
3. The track laying low.
4. The frequency of use is not high, suitable for long distance transportation.
But the battery need regular maintenance, battery life as for about 2.5years, and use of the limited time.
Application:
The electric flat car is a kind of electric rail transportation vehicle in the factory, which solves the product transportation between the spans in the factory. Also known as rail flat car, cross flat car, trolley, electric flat car. It has the advantages of simple structure, convenient use, easy maintenance, large carrying capacity and less pollution.
Electric flat cars are widely used in machine manufacturing and metallurgical factories, as the interior of the workshop with cranes to transport heavy objects over the span. The track flatbed truck has low height, strengthened table, easy modification and convenient maintenance.
How to Choose a Suitable Transfer Cart:
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley, please kindly providing the following inforamtion:
Transfer or handling what matrial/cargo?
What capacity do you need?
The trasnfer trolley is running on rails or ground(floor)?
Your requirment for table size:length,width and height?
How about the running distance?
How many working hours in per day?

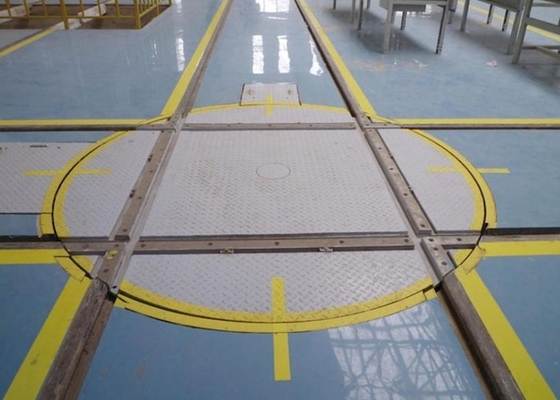

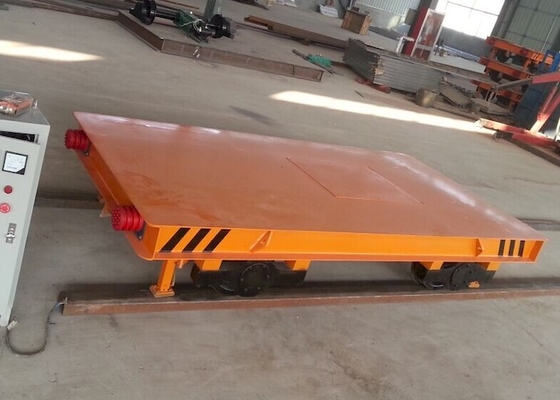

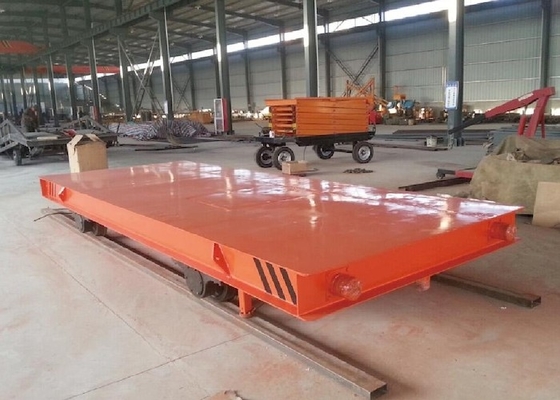

Picture show:
