| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO |
| Model Number: | KPX, KPJ, KPT, KPC, KPD,KP, BWP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2500-6000/set |
| Packaging Details: | LCL container shipping by wooden case, nude for FCL container, or as your requirements. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000 SETS/YEAR |
| Product Name: | Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley | Color: | Customized |
|---|---|---|---|
| Application: | Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling | Power Supply: | Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains |
| Warranty: | 1 Year | Wheel: | Four-wheel |
| Load Capacity: | Custom From 1t To 300t | Size: | Customized Size |
| Running Speed: | 0-25 M/min(Adjustable) | Brake: | Electric Motor Brake |
| High Light: | Heavy Duty On Rail Transfer Cart,On Rail Transfer Cart 10Ton,300Ton Battery Operated Transfer Trolley |
||
Heavy Duty Battery Powered On Rail Transfer Cart Trolley Vehicle For Coil Die Material Transportation 10 Ton To 300 Ton
Product Description:
Battery powered rail-mounted transfer carts are manufactured in capacities ranging from 10 to 300 tons. They are battery powered and run on rails. The transfer carts move loads of all types at ground level, for all industries and a huge variety of applications. This transfer machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
These heavy-duty modular transfer carts are available in a wide range of capacities and dimensions to suit any requirement. They are equipped with all the safety devices needed for ground-level machinery movement.
Specification:
| Model | KPX-10t | KPX-25t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | ||||||||
| Rated load(t) | 10 | 25 | 63 | 80 | 100 | 150 | ||||||||
| Table size(mm) | Length | 3600 | 4500 | 5600 | 6000 | 6500 | 10000 | |||||||
| Width | 2000 | 2200 | 2500 | 2600 | 2800 | 3000 | ||||||||
| Height | 500 | 600 | 700 | 800 | 900 | 1200 | ||||||||
| Wheel base(mm) | 2600 | 3200 | 4300 | 4700 | 4900 | 7000 | ||||||||
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | ||||||||
| Wheel Diameter(mm) | Ф300 | Ф400 | Ф600 | Ф600 | Ф600 | Ф600 | ||||||||
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 8 | ||||||||
| Ground Clearance (mm) | 50 | 50 | 75 | 75 | 75 | 75 | ||||||||
| Running speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | ||||||||
| Motor Power | 1.6 | 3 | 6.3 | 8 | 10 | 15 | ||||||||
| Battery capacity(Ah) | 160 | 250 | 400 | 400 | 440 | 600 | ||||||||
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | ||||||||
| Running Time when full load | 4.8 | 4 | 3 | 3.6 | 3.2 | 2.9 | ||||||||
| Running Distance for one Charge(km) | 7.2 | 4.8 | 3.6 | 4.3 | 3.8 | 3.2 | ||||||||
| Max Wheel Load(KN) | 42.6 | 94.5 | 221.4 | 278.4 | 343.8 | 265.2 | ||||||||
| Reference Weight(t) | 4.2 | 6.5 | 10.8 | 12.8 | 14.6 | 26.8 | ||||||||
| Recommended Rail Model | P18 | P38 | P50 | P50 | QU100 | QU100 | ||||||||
NOTES:
1. Load capacity, table size, rail gauge, speed can custom per client's demand.
2. Control way: push button pendant, remote control, operator platform mounted on cars.
3. Provide the optimized solution according to actual application condition.
There are two main types of transfer carts according to movement type:
Steerable transfer carts on wheels:
These move in any direction.
Available in battery powered version.
Transfer carts on rails:
These move along a straight rail track line.
Available in battery-powered or electric versions, with movement via a cable winder or power line.
Battery Powered Rail Mounted Transfer Cart
This kind of transfer carts are powered by battery, its operation is so easy. KPX series's battery powered flat cart can be used both on the "s"and arc-shaped railways. They can also be used in the ferry condition and flammable, explosive environment. It is suitable to be used in the long distance transportation and low using frequency.Additionally , About the flat cart, we have professional team to study the item, Attentively manufacturing, keeping on improving and elaborately serving to make our customers satisfied, it has been more than 12 years. up to now, the largest capacity reach to 300t.
Advantages:
1. Powered by battery.
2. DC current: Stably and smoothly start or stop with small crash to reducer.
3. Offer more security and flexibility.
2. Long travel distance.
3. The track laying low.
4. The frequency of use is not high, suitable for long distance transportation.

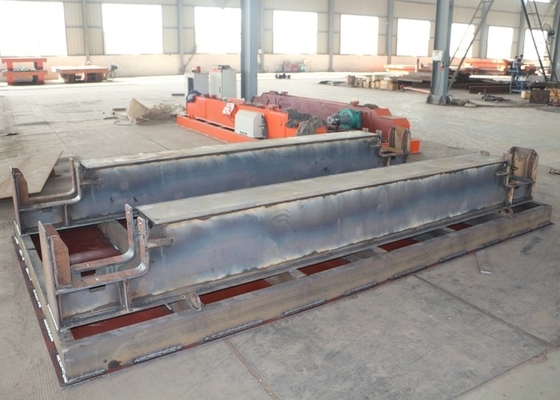

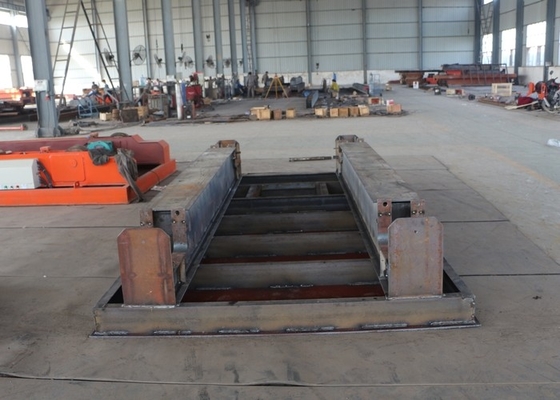

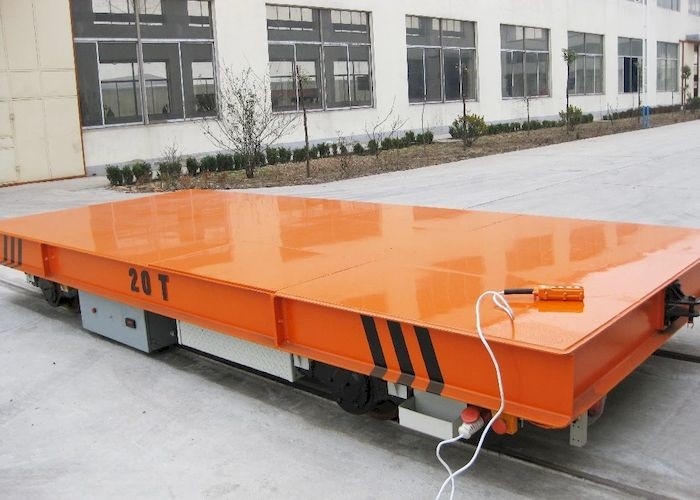

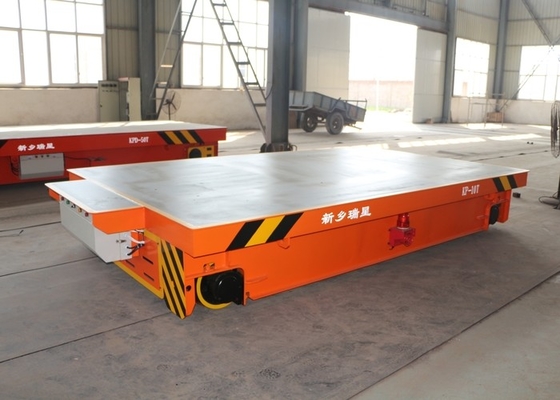

Picture show:
How to Choose a Suitable Transfer Cart:
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley, please kindly providing the following inforamtion:
