| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO |
| Model Number: | KPX, KPJ, KPT, KPC, KPD,KP, BWP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2500-6000/set |
| Packaging Details: | LCL container shipping by wooden case, nude for FCL container, or as your requirements. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000 SETS/YEAR |
| Product Name: | Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley | Color: | Customized |
|---|---|---|---|
| Application: | Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling | Power Supply: | Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains |
| Warranty: | 1 Year | Wheel: | Four-wheel |
| Load Capacity: | Custom From 1t To 300t | Size: | Customized Size |
| Running Speed: | 0-25 M/min(Adjustable) | Brake: | Electric Motor Brake |
| High Light: | 15T Material Transfer Carts,ODM Low Noise Material Transfer Carts,Four Wheel material transfer trolley |
||
Low Noise No Pollution 15t Electric Transfer Cart For Transfer Materials
Product description:
Electric flatbed vehicles are generally used in harsh environments, requiring motors and batteries to be durable, and can adapt to dust, high temperature, rough roads and other environments. The requirements for frame materials and welding processes are high, and the thickness of the frame pipes is more than 2.5. Using plasma shielded welding, the welding density is high, the tensile strength of the weld is high, and it is not easy to break. Can adapt to the requirements of the factory operating environment.
Features:
1. Low height, heavy duty, safe security
2. Flexibility, high using frequency
3. Long using time, long service life
4. No limitation of running distance
5. With lifting holes, convenient to shipment
6. Stable start, big starting power
7. Suitable for bad environment, high temperature, explosion environment
8. Convenient for operation and maintaince
Technical Parameters:
|
Model |
KPDZ/S-5t |
KPDZ/S-10t |
KPDZ/S-25t |
KPDZ/S-30t |
KPDZ/S-40t |
KPDZ/S-63t |
|
|---|---|---|---|---|---|---|---|
|
Rated load |
5 |
10 |
25 |
30 |
40 |
63 |
|
|
Table size |
Length(L) |
3500 |
3600 |
4500 |
4500 |
5000 |
5600 |
|
Width(W) |
2000 |
2000 |
2200 |
2200 |
2500 |
2500 |
|
|
Height(H) |
450 |
500 |
600 |
600 |
650 |
750 |
|
|
Wheel Base |
2500 |
2600 |
3200 |
3200 |
3800 |
4300 |
|
|
Rail Inner Gauage |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
|
|
Wheel Diameter |
300 |
300 |
400 |
400 |
500 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
Ground Clearance |
50 |
50 |
50 |
50 |
50 |
75 |
|
|
Running Speed |
0-25 |
0-25 |
0-20 |
0-20 |
0-20 |
0-20 |
|
|
Motor Power |
1.2 |
1.6 |
3 |
3.5 |
4 |
6.3 |
|
|
Transformer Power |
5 |
5 |
6.8 |
10 |
10 |
20 |
|
|
Transformer Quatity |
1 |
1 |
1 |
1 |
1 |
1 |
|
|
Running Distance |
80 |
80 |
80 |
80 |
60 |
50 |
|
|
Max Wheel Load |
25.8 |
42.6 |
94.5 |
110.4 |
142.8 |
221.4 |
|
|
Reference Weight |
3.6 |
4.2 |
6.5 |
6.8 |
7.6 |
10.8 |
|
|
Recommended Rail |
P18 |
P18 |
P38 |
P38 |
P43 |
P50 |
|
Application of electric transporter:
Assembly line: Due to the advantages of no cables, it is mainly used in assembly lines, which can realize straight rails, S-shaped rails, U-shaped rails, C-shaped rails, arc-shaped rails, 90-degree turning rails, cross rails, etc.
Metallurgical industry: The trolley has the functions of smooth running and stepless speed regulation, and is often used to transport ladle, aluminum ladle, lead ladle, steel slag, etc.
Warehouse transportation: The vehicle is used to transfer heavy objects from one warehouse to another or from warehouse to factory (such as paper roll transfer in paper mill, transfer of large packages), it can travel on various tracks. Automatic operation, greatly improve work efficiency.
Ship industry: Due to its large carrying capacity, trolleys are used in the ship industry to transport workpieces and maintenance tools (propellers, motors, etc.).
The trolley is also suitable for transshipment of cargo and containers in a terminal or port. If necessary, hydraulic lifting devices, weighing devices and automatic devices can be added.
Workshop: The car is mainly used in machining workshops, manufacturing workshops, and mold workshops for handling and processing parts, finished products, castings, etc.
Spray booth: The trolley should be on fire while working. In order to avoid explosion, explosion-proof measures should be taken for motors, reducers, electrical appliances, pendants, alarms, etc.

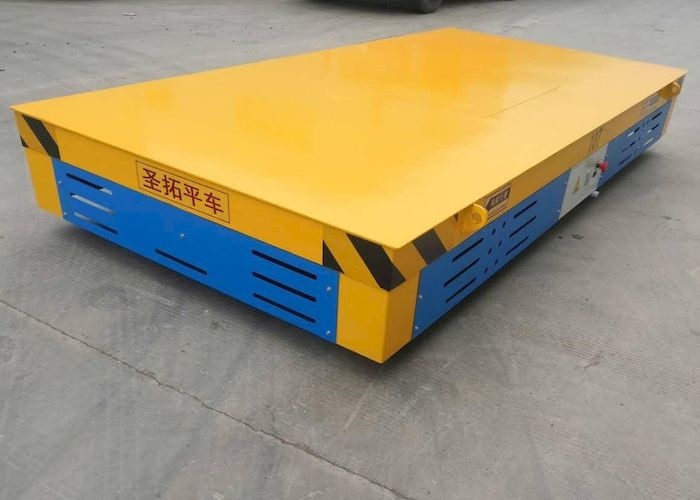

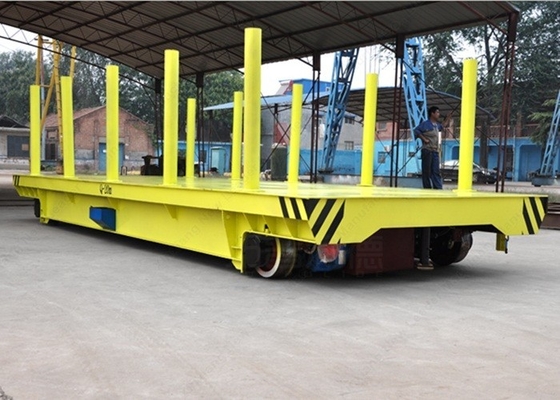

Photos:
