5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser

5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser

  • 5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser
  • 5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser
  • 5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser
  • 5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser
5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser
Product Details:
Place of Origin: China
Brand Name: SANTO
Certification: ISO
Model Number: KPX, KPJ, KPT, KPC, KPD,KP, BWP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2500-6000/set
Packaging Details: LCL container shipping by wooden case, nude for FCL container, or as your requirements.
Delivery Time: 15~30 WORKING DAYS
Payment Terms: T/T, L/C
Supply Ability: 3000 SETS/YEAR
Contact Now
Detailed Product Description
Product Name: Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley Color: Customized
Application: Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling Power Supply: Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains
Warranty: 1 Year Wheel: Four-wheel
Load Capacity: Custom From 1t To 300t Size: Customized Size
Running Speed: 0-25 M/min(Adjustable) Brake: Electric Motor Brake
High Light:

30Ton Electric Transfer Cart

,

15Ton electric transfer cart

,

Cable Drum Powered Industrial Traverser

Electric Transfer Cart Cable Drum Powered Industrial Traverser for Facility Assembly Line 5 ton 10 ton 15 ton 30 ton



Product Description

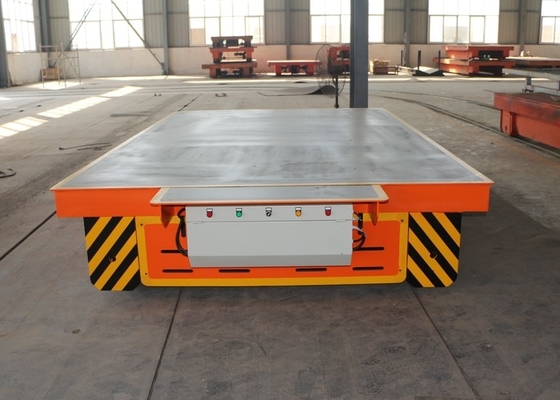

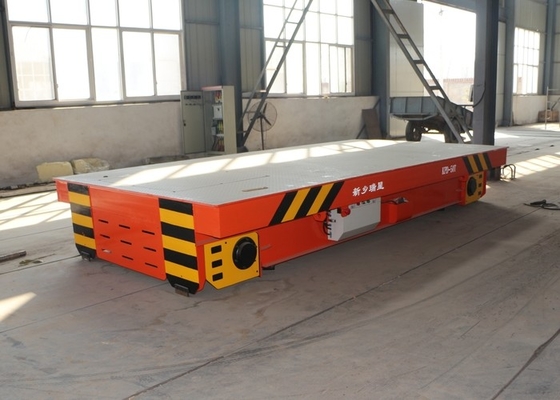

Electric transfer cart is a kind of transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy and warehouse to frequently transport or cooperate with cranes to transfer goods.



Electric Transfer Carts are mounted on steel rail for shuttling along a fixed path. They can be divided in different types, as below:


1. KPT type is Towed Transfer Cart, powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter.
2. KPJ type is Cable Reel Transfer Cart, powered by the cable from the cable reel. With the cable reel, the moving distance is improved to 200 meter compared with the KPT type.
3. KPX type is Battery Transfer Cart, powered by the storage battery. Without the cable, this kind of transfer cart is more flexible and safe. While the capacity and the duty group are all affected by the storage battery. Especially, the price and the life span of the battery is also an important issue.
4. KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.

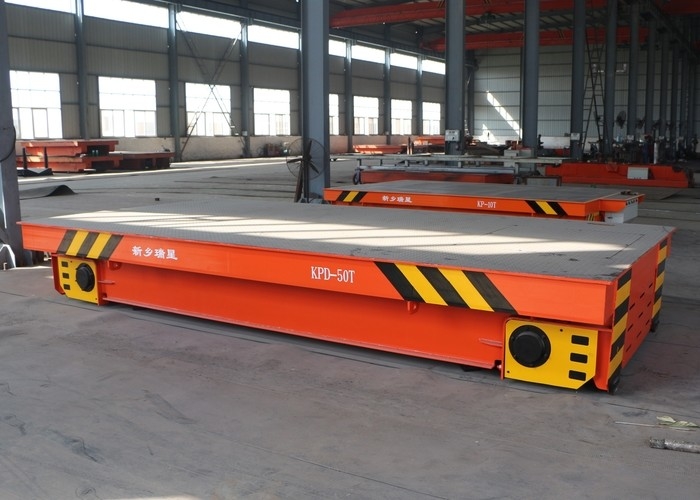

5. KPD type is powered by the low voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type; the system is also more complicated and expensive.





Parameters:



Capacity(t) 6 10 16 25 40 63 100
PLATFORM SIZE (MM) LENGTH 3600 3600 4000 4500 5000 5600 6300
WIDTH 2000 2000 2200 2200 2500 2500 2800
HEIGHT 550 550 580 650 700 850 900
WORKING SPEED (M/MIN) 30 30 30 30 25 25 20
BOTTOM OF BOARD SIZE (MM) 50 50 50 60 60 60 60
WHEEL BASE A(MM) 2000 2000 2200 2500 2800 3200 3600
WHEEL BACK DISTANCE C(MM) 1435 1435 1435 1435 1435 1435 1435
POWER 380V 3PH OR BATTERY



5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser 0



Features:



5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser 1

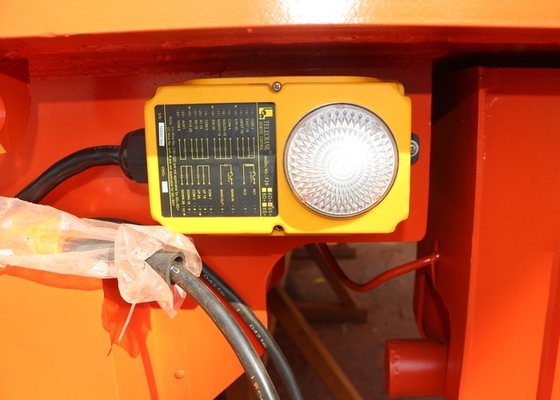

Sound and light alarm lamp
Stop automatically when pedestrian or obstacle is detected.
Emergency stop button
Limit switches and buffers on both sides.
The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test.
With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices.
Optional wireless remote control operation
