| Place of Origin: | China |
| Brand Name: | Santo |
| Model Number: | KPX |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000USD~50000USD |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000SETS/YEAR |
| Name: | Rail Transfer Cart | Size: | Customzed Size |
|---|---|---|---|
| Satety Features: | Warning Alarm | Control Methoed: | Wireless Remote |
| Usage: | Material Transfer | Brake: | Electric Motor Brake |
| Capacity: | 5~75t | Color: | Customized |
| High Light: | KPX 10t battery powered transfer cart,KPX 300t battery powered transfer cart,4 Wheel Rail transfer cart |
||
Battery Powered On Rail Transfer Cart Trolley Heavy Duty 10 Ton To 300 Ton
General description:
Battery powered rail-mounted transfer carts are manufactured in capacities ranging from 10 to 300 tons. They are battery powered and run on rails. The transfer carts move loads of all types at ground level, for all industries and a huge variety of applications. This transfer machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
These heavy-duty modular transfer carts are available in a wide range of capacities and dimensions to suit any requirement. They are equipped with all the safety devices needed for ground-level machinery movement.
There are two main types of transfer carts, according to movement type
- Steerable transfer carts on wheels:
These move in any direction.
Available in battery powered version.
- Transfer carts on rails:
These move along a straight rail track line.
Available in battery-powered or electric versions, with movement via a cable winder or power line.
Specification:
| Model | KPX-10t | KPX-25t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | ||||||||
| Rated load(t) | 10 | 25 | 63 | 80 | 100 | 150 | ||||||||
| Table size(mm) | Length | 3600 | 4500 | 5600 | 6000 | 6500 | 10000 | |||||||
| Width | 2000 | 2200 | 2500 | 2600 | 2800 | 3000 | ||||||||
| Height | 500 | 600 | 700 | 800 | 900 | 1200 | ||||||||
| Wheel base(mm) | 2600 | 3200 | 4300 | 4700 | 4900 | 7000 | ||||||||
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | ||||||||
| Wheel Diameter(mm) | Ф300 | Ф400 | Ф600 | Ф600 | Ф600 | Ф600 | ||||||||
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 8 | ||||||||
| Ground Clearance (mm) | 50 | 50 | 75 | 75 | 75 | 75 | ||||||||
| Running speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | ||||||||
| Motor Power | 1.6 | 3 | 6.3 | 8 | 10 | 15 | ||||||||
| Battery capacity(Ah) | 160 | 250 | 400 | 400 | 440 | 600 | ||||||||
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | ||||||||
| Running Time when full load | 4.8 | 4 | 3 | 3.6 | 3.2 | 2.9 | ||||||||
| Running Distance for one Charge(km) | 7.2 | 4.8 | 3.6 | 4.3 | 3.8 | 3.2 | ||||||||
| Max Wheel Load(KN) | 42.6 | 94.5 | 221.4 | 278.4 | 343.8 | 265.2 | ||||||||
| Reference Weight(t) | 4.2 | 6.5 | 10.8 | 12.8 | 14.6 | 26.8 | ||||||||
| Recommended Rail Model | P18 | P38 | P50 | P50 | QU100 | QU100 | ||||||||
Advantages :
1. Powered by battery.
2. DC current: Stably and smoothly start or stop with small crash to reducer.
3. Offer more security and flexibility.
2. Long travel distance.
3. The track laying low.
4. The frequency of use is not high, suitable for long distance transportation.
But the battery need regular maintenance, battery life as for about 2.5years, and use of the limited time.

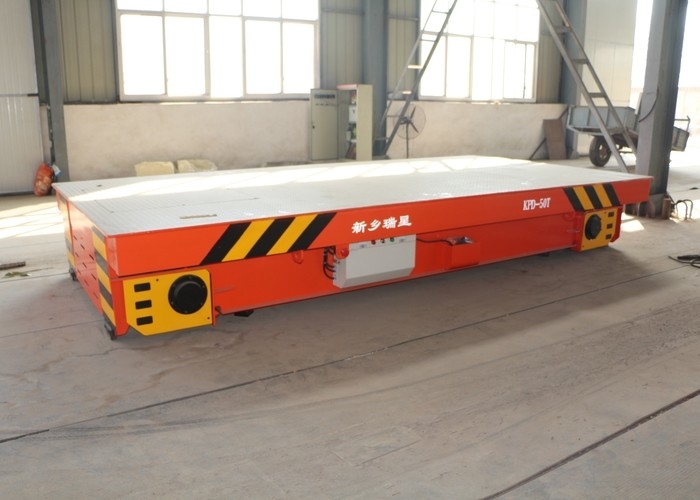

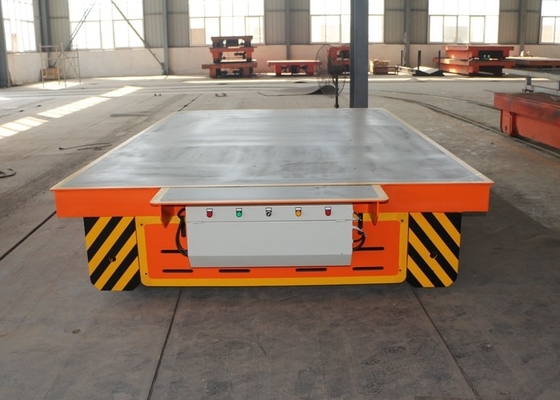

picture show:
