| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO |
| Model Number: | KPX, KPJ, KPT, KPC, KPD,KP, BWP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2500-6000/set |
| Packaging Details: | LCL container shipping by wooden case, nude for FCL container, or as your requirements. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000 SETS/YEAR |
| Product Name: | Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley | Color: | Customized |
|---|---|---|---|
| Application: | Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling | Power Supply: | Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains |
| Warranty: | 1 Year | Wheel: | Four-wheel |
| Load Capacity: | Custom From 1t To 300t | Size: | Customized Size |
| Running Speed: | 0-25 M/min(Adjustable) | Brake: | Electric Motor Brake |
| High Light: | Battery Powered Electric Transfer Cart,SANTO Steerable Electric Transfer Cart,25m/min steerable transfer cart |
||
Battery Powered Steerable Electric Transfer Carts For Facility Assembly Line
Product Description:
transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy and warehouse to frequently transport or cooperate with cranes to transfer goods.
Technical Parameters:
| Capacity(t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | |
|---|---|---|---|---|---|---|---|---|
| PLATFORM SIZE (MM) | LENGTH | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 |
| WIDTH | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | |
| HEIGHT | 550 | 550 | 580 | 650 | 700 | 850 | 900 | |
| WORKING SPEED (M/MIN) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | |
| BOTTOM OF BOARD SIZE (MM) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | |
| WHEEL BASE A(MM) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | |
| WHEEL BACK DISTANCE C(MM) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| POWER | 380V 3PH OR BATTERY | |||||||
Features:
Application:
The electric flat car is a kind of electric rail transportation vehicle in the factory, which solves the transportation of products between the spans in the factory. Also known as rail flat car, cross flat car, trolley, electric flat car. It has the advantages of simple structure, convenient use, easy maintenance, large carrying capacity and less pollution.
Electric flat cars are widely used in machine manufacturing and metallurgical factories, as the interior of the workshop with cranes to transport heavy objects over the span. The track flatbed truck has low height, strengthened table, easy modification and convenient maintenance.

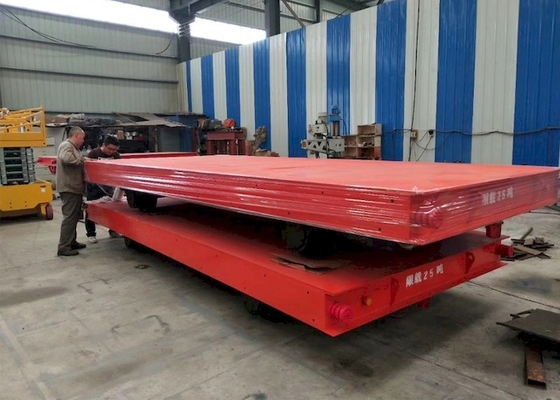

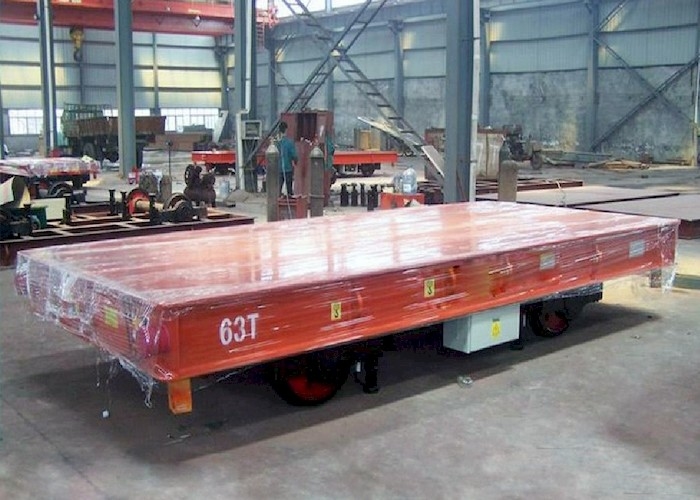

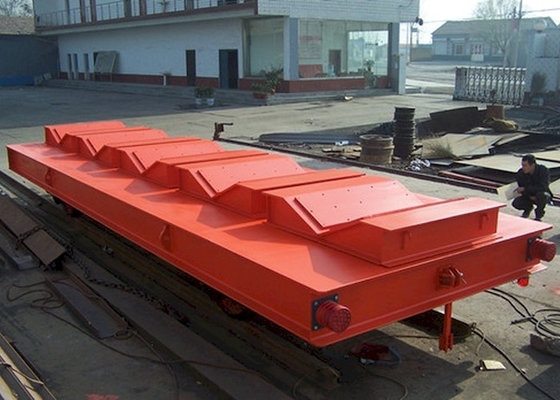

Electric Transfer Cart Photos:
