| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO |
| Model Number: | KPX, KPJ, KPT, KPC, KPD,KP, BWP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2500-6000/set |
| Packaging Details: | LCL container shipping by wooden case, nude for FCL container, or as your requirements. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000 SETS/YEAR |
| Product Name: | Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley | Color: | Customized |
|---|---|---|---|
| Application: | Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling | Power Supply: | Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains |
| Warranty: | 1 Year | Wheel: | Four-wheel |
| Load Capacity: | Custom From 1t To 300t | Size: | Customized Size |
| Running Speed: | 0-25 M/min(Adjustable) | Brake: | Electric Motor Brake |
| High Light: | QU100 Rail Electric Transfer Cart,P50 Rail Electric Transfer Cart,Adjustable P18 Rail Transfer Cart |
||
Rail Electric Transfer Cart 10 Ton To 300 Ton For Material Transportation
Product Description:
Rail transfer vehicles for heavy steel plate transportation are widely used in steel mills to transport steel plates or steel structures, steel coils, etc. The rail transfer vehicle is controlled by wireless remote control and hand control. There are battery power supply, cable reel or cable reel power supply, low voltage rail power supply, bus power supply, diesel engine power supply and other power supply methods for customers to choose. Rail transfer vehicles are usually powered by maintenance-free lead-acid batteries. The battery-powered rail transfer vehicles have no travel distance restrictions, so the rail transfer vehicles can transport steel from one bay to another, or from the production line to the warehouse. Due to the large amount of dust in steel mills, we take dust-proof measures for battery boxes, motors, and electric control boxes. We can also provide customers with some free accessories for future use, such as emergency stop button, warning light, car handle, power meter, etc. We can design rail transfer vehicles with different requirements from 1-300 tons' load capacity according to different customers.
Specification:
| Model | KPX-10t | KPX-25t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | ||||||||
| Rated load(t) | 10 | 25 | 63 | 80 | 100 | 150 | ||||||||
| Table size(mm) | Length | 3600 | 4500 | 5600 | 6000 | 6500 | 10000 | |||||||
| Width | 2000 | 2200 | 2500 | 2600 | 2800 | 3000 | ||||||||
| Height | 500 | 600 | 700 | 800 | 900 | 1200 | ||||||||
| Wheel base(mm) | 2600 | 3200 | 4300 | 4700 | 4900 | 7000 | ||||||||
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | ||||||||
| Wheel Diameter(mm) | Ф300 | Ф400 | Ф600 | Ф600 | Ф600 | Ф600 | ||||||||
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 8 | ||||||||
| Ground Clearance (mm) | 50 | 50 | 75 | 75 | 75 | 75 | ||||||||
| Running speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | ||||||||
| Motor Power | 1.6 | 3 | 6.3 | 8 | 10 | 15 | ||||||||
| Battery capacity(Ah) | 160 | 250 | 400 | 400 | 440 | 600 | ||||||||
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | ||||||||
| Running Time when full load | 4.8 | 4 | 3 | 3.6 | 3.2 | 2.9 | ||||||||
| Running Distance for one Charge(km) | 7.2 | 4.8 | 3.6 | 4.3 | 3.8 | 3.2 | ||||||||
| Max Wheel Load(KN) | 42.6 | 94.5 | 221.4 | 278.4 | 343.8 | 265.2 | ||||||||
| Reference Weight(t) | 4.2 | 6.5 | 10.8 | 12.8 | 14.6 | 26.8 | ||||||||
| Recommended Rail Model | P18 | P38 | P50 | P50 | QU100 | QU100 | ||||||||
NOTES:
1. Load capacity, table size, rail gauge, speed can custom per client's demand.
2. Control way: push button pendant, remote control, operator platform mounted on cars.
3. Provide the optimized solution according to actual application condition.
Advantages:
1. Powered by battery.
2. DC current: Stably and smoothly start or stop with small crash to reducer.
3. Offer more security and flexibility.
2. Long travel distance.
3. The track laying low.
4. The frequency of use is not high, suitable for long distance transportation.

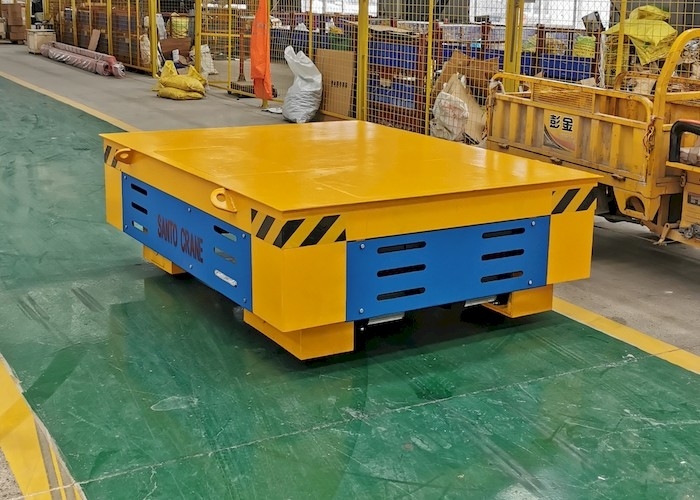

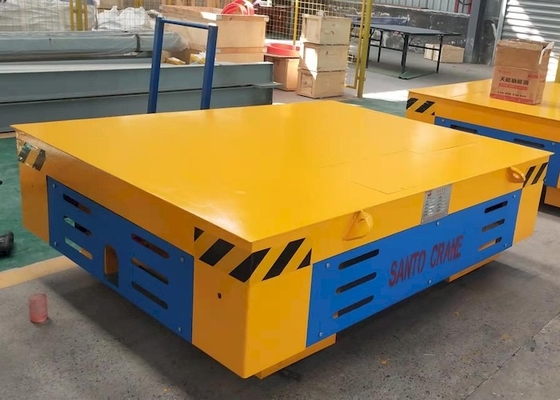

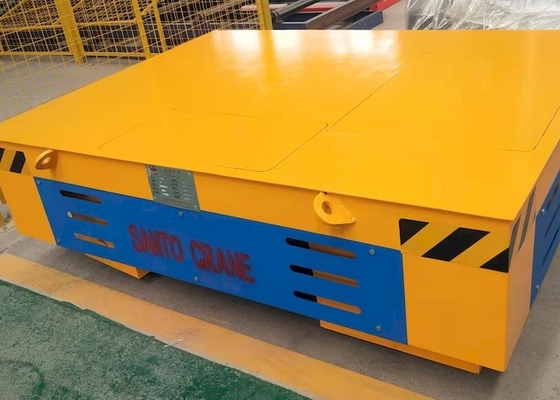

Picture show:
How to Choose a Suitable Transfer Cart:
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley, please kindly providing the following inforamtion:
