| Place of Origin: | China |
| Brand Name: | Santo |
| Certification: | ISO |
| Model Number: | JK JM JMM JKL |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 5000USD- 50000USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~45 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3500SETS/YEAR |
| Capacity: | 0.5t~60t | Rope Length: | 50m~500m |
|---|---|---|---|
| Structure: | Electric System | Brake: | Hydraulic Brake System |
| Rated Speed: | Standard And Customizable | Usage: | Cable Pulling Machine, Carry Heavy Goods |
| Color: | Customized | ||
| High Light: | High Safety 10 ton electric winch,Santo 10 ton electric winch,Industrial 1 ton electric winch |
||
1t - 10t High Safety Industrial Electric Winch Component Of Lifting Machinery
General description:
It is a small and lightweight lifting device that uses a drum to wrap a wire rope or chain to lift or pull heavy objects. It is also called a winch. The hoist can lift heavy objects vertically, horizontally or obliquely. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road construction, and mine hoisting. Because of its simple operation, large amount of rope winding, and convenient displacement.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
| Items | Rated load | Rated speed | Rope capacity | Rope diameter | Motor | Power | Size | Weight |
| KN | m/min | m | mm | mm | kg | |||
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
JK series winch can be customzied Max. 60T according to your demands.
Advantages & Features:
· Hand control avaiable;
· Free rolling;
· Main shaft rotating;
· Especially for piling and punching;
· Safe and stable hand brake;
· Load capacity of the piling winch is from 1t-10t;
· Beautiful design with good price;
· Easy operation and maintenance.
Applications of winch:
Electric winch is usually used for dragging or lifting heavy materials or loads vertically, horizontally or obliquely via a winch drum, the electric winch has the features, such as compact structure with small volume, light dead weight, large lifting capacity and convenient to move, etc.
Electric winch can be used for horizontal towing, sloped pulling, or vertical lifting.

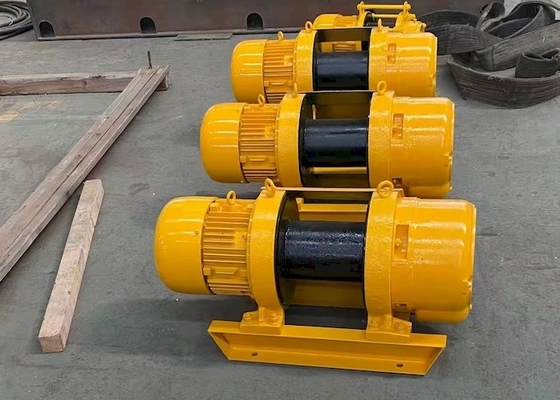

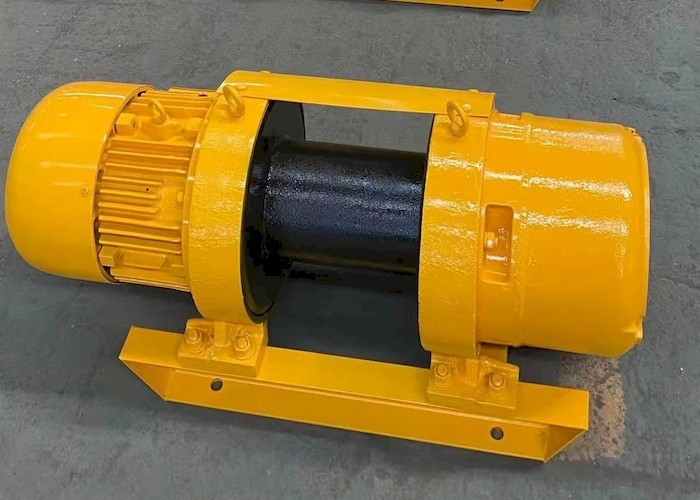

Winch Photos:
