Customized JK JM 1T-10T Electric Hand Winch Convenient Move

Customized JK JM 1T-10T Electric Hand Winch Convenient Move

  • Customized JK JM 1T-10T Electric Hand Winch Convenient Move
  • Customized JK JM 1T-10T Electric Hand Winch Convenient Move
  • Customized JK JM 1T-10T Electric Hand Winch Convenient Move
  • Customized JK JM 1T-10T Electric Hand Winch Convenient Move
Customized JK JM 1T-10T Electric Hand Winch Convenient Move
Product Details:
Place of Origin: China
Brand Name: Santo
Certification: ISO
Model Number: JK JM JMM JKL
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 5000USD- 50000USD
Packaging Details: Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box.
Delivery Time: 15~45 WORKING DAYS
Payment Terms: L/C, D/A, T/T
Supply Ability: 3500SETS/YEAR
Contact Now
Detailed Product Description
Capacity: 0.5t~60t Rope Length: 50m~500m
Structure: Electric System Brake: Hydraulic Brake System
Rated Speed: Standard And Customizable Usage: Cable Pulling Machine, Carry Heavy Goods
Color: Customized
High Light:

JK 10T Electric Hand Winch


JM 1T Electric Hand Winch


Customized winch machine 1 ton

1 Ton -10 Ton High Safety Electric Winch With Hand Control Brake Convenient Move


General description:


Towing, anchor, mooring, dredging, barge, dam gate winch and so on, we develop and produce winches for international customers, in most cases entirely tailored to their requirements.


In the winch industry, wire rope electric winch is widely used for hoisting and dragging the weight materials, which can divided into construction winch, marine winch, anchor winch, mine winch, building winch, cable winch, etc. The wire rope is in an ordered arrangement.

According to the speeds and structures, it contains JM, JK, JMM, JKL, JC, ZKJ, JKD, etc. All the designing meet the requirement of Chinese. Crane Standard. Please tell us your detail requires and usage, we will design the suitable winch for you until you satisfied.


JKL series winch with high speed and hand control brake , the JKL series winch is mainly used for construction factory and mine port and engineering vertical lifting weight drops, especially used in bridge dock construction base engineering free fall punching piling operation. The structural characteristic is main shaft rotating (known as rotating shaft).


Advantages & Features:

· Hand control avaiable;

· Free rolling;

· Main shaft rotating;

· Especially for piling and punching;

· Safe and stable hand brake;

· Load capacity of the piling winch is from 1t-10t;

· Beautiful design with good price;

· Easy operation and maintenance.


Applications of winch:

Electric winch is usually used for dragging or lifting heavy materials or loads vertically, horizontally or obliquely via a winch drum, the electric winch has the features, such as compact structure with small volume, light dead weight, large lifting capacity and convenient to move, etc.

Electric winch can be used for horizontal towing, sloped pulling, or vertical lifting.




Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.

Items Rated load Rated speed Rope capacity Rope diameter Motor Power Size Weight
KN m/min m mm mm kg
JK0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945*996*570 500
JK2 20 24 150 13 Y132M-4 7.5 945*996*570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325*1335*840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900*1738*985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900*1620*985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250*2500*1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533*1985*1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100

JK series winch can be customzied Max. 60T according to your demands.


Our Company:




Our Services:

As a professional Cranes & Lifting Solutions provider, we specialize in this field over 35 years, we Santo Crane has set up a perfect sales network and after-sales service system. We have 42 sales managers and 10 engineers especially for exporting business. We believe with our rich experience, we can provide you a professional solution supporting and satisfied service.

Various special designs are available for use in particular conditions.
This is one of our particular strengths. Together with our designers, we develop a customised solution with you for your special needs.

After Order
  • Delievery Time: After signing the contract and recieving the depoist, the production will take 15~25 working days as per type of products. Special standard make cost 5~10 more working days.
  • Order Tracking: After the depoist recieved, there will be a professional team tracking the order from prodction to package and shipment.
  • Crane Testing: All the materials are purchased from high quality supplier in China or the world, beyond this, we also make commissioning and test before packagement to avoid the trouble back.
After-sale Service:
  • Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem with the main body(not including the wearing parts), we will arrange our professional engineers to provide repairment service. Also we will provide one group wearing parts for free.

  • Installation Service: If customer don't need our engineers for installation, we will provide Remote Advisory Services. Also we could arrange engineers to provide installation service if customer need.

  • Periodic follow up for cranes serving situation. Collecting customers comment, develop better products and service.

  • Any problems come out in the usage, if that because of the quality we will take full responibility, and arrange professional after-sale department to provide solution. if that because of the misoperation or other problems, we will also provide a professional technological supporting or arrange our engineers to help if customer need.

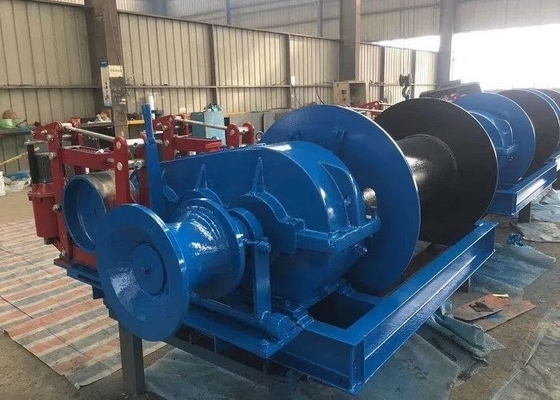

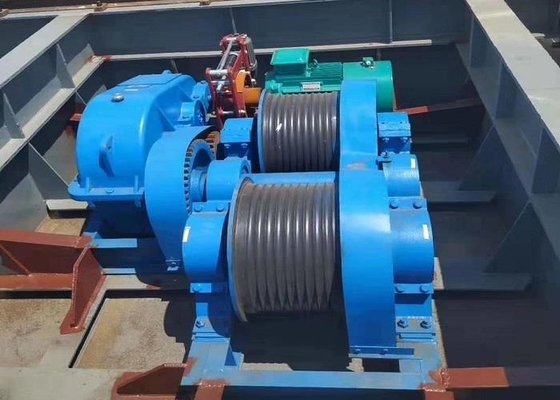

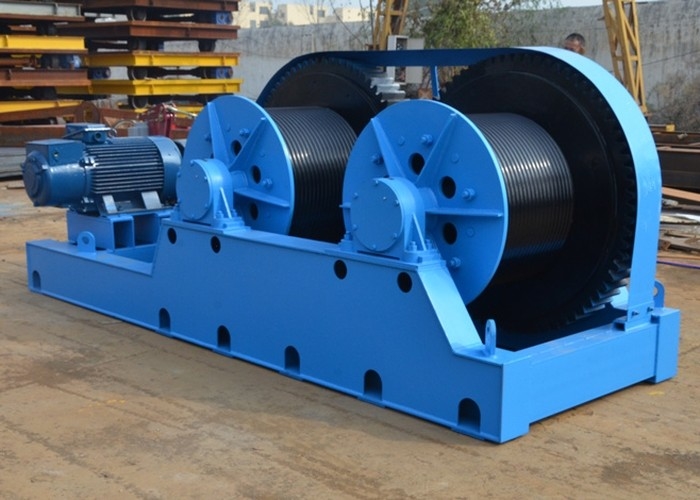

Winch Photos:

Customized JK JM 1T-10T Electric Hand Winch Convenient Move 3

Customized JK JM 1T-10T Electric Hand Winch Convenient Move 4

Customized JK JM 1T-10T Electric Hand Winch Convenient Move 5

Customized JK JM 1T-10T Electric Hand Winch Convenient Move 6


 Free inquiry:

Dear friend, In order to saving your waiting time, it's better to send us inquiry with confirmation of the info below, then we can offer very quick.


1. Traction/Towing Capacity: __tons {Tips: 1 to 200 tons}
2. Rope length, __ m
3. Rope winding speed: __m/min {Tips: Medium and small tonnage 20-30m/min, Medium and large tonnage 8-10m/min}
4. Voltage: __ {Tips: 380V, 50Hz, 3-phase, AC, If it's not yours, please note}
5. Control ways: __ {Tips: control console, radio remote control}
6. Winch working mode: __ {Tips: horizontal towing, sloped pulling, or vertical lifting}


If possible, could you please send me a sketch of winch work in detail.

Please copy and fill the infomation with the inquiry, If any questions or any more request, welcome contact me anytime.
