| Place of Origin: | China |
| Brand Name: | Santo |
| Certification: | ISO |
| Model Number: | JKD |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 2000USD- 4000USD |
| Packaging Details: | Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 3500SETS/YEAR |
| Capacity: | 0.5t~2t | Rope Length: | 50m~200m |
|---|---|---|---|
| Brake: | Included | Rated Speed: | As Demands |
| Usage: | Cable Pulling Machine, Carry Heavy Goods | Color: | Customized |
| Power Supply: | 220-690V, 50/60HZ, 3Phase | ||
| High Light: | JKD0.75 Small Electric Winch,JKD1.25 Small Electric Winch,ISO light duty electric winch |
||
Low Noise Light Duty Small Electric Winch With Electromagnetic Brake From China Factory Direct Supplier
General description:
JKD Light Duty Small Electric Winch is a kind of new hoist winch with planetary gear driven and compact design. It's an ideal replacement product for traditional hoist. It has some advantages like compact design, stable running, convenient operation, easy maintenance, low noise, etc. And it is widely used for building construction, bridge construction, workshop, etc.
In the winch industry, wire rope electric winch is widely used for hoisting and dragging materials vertically, horizontally or obliquely via a winch drum, which can divided into construction winch, marine winch, anchor winch, mine winch, building winch, cable winch, etc. The wire rope is in an ordered arrangement.
According to the speeds and structures, it contains JM, JK, JMM, JKL, JC, ZKJ, JKD, etc. Please tell us your detail requires and usage, we will design the suitable winch for you.
Application:
1. Construction building;
2. Road and bridge construction ;
3. Factory,mines engineer,harbor, etc.
Advantages:
1. Light weight;
2. Electromagnetic brake;
3. Electromagnetic contactor;
4. 24V/36V transformer device;
5. Hot forging with perfect strength shell;
Specification:
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| JKD1.6 | 16 | 160 | 12.5 | 7.5 | 1200x440x480 | 350 |
| JKD2.0 | 20 | 190 | 13 | 15 | 1400x470x548 | 510 |
All the above parameters can be customized according to clients' requirements.
Our Company:
|
As a professional Cranes & Lifting Solutions provider, we specialize in this field over 35 years, we Santo Crane has set up a perfect sales network and after-sales service system. We have 42 sales managers and 10 engineers especially for exporting business. We believe with our rich experience, we can provide you a professional solution supporting and satisfied service. Various special designs are available for use in particular conditions. |
||
|
||
|
||
|
||
|
||

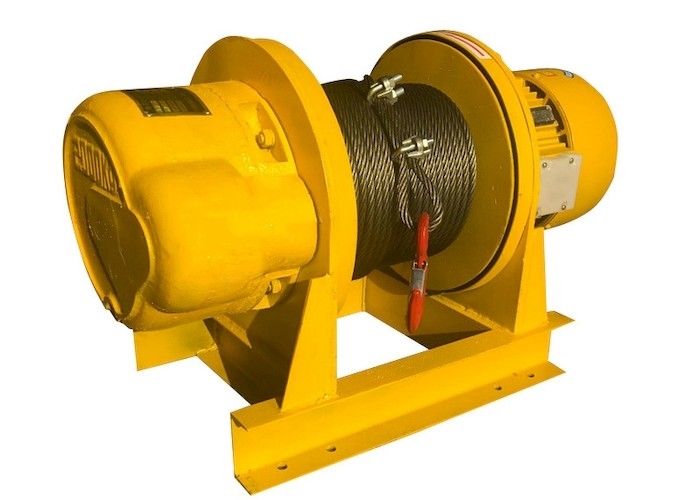

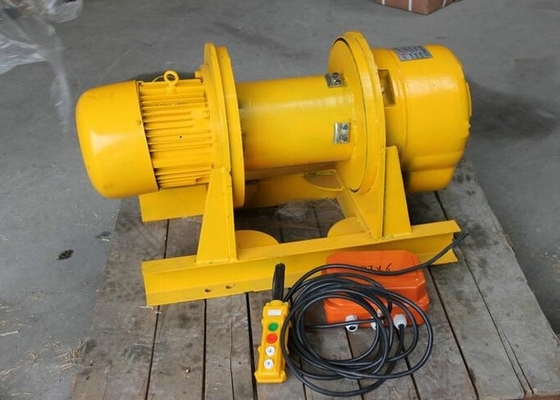

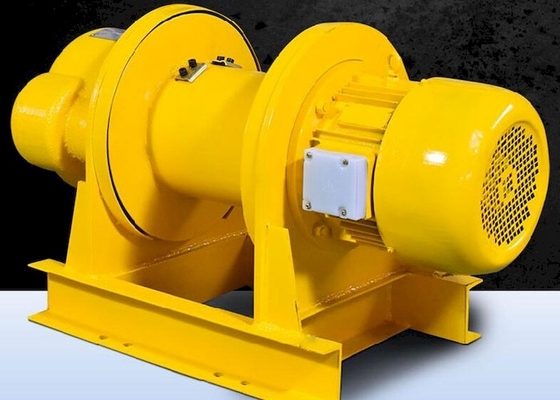

Winch Photos:
