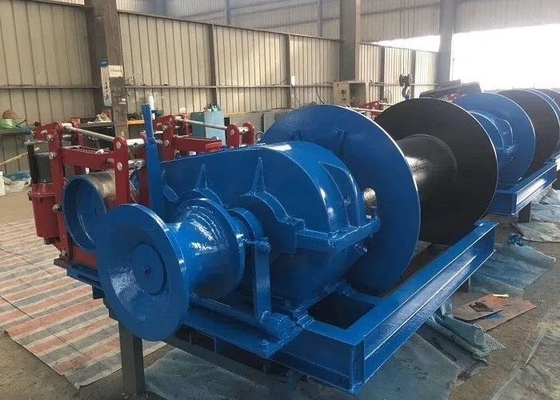

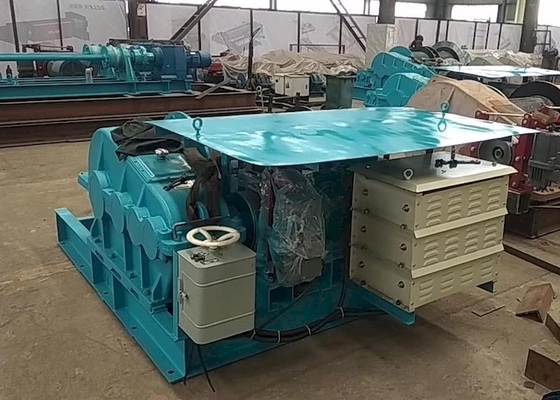

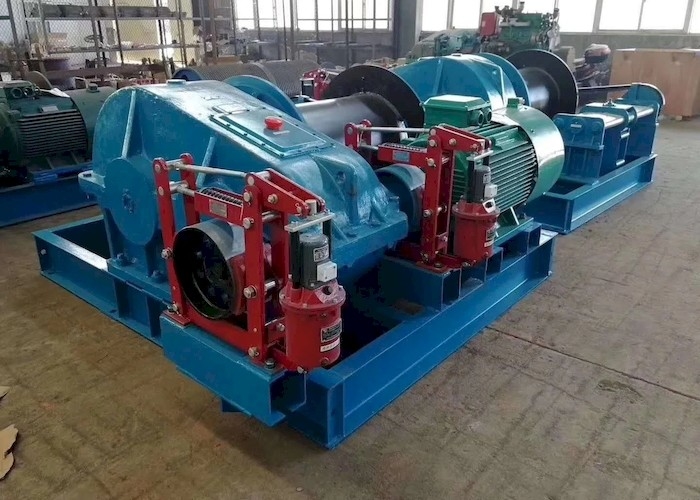

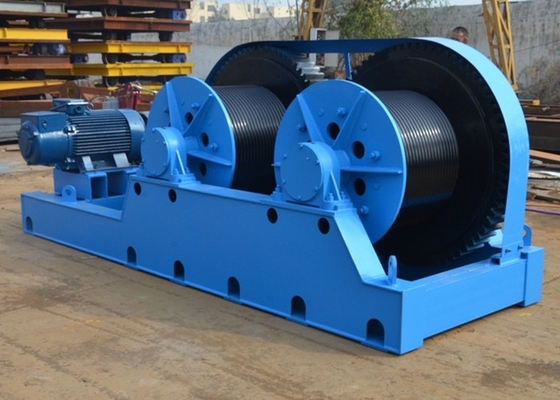

JMM JKL 60 Ton High Speed Electric Marine Winch In Construction

JMM JKL 60 Ton High Speed Electric Marine Winch In Construction

  • JMM JKL 60 Ton High Speed Electric Marine Winch In Construction
  • JMM JKL 60 Ton High Speed Electric Marine Winch In Construction
  • JMM JKL 60 Ton High Speed Electric Marine Winch In Construction
  • JMM JKL 60 Ton High Speed Electric Marine Winch In Construction
JMM JKL 60 Ton High Speed Electric Marine Winch In Construction
Product Details:
Place of Origin: China
Brand Name: Santo
Certification: ISO
Model Number: JK JM JMM JKL
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 5000USD- 50000USD
Packaging Details: Bulk ship: Main body packaged by high quality water proof plastic woven cloths; Container: Nude for main body Spare parts are packed in high quality plywood box.
Delivery Time: 15~45 WORKING DAYS
Payment Terms: L/C, D/A, T/T
Supply Ability: 3500SETS/YEAR
Contact Now
Detailed Product Description
Capacity: 0.5t~60t Rope Length: 50m~500m
Structure: Electric System Brake: Hydraulic Brake System
Rated Speed: As Demands Usage: Cable Pulling Machine, Carry Heavy Goods
Color: Customized
High Light:

60Ton High Speed Electric Marine Winch


JKL 60 Ton Electric Marine Winch


JMM High Speed Electric Winch

High Speed Electric Winch For In Construction, Mine, Marine Heavy Weight Materials Lifting Jk Jkl Jm Jmm Model


General description:

JK series electric winch is a kind of fast speed electric winch. It's mainly used for middle and heavy weight materials lifting, pulling and dragging. It also used for crane as main hoist, it is the special winch of derrick and gantry frame and lifting trolley. JK series fast speed manual winch is widely used for load material lifting, load transfering and as a lift machanism for crane. Suitable for construction and small equipments installation, road construction, bridge construction, factory, mines engineering, harbor, building, etc.

The winch has many features, such as generality, compact structure, small volume, light dead weight, heavy lifting capacity and convenient movement.



Towing, anchor, mooring, dredging, barge, dam gate winch and so on, we develop and produce winches for international customers, in most cases entirely tailored to their requirements.


Applications of winch:

Electric winch is a kind of widely using machine in lifting machinery. It can lift heavy weight in the Construction Site and Port pier, also it can be the Tractive power in installing of the factories and mines.

It not only can be used independently, but also can work with other largescale and complex machine. It has been a necessary machine in the Construction Site and Port pier.

Electric winch can be used for horizontal towing, sloped pulling, or vertical lifting.




1. Fast speed, High working efficiency.
2. Final drive gears are made with heat-treated carbon steel offering greater strength.
3. Precision needle bearing used in high-load areas offering lower friction level and longer life.
4. High impact case providing weather resistance and protection for internal components.
5. Adjustable lifting or pulling speed for different usage environment.

6. Large drum rope capacity offer you a wide range of choice for the lifting height or pulling length.
7. Durable hook safety snap keeping the loads attached.



Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.

Items Rated load Rated speed Rope capacity Rope diameter Motor Power Size Weight
KN m/min m mm mm kg
JK0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945*996*570 500
JK2 20 24 150 13 Y132M-4 7.5 945*996*570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325*1335*840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900*1738*985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900*1620*985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250*2500*1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533*1985*1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100

JK series winch can be customzied Max. 60T according to your demands.


Our Company:




Our Services:

As a professional Cranes & Lifting Solutions provider, we specialize in this field over 35 years, we Santo Crane has set up a perfect sales network and after-sales service system. We have 42 sales managers and 10 engineers especially for exporting business. We believe with our rich experience, we can provide you a professional solution supporting and satisfied service.

Various special designs are available for use in particular conditions.
This is one of our particular strengths. Together with our designers, we develop a customised solution with you for your special needs.

After Order
  • Delievery Time: After signing the contract and recieving the depoist, the production will take 15~25 working days as per type of products. Special standard make cost 5~10 more working days.
  • Order Tracking: After the depoist recieved, there will be a professional team tracking the order from prodction to package and shipment.
  • Crane Testing: All the materials are purchased from high quality supplier in China or the world, beyond this, we also make commissioning and test before packagement to avoid the trouble back.
After-sale Service:
  • Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem with the main body(not including the wearing parts), we will arrange our professional engineers to provide repairment service. Also we will provide one group wearing parts for free.

  • Installation Service: If customer don't need our engineers for installation, we will provide Remote Advisory Services. Also we could arrange engineers to provide installation service if customer need.

  • Periodic follow up for cranes serving situation. Collecting customers comment, develop better products and service.

  • Any problems come out in the usage, if that because of the quality we will take full responibility, and arrange professional after-sale department to provide solution. if that because of the misoperation or other problems, we will also provide a professional technological supporting or arrange our engineers to help if customer need.


Winch Photos:


1591525167(winch 750).jpg



 Free inquiry:

Dear friend, In order to saving your waiting time, it's better to send us inquiry with confirmation of the info below, then we can offer very quick.


1. Traction/Towing Capacity: __tons {Tips: 1 to 200 tons}
2. Rope length, __ m
3. Rope winding speed: __m/min {Tips: Medium and small tonnage 20-30m/min, Medium and large tonnage 8-10m/min}
4. Voltage: __ {Tips: 380V, 50Hz, 3-phase, AC, If it's not yours, please note}
5. Control ways: __ {Tips: control console, radio remote control}
6. Winch working mode: __ {Tips: horizontal towing, sloped pulling, or vertical lifting}


If possible, could you please send me a sketch of winch work in detail.

Please copy and fill the infomation with the inquiry, If any questions or any more request, welcome contact me anytime.
