| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO |
| Model Number: | KPX, KPJ, KPT, KPC, KPD,KP, BWP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2500-6000/set |
| Packaging Details: | LCL container shipping by wooden case, nude for FCL container, or as your requirements. |
| Delivery Time: | 15~30 WORKING DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000 SETS/YEAR |
| Product Name: | Electric Transfer Cart,material Handling Trackless Electric Steel Coil Transfer Cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley | Color: | Customized |
|---|---|---|---|
| Application: | Widely,Industrial Filed,Material Handling/steel Coil/industrial,Transfer Frequently,pipe) Or Equipment Handling | Power Supply: | Battery, Bus Bar, Cable Reel, Rails, Cable Drag Chains |
| Warranty: | 1 Year | Wheel: | Four-wheel |
| Load Capacity: | Custom From 1t To 300t | Size: | Customized Size |
| Running Speed: | 0-25 M/min(Adjustable) | Brake: | Electric Motor Brake |
| High Light: | KPD DC Material Transfer Trolley,KPD AC Material Transfer Trolley,63T Electric Transfer Trolley |
||

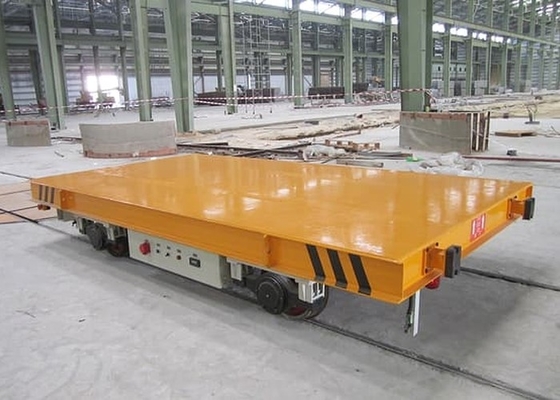

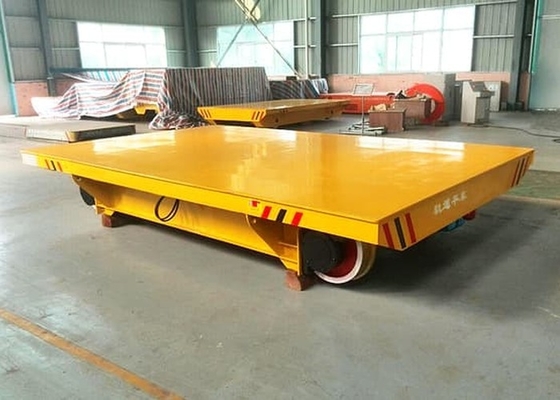

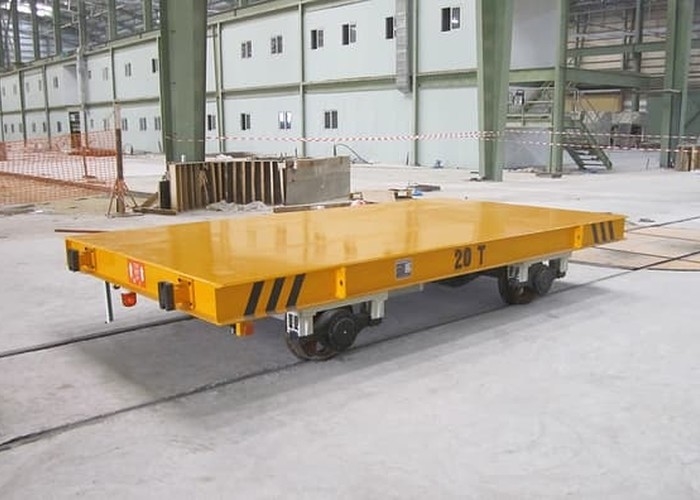

KPD DC Or AC Motor Driven Transfer Cart With Low Voltage Conductor Rail Power Supply System For Steel Plant
| 1 | Product Description |
Electric transfer cart is a kind of transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy, assembly line, production line, ship industry (maintenance, assemble, container transportation), work piece transportation and warehouse to frequently transport or cooperate with cranes to transfer goods.
| 2 | Transfer Cart Series |
Electric Transfer Carts are mounted on steel rail for shuttling along a fixed path. They can be divided in different types according to different power supply mode, as below:
1. KPT type is Towed Transfer Cart, powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter.
2. KPJ type is Cable Reel Transfer Cart, powered by the cable from the cable reel. With the cable reel, the moving distance is improved to 200 meter compared with the KPT type.
3. KPX type is Battery Transfer Cart, powered by the storage battery. Without the cable, this kind of transfer cart is more flexible and safe. While the capacity and the duty group are all affected by the storage battery. Especially, the price and the life span of the battery is also an important issue.
4. KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.
5. KPD type is powered by the low voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type; the system is also more complicated and expensive.
| 3 |
Application |
The KPD Electric Transfer Cart is powered by rail, used for heavy duty load, high using frequency and meet full automation demand.
This series transfer cart is generally running on straight rails, but it also can be specially used both on the 'S' and arc-shaped railways to carry many different kinds of stuff. They also can used in high temperature. In aditional, hydraulic elevator system and lifting system can be special designed above the table surface.
So it is mainly applied in assembly line, production line, metallurgy industry, warehouse transportation, ship industry (maintenance, assemble, container transportation), work piece transportation, lathe transportation, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel structure), construction (bridge, simple building, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort), railway (rail maintenance, rail welding, train tractor), shipyard, etc.
| 4 | Features |
1. Low height, heavy duty, safe security
2. Flexibility, high using frequency
3. Long using time, long service life
4. No limitation of running distance
5. With lifting holes, convenient to shipment
6. Stable start, big starting power
7. Suitable for bad environment, high temperature, explosion environment
8. Convenient for operation and maintaince
| 5 | Technical Parameters |
|
Model |
KPDZ/S-5t |
KPDZ/S-10t |
KPDZ/S-25t |
KPDZ/S-30t |
KPDZ/S-40t |
KPDZ/S-63t |
|
|---|---|---|---|---|---|---|---|
|
Rated load |
5 |
10 |
25 |
30 |
40 |
63 |
|
|
Table size |
Length(L) |
3500 |
3600 |
4500 |
4500 |
5000 |
5600 |
|
Width(W) |
2000 |
2000 |
2200 |
2200 |
2500 |
2500 |
|
|
Height(H) |
450 |
500 |
600 |
600 |
650 |
750 |
|
|
Wheel Base |
2500 |
2600 |
3200 |
3200 |
3800 |
4300 |
|
|
Rail Inner Gauage |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
|
|
Wheel Diameter |
300 |
300 |
400 |
400 |
500 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
Ground Clearance |
50 |
50 |
50 |
50 |
50 |
75 |
|
|
Running Speed |
0-25 |
0-25 |
0-20 |
0-20 |
0-20 |
0-20 |
|
|
Motor Power |
1.2 |
1.6 |
3 |
3.5 |
4 |
6.3 |
|
|
Transformer Power |
5 |
5 |
6.8 |
10 |
10 |
20 |
|
|
Transformer Quatity |
1 |
1 |
1 |
1 |
1 |
1 |
|
|
Running Distance |
80 |
80 |
80 |
80 |
60 |
50 |
|
|
Max Wheel Load |
25.8 |
42.6 |
94.5 |
110.4 |
142.8 |
221.4 |
|
|
Reference Weight |
3.6 |
4.2 |
6.5 |
6.8 |
7.6 |
10.8 |
|
|
Recommended Rail |
P18 |
P18 |
P38 |
P38 |
P43 |
P50 |
|
|
Remark |
1.Load capacity,table size and rail gauge can be customized. 2.Options: a.Remote radio control(imported or made in China); b. Automatic stop when detecting obstacle or person, limit switches; c. Automatic cutting off power on rail; d Motor(DC motor or AC motor); e.Electrical parts(imported or made in China); f.Special design for special need. |
||||||
