Top Construction Crane Equipment Yellow/Red 10-75t Lifting Load 6-18m Lifting Height

Product Details:

Place of Origin:	China
Brand Name:	Santo Crane
Certification:	ISO, CE
Model Number:	MG MDG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$9999-$49999
Packaging Details:	Parts packing in wooden case;Beams packing by plastic
Delivery Time:	25~45 working days
Payment Terms:	T/T,LC
Supply Ability:	1999set/year

Contact Now

Detailed Product Description

Trolley Speed:	0-30 M/min	Lifting Height:	6-18m
Core Components:	Bearing, Gear, Gearbox, Motor	Color:	Yellow, Red, Or As Requirments
Lifting Load:	10-75t	Crane Traveling Speed:	0-45 M/min
Country:	China	Rated Lifting Moment:	Different
High Light:	Yellow Construction Crane Equipment , 18m Construction Crane Equipment , 75t Construction Crane Equipment

Products Description

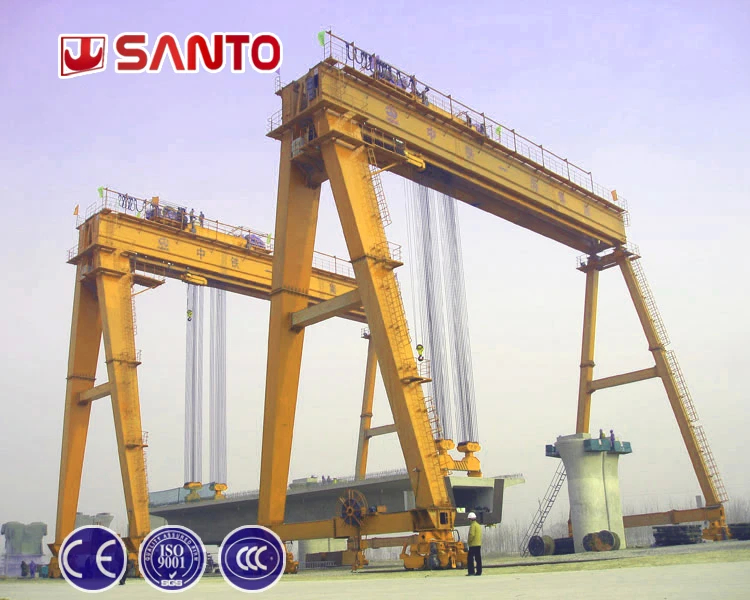

MG double girder gantry crane is composed of bridge frame, wagon running mechanism, trolley and electrical equipment, etc.The bridge adopts box-type double-beam welding structure, and the operation mechanism of the cart is driven separately, and all the mechanisms are operated in the driver’s cab.
Note: Mostly Gantry crane is customized products,Please contact with our sales manager to make the reasonable solutions.

Double Girder Gantry Crane Components:
* Main Girder
* Flexible Leg
* Ground Beam
* Rigid Leg
* Lifting Open Winch Trolley
* Heavy Duty Trolley Festoon System
* High-strength Alloy Forged Hook
* LT Wheel Mechanism
* LT Power Supply Cable Reel Drum
* Maintenance Platform

Features:
1. Variable Frequency Drives (VFDs): Enables smooth acceleration and deceleration, reducing wear and tear on components while optimizing energy consumption.
2. Remote Control and Automation: Allows operators to control the crane remotely, enhancing safety and enabling more efficient operation.
3. Load Sensing and Anti-Sway Systems: Employ sensors and algorithms to prevent load swinging, improving load stability and operator control.
4. Collision Avoidance Systems: Integrates sensors and software to detect obstacles and prevent collisions during crane movement.

5. Energy-Efficient Components: Utilizes energy-efficient motors and components to reduce power consumption and operating costs.
6. Integrated Diagnostics and Maintenance Monitoring: Offers real-time monitoring and diagnostics to predict maintenance needs and minimize downtime.
7. Wireless Communication: Uses wireless technology for data transmission between components, enhancing flexibility and reducing cable clutter.
8. Advanced Safety Features: Includes redundant safety mechanisms, emergency stop systems, and overload protection to ensure safe operations.
9. High-strength Materials and Manufacturing: Incorporates advanced materials and manufacturing techniques to enhance structural integrity and longevity.

Safety Device:
1. Crane traveling limit switch
2. Weight overload protection system
3. Emergency stop system
4. Voltage lower protection function
5. Current overload protection system
6.Top quality long time bearing polyurethane materials buffer...

Technical Parameters:

Capacity			T	50/10	75/20	100/20
Span			m	7.5~31.5
Lifting height		Main hook	m	12	20	22
		Aux.hook	m	16	22	22
Operation method				Pendent control,wireless control,cabin control
Speed	Lifting	Main hook	m/min	5.9	5.5	3.53
		Aux.hook	m/min	13.2	9.23	7.2
	Cross travel		m/min	38.5	38.4	33.86
	Long travel		m/min	74.6	65	65.6
Lifting mechanism			type	Heavy duty open winch, double girder trolley hoist
Working duty				A5,A6,A7
Power supply			AC	220/380/400/415/460V,50/60Hz, 3P

Applications:

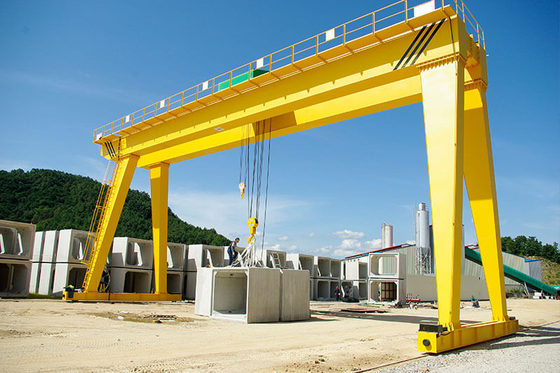

Double girder gantry crane for factory yard is normally using in open-air warehouse. It normally

accompanied with particular lifting tools using in the container shipyard.

It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance,

high adaptability and so on.

It is composed of beam, support legs, crane traveling mechanism, trolley, electric equipment and so on.

The strong legs shape is like a English Letter ”A”, this design is very benefit when the container pass by

thought the legs.

The control method could be ground control, remote control, cabin control or both.

Packing and Shipping:

Packing:

1. Electric parts are packed by high quality plywood crate to reduce distortion in conveying;

2. Main beams, end beams and electric hoist / winch are packed by plastic woven cloth. It can reduce abrasion when transport.

Delivery:

1. If the size of whole crane are suitable for container ship, usually by container;

2. If the size is too big, usually by bulk ship or by container after truncation;

3. Transport ways are based on reducing cost for you and keep the crane in good condition.

FAQ:

In order to offer you a precisely quotation, please tell us these information:

1.The lifting capacity__ ton?
2.The span length is__ m? (Span=distance between center of two rails)
3.The lifting height is __m? (Lifting height=Distance from hook to ground)
4.What is the lifting speed? (Single speed or double speed)
5.What control mode do you need? (Pendant control or remote control or cabin)
6.What is the power supply in your country? (Our standard power supply is 380V,3Ph,50Hz, other pls indicate)
7.Is there any other special requirements? (If need us to supply rails? how long? etc)
