| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD6000-40000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Double Girder Semi Gantry Crane,Versatile 100T Semi Gantry Crane,Widely Used Semi Goliath Crane |
||

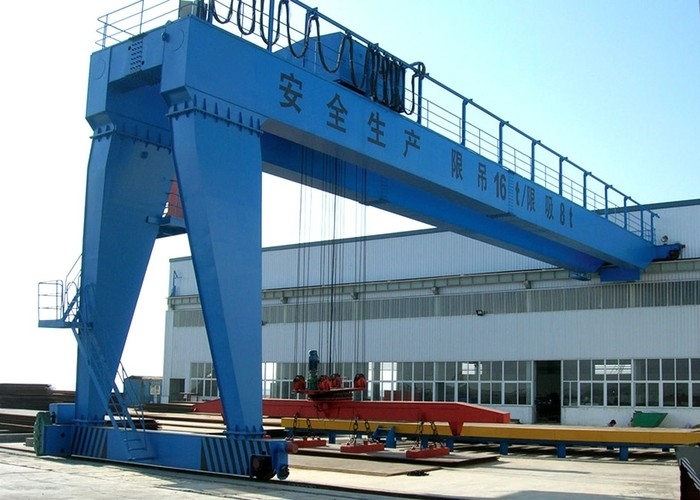

100t Double Girder Semi-Gantry Crane Strong Versatility Widely Used
Description:
The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane of the same lifting capacity, and the cost is also higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, a box structure is used.
Technical Specification:
| Lifting Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||
| Working Duty | ISO | A3-A8 | ||||||||||||||
| Span | m | 7-35, customized | ||||||||||||||
| Lifting Height | Main hook | m | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||
| Aux. hook | 10.275,11.275 | 10.446,11.446 | 10.73 | 11.73 | 10.918 | 12.918 | ||||||||||
| Speed | Lifting | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||
| Aux. | 14.6 | 15.4 | 15.4 | 10.4 | ||||||||||||
| Trolley traveling | 37.3 | 35.6 | 36.6 | 37 | 36 | |||||||||||
| Crane traveling | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |||||||
| Recommended Tail | 43kg/m | 43kg/m or QU70 | ||||||||||||||
| Power Supply | 3-Phase 380V 50HZ, or as clients' requirement | |||||||||||||||
Features & Advantages:
1.Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and elegant. Suitable for different operation temperature;
2. Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc;
3. Hook: Finest steel forged hook, long using life;
4. Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency and long service life;
5. Travel mechanism: With China or world famous crane motor, reducer supplier, such as Nanjing motor, SEW etc;
6. Electrics: Chint, Schneider or Siemens etc.
Components of Double Beam Gantry Crane:
According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components
1. Cylindrical wheel
2. Buffer
3. Block brake
4. Steel wire rope
5. Lifting hook
6. Driver's cab
7. Reducer
8. Casting pulley
9. Casting reel
10. Motor
11. Electronic control equipment
Looking forward to receiving your inquiry with the below detailed information:
1. Boxed type or trussed? The type? (Single girder, double girder or as recommend)
2. SWL/ Load capacity:?
3. Span:?
4. Lift Height:?
5. Need Cantilever, if need, how long:?
6. Standard voltage: 380V 50Hz,3p, AC, is it ok?
7. Request for speed: ?
8. Need us to provide the rail system and power supply? if need, please tell us the long crane travel distance!
9. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
