Ground Travelling Electric Rail Mounted Gantry Crane Heavy Duty

Heavy Duty Rail Mounted Ground Travelling Electric Double Girder Gantry Crane For Material Loading And Unloading

Description:

Gantry Crane are also known as Portal crane or Goliath crane. Include single girder gantry crane, double girder gantry crane, engineer gantry crane, semi gantry crane, European type gantry crane and operate on floor mounted rails. Mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete and many other industries.
The terms gantry crane and overhead crane (or bridge crane) are often used interchangeably, as both types of crane straddle their workload. The usual distinction drawn between the two is that with gantry cranes, the entire structure (including gantry) is usually wheeled (often on rails). By contrast, the supporting structure of an overhead crane is fixed in location, often in the form of the walls or ceiling of a building, to which is attached a movable hoist running overhead along a rail or beam (which may itself move).

Lifting capacity: 1t - 550t, max up to 800t;
Span: 7m - 35m;
Work duty: A3 - A8;
Working temperature: ﹣20℃~﹢40℃.

Features:

Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
Equipped with all the necessary safety device
High reliability component
High work duty, can bearing heavy capacity and long time work
Needn’t any column, runway beam, just travel on the ground
Suit for both of outdoor and indoor
Main electrical parts: Chint, Siemens or Schneider brand

Application:

Double girder gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete and many other industries.


Company information:

The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.

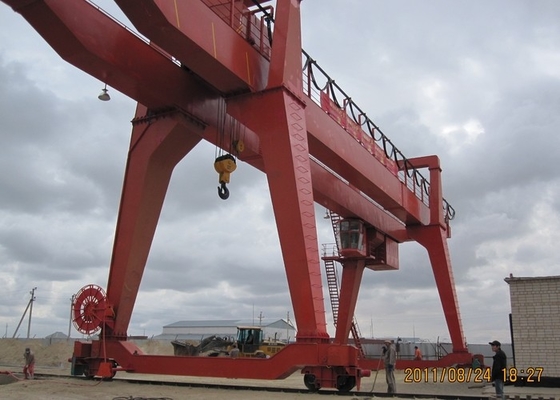

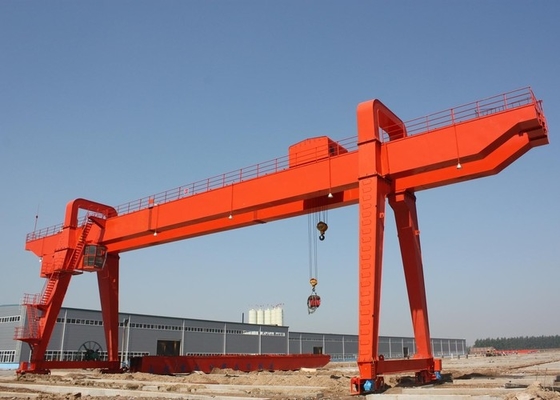

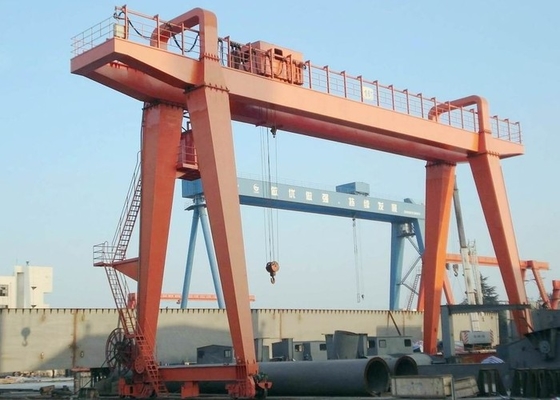

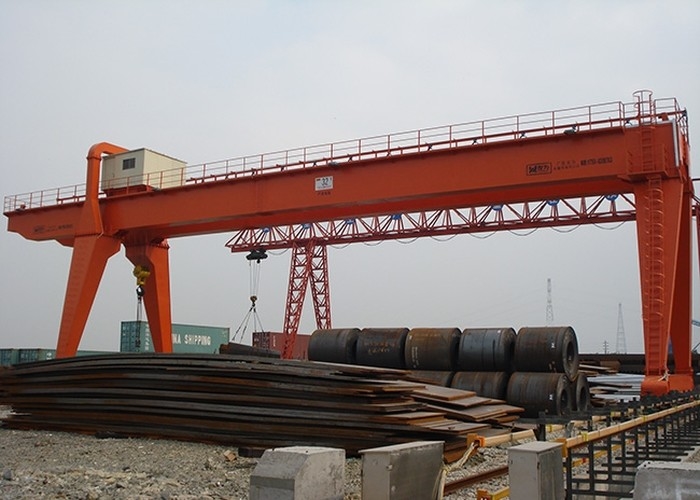

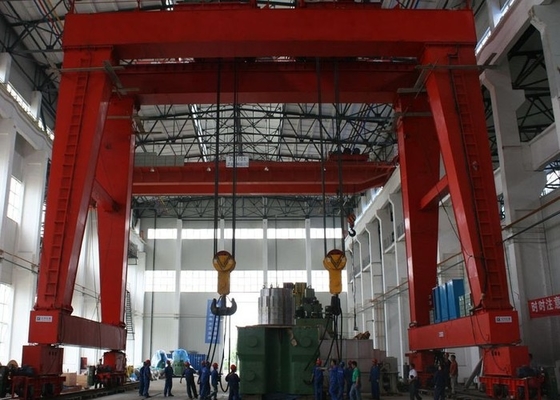

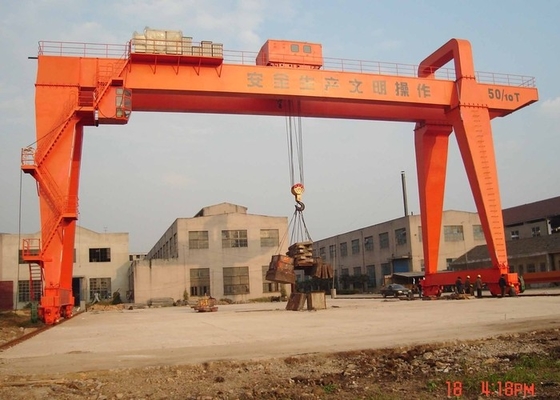

Crane Detail:
