| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD6000-40000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | SANTO Double Girder Gantry Crane,heavy duty gantry crane 50Ton,43kg/m Gantry Crane 5 Ton |
||
High Work Duty Double Girder Gantry Crane 5 - 50 Ton Easy Operated For Warehouse
Description:
The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane with the same lifting capacity, and the cost is also higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, a box structure is used.
Technical Specification:
| Lifting Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||
| Working Duty | ISO | A3-A8 | ||||||||||||||
| Span | m | 7-35, customized | ||||||||||||||
| Lifting Height | Main hook | m | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||
| Aux. hook | 10.275,11.275 | 10.446,11.446 | 10.73 | 11.73 | 10.918 | 12.918 | ||||||||||
| Speed | Lifting | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||
| Aux. | 14.6 | 15.4 | 15.4 | 10.4 | ||||||||||||
| Trolley traveling | 37.3 | 35.6 | 36.6 | 37 | 36 | |||||||||||
| Crane traveling | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |||||||
| Recommended Tail | 43kg/m | 43kg/m or QU70 | ||||||||||||||
| Power Supply | 3-Phase 380V 50HZ, or as clients' requirement | |||||||||||||||
Features:
Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
Equipped with all the necessary safety device
High reliability component
High work duty, can bearing heavy capacity and long time work
Needn’t any column, runway beam, just travel on the ground
Suit for both of outdoor and indoor
Main electrical parts: Chint, Siemens or Schneider brand
Applications:
In recent years, with the development of speed screens in the lifting machinery manufacturing industry, the use of double-girder gantry cranes in the entire material handling process is often dozens or even several times the weight of the product, from raw material transportation to product production. This function of the gantry crane brings a lot of convenience to our work and life. It can not only achieve the effect that cannot be achieved by manpower, but also can use the crane to create good economic benefits. It has become an indispensable part of our work and life. Part of it, many jobs depend on it to get done.

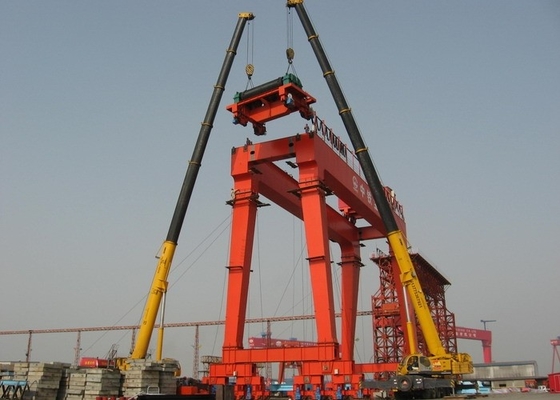

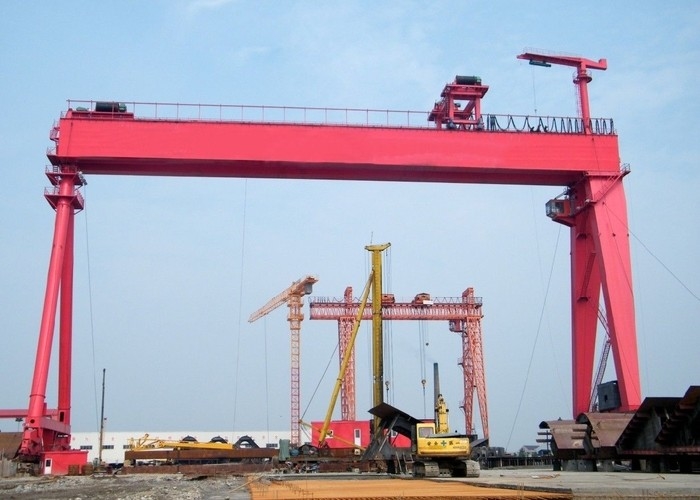

Crane Detail:
Delivery:
Needed information for quotation:
According to your requirements, our crane experts will assist you to select a crane that best fits your application.
