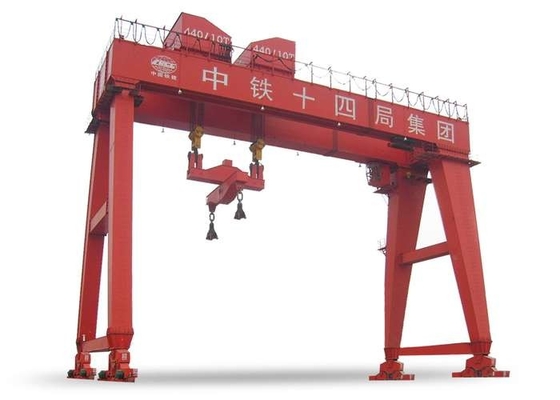

Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane

Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane

  • Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane
  • Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane
Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-40000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7-35m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Gantry Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 800t
Product Name: Rail Mounted Gantry Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-800t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Gantry Crane, Portal Crane, Goliath Crane
Type: Heavy Duty Double Girder Gantry Crane Lifting Mechanism: Open Winch Trolley
Lifting Speed: Standard Or As Requirement Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

A3 A8 Double Girder Gantry Crane

,

Double Girder Gantry Crane GB5905

,

GB T14406 Box Girder Crane

Good Stability Double Girder Gantry Crane Strong Bearing Capacity



Description:



The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.



Main beam structure:


1. Truss beam
The structural form welded by angle steel or I-beam has the advantages of low cost, light weight and good wind resistance. However, due to the large number of welding points and the defects of the truss itself, the truss beam also has the disadvantages of large deflection, low rigidity, relatively low reliability, and frequent inspection of welding points. It is suitable for venues with low safety requirements and small lifting capacity.



2. Box girder
The steel plate is welded into a box-type structure, which has the characteristics of high safety and high rigidity. Generally used for large tonnage and super tonnage gantry cranes. Box girder also has the disadvantages of high cost, heavy self-weight and poor wind resistance.



Technical Specification:



Lifting Capacity t 5 10 16/3.2 20/5 32/5 50/10
Working Duty ISO A3-A8
Span m 7-35, customized
Lifting Height Main hook m 10 11 10 11 10 11 10 11 10 11 10 12
Aux. hook 10.275,11.275 10.446,11.446 10.73 11.73 10.918 12.918
Speed Lifting Main m/min 11.3 8.5 7.9 7.2 7.5 5.9
Aux. 14.6 15.4 15.4 10.4
Trolley traveling 37.3 35.6 36.6 37 36
Crane traveling 37.3 39.7 40.1 39.7 39.7 37.3 39.7 39.4 38.5
Recommended Tail   43kg/m 43kg/m or QU70
Power Supply   3-Phase 380V 50HZ, or as clients' requirement



How to choose:



1. Selection of gantry crane
Comply with the relevant regulations of GB/T14406-1993 and GB5905-86 for general gantry cranes.
Under normal circumstances, the lifting capacity is less than 50t, the span is less than 35m, and there are no special requirements for use, the single main beam type should be selected. If the width of the gantry leg is required to be large, the working speed is high, or the heavy and long pieces are often lifted, the double-girder gantry crane should be selected.



2. Span and cantilever length
The span of the gantry crane is an important factor affecting the quality of the crane itself. In the selection, the span should be minimized under the premise of meeting the equipment use conditions and meeting the span series standards.



3. The principle of determining the wheelbase
(a) It can meet the stability requirements of the gantry along the direction of the crane track;
(b) The overall dimensions of the goods should be able to smoothly pass through the flat steel frame of the outriggers;
(c) Note that the wheelbase B is proportional to the span S. Generally, the wheelbase B=(1/4-1/6)S.



4. The gantry crane spacing size is determined
During work, there should be a certain amount of space between the external dimensions of the gantry crane and the passage of goods and transport vehicles in the yard to facilitate loading and unloading operations. When loading and unloading within the span, the general transport vehicle should keep a distance of more than 0.7m from the door leg. When the spreader is not working, there should be a distance of more than 0.5m from the transport vehicle, and when the goods pass through the door legs, there should be a distance of more than 0.5m.



Application:

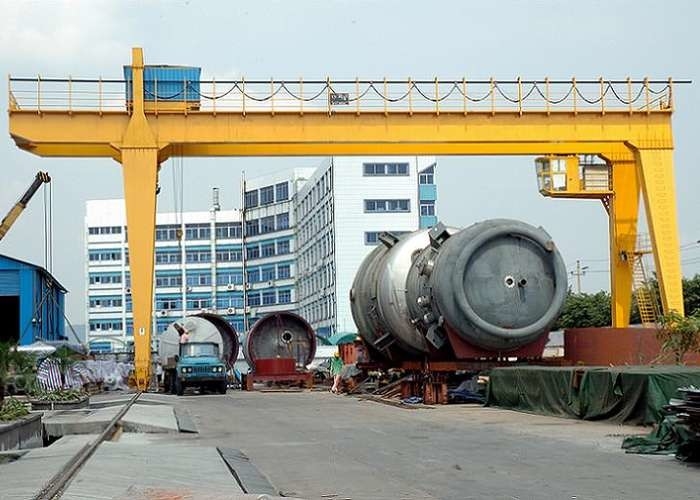

Double girder gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete warehouse, rail station, stock yard and shipyard, and many other industries.



Delivery:



Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane 0





Looking forward to receiving your inquiry with the below detailed information:

Stable ISO A3-A8 Double Girder Gantry Crane GB5905 GB/T14406 Box Girder Crane 1

1. Boxed type or trussed? The type? (Single girder, double girder or as recommend)
2. SWL/ Load capacity:?
3. Span:?
4. Lift Height:?
5. Need Cantilever, if need, how long:?
6. Standard voltage: 380V 50Hz,3p, AC, is it ok?
7. Request for speed: ?
8. Need us to provide the rail system and power supply? if need, please tell us the long crane travel distance!
9. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
