Electricity Powered 10-75t Double Girder Gantry Crane Smooth Lifting With Wireless Remote Control

Product Details:

Place of Origin:	China
Brand Name:	Santo Crane
Certification:	ISO, CE
Model Number:	MG MDG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$9999-$49999
Packaging Details:	Parts packing in wooden case;Beams packing by plastic
Delivery Time:	25~45 working days
Payment Terms:	T/T,LC
Supply Ability:	1999set/year

Contact Now

Detailed Product Description

Control Mode:	Cab / Wireless Remote Controller	Lifting Load:	10-75t
Country:	China	Rated Lifting Moment:	Different
Core Components:	Bearing, Gear, Gearbox, Motor	Power:	Electricity
Cantilever Length:	0-15m	Trolley Travel Speed:	30m/min
Painting Color:	Red, Yellow Or Client's Requirement	Lift Speed:	As The Requirements
Lifting Speed:	5.9 M/min	Speed:	Single Speed /double Speed
Material:	Q235B	End Carriage Material:	Q235B/Q345B
Lifting Weight:	5~50/10T	Feature:	High Site Utilization Rate
Origin:	Henan, China	Emergency Stop System:	Included
Delivery:	By Sea, By Train, By Car	Power Source:	Electric
Control Type:	Cabin Control
High Light:	Smooth Lifting Double Girder Gantry Crane , Electricity Powered Double Girder Gantry Crane , 10-75t Double Girder Gantry Crane

Product Description:

1.Double girder gantry crane is applied open warehouse or rail along for general handling and lifting work,

it also can equipped with many lifting device for special work.

2.This kind of crane is composed of bridge, support legs, crane traveling organ, trolley, electric equipment,

strong lifting winch,the frame adopts boxtype welding mechanism, crane traveling mechanisms are

operated in the driver cabin or remote control. Power is supplied by cable or slide wire, there are different

capacity double beams gantry crane for your choice according to your different use.

3.Double girder gantry crane have A type,U type.U type is designed for container lifting.It could be

designed with cantilever or not.The crane working class is A5.

4.There are two type structure for the main girder and leg as optional: truss girder type and box girder type.
5.It is prohibited for lifting melt metal , flammable, explosive, corrosion, overloading,

dust and other dangerous operations.

Features:
1. Variable Frequency Drives (VFDs): Enables smooth acceleration and deceleration, reducing wear and tear on components while optimizing energy consumption.
2. Remote Control and Automation: Allows operators to control the crane remotely, enhancing safety and enabling more efficient operation.
3. Load Sensing and Anti-Sway Systems: Employ sensors and algorithms to prevent load swinging, improving load stability and operator control.
4. Collision Avoidance Systems: Integrates sensors and software to detect obstacles and prevent collisions during crane movement.

5. Energy-Efficient Components: Utilizes energy-efficient motors and components to reduce power consumption and operating costs.
6. Integrated Diagnostics and Maintenance Monitoring: Offers real-time monitoring and diagnostics to predict maintenance needs and minimize downtime.
7. Wireless Communication: Uses wireless technology for data transmission between components, enhancing flexibility and reducing cable clutter.
8. Advanced Safety Features: Includes redundant safety mechanisms, emergency stop systems, and overload protection to ensure safe operations.
9. High-strength Materials and Manufacturing: Incorporates advanced materials and manufacturing techniques to enhance structural integrity and longevity.

Safety Device:
1. Crane traveling limit switch
2. Weight overload protection system
3. Emergency stop system
4. Voltage lower protection function
5. Current overload protection system
6.Top quality long time bearing polyurethane materials buffer...

Product Paramenters

Capacity			T	50/10	75/20	100/20
Span			m	7.5~31.5
Lifting height		Main hook	m	12	20	22
		Aux.hook	m	16	22	22
Operation method				Pendent control,wireless control,cabin control
Speed	Lifting	Main hook	m/min	5.9	5.5	3.53
		Aux.hook	m/min	13.2	9.23	7.2
	Cross travel		m/min	38.5	38.4	33.86
	Long travel		m/min	74.6	65	65.6
Lifting mechanism			type	Heavy duty open winch, double girder trolley hoist
Working duty				A5,A6,A7
Power supply			AC	220/380/400/415/460V,50/60Hz, 3P

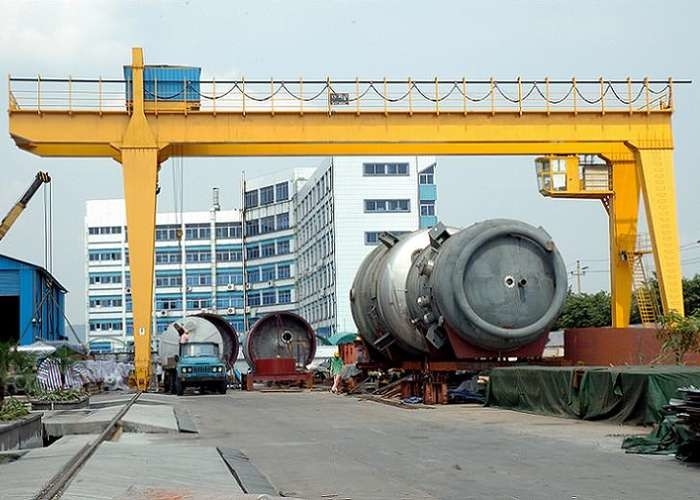

Customer Cases

Company Profile

About Santo Cranes

● Henan Santo Crane Co., Ltd, first established in 1984 was, at that time, our plants located in China Crane Hometown-Changyuan county, Henan province, covers over 510,000 square meters, have more than 10 production lines, and total assets of 8.7 million Yuan, the enterprise now boasts a staff of more than 2,500 people, including 350 people with middle or advanced professional title and more than 450 suits various kinds of manufacturing and checkout equipment. We have achieved ISO9001, ISO14001, OHSAS18000, TUV and CE certificates during the past decades. ● Santo has been a specialist in lifting, transporting, loading or unloading materials in Military Industry, Aeronautics and Astronautics, Food/Pharmaceutics, Nuclear Power/Energy, Tunnel Shields, Wind Power, Automobiles, Waste Disposal, Paper-making/Pulp, Engineering Machinery, Rail Transit, Metallurgy, Petrochemical Industry, Ships, Metal Processing, Mining, Logistics, Warehouse, Construction & Engineering and so on. ● Santo builds a complete range of overhead cranes, gantry cranes, jib cranes, port cranes, electric hoists, chain hoists, electric winch, transfer carts, boom lift, scissor lift and all crane accessories, including single girder, double girder, double leg, single leg, and cantilever styles for indoor or outdoor service. Capacities, spans and heights are virtually unlimited and customizable. ● We always aim at the decreasing of your staff cost, workshop construction cost, and highly improving the working efficiency. We work closely with clients to improve their production processes, providing solutions that are integrated, sustainable and optimised, both technically and economically. ● Our machine series combined good quality with reasonable prices. We can provide a full range of professional solution supporting and satisfied life cycle service.

Inquiry & Contact

In order to offer you a precisely quotation, please tell us these information:

1.The lifting capacity__ ton?
2.The span length is__ m? (Span=distance between center of two rails)
3.The lifting height is __m? (Lifting height=Distance from hook to ground)
4.What is the lifting speed? (Single speed or double speed)
5.What control mode do you need? (Pendant control or remote control or cabin)
6.What is the power supply in your country? (Our standard power supply is 380V,3Ph,50Hz, other pls indicate)
7.Is there any other special requirements? (If need us to supply rails? how long? etc)
