| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Certification: | ISO, CE |
| Model Number: | MG MDG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $9999-$49999 |
| Packaging Details: | Parts packing in wooden case;Beams packing by plastic |
| Delivery Time: | 25~45 working days |
| Payment Terms: | T/T,LC |
| Supply Ability: | 1999set/year |
| Trolley Travel Speed: | 3.5 -30 M/min | Type: | Double Girder Gantry Crane |
|---|---|---|---|
| Country: | China | Motor: | Chinese Famous Brand/Schneider |
| Trolley Speed: | 0-30 M/min | Lifting Height: | 6-18m |
| Control Mode: | Cab / Wireless Remote Controller | Core Components: | Bearing, Gear, Gearbox, Motor |
| Power Source: | 380V 50Hz 3Ph Or Customized | Lifting Mechanism: | Electric Winch |
| Crane Feature: | Mobile Double Girder Gantry Crane | Work Duty: | A5-A8 |
| High Light: | Chinese Gantry Cranes,Schneider Motor Chinese Gantry Cranes,Lifting Height Chinese Gantry Cranes |
||
1.Double girder gantry crane is applied open warehouse or rail along for general handling and lifting work,
it also can equipped with many lifting device for special work.
2.This kind of crane is composed of bridge, support legs, crane traveling organ, trolley, electric equipment,
strong lifting winch,the frame adopts boxtype welding mechanism, crane traveling mechanisms are
operated in the driver cabin or remote control. Power is supplied by cable or slide wire, there are different
capacity double beams gantry crane for your choice according to your different use.
3.Double girder gantry crane have A type,U type.U type is designed for container lifting.It could be
designed with cantilever or not.The crane working class is A5.

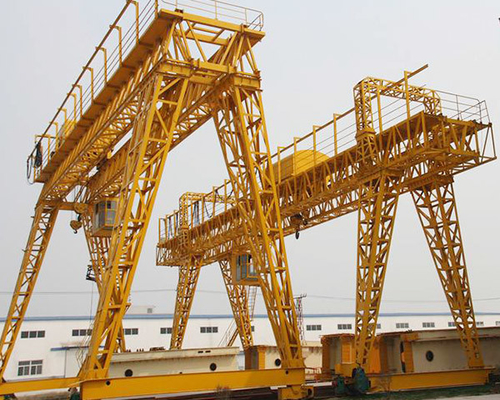

4.There are two type structure for the main girder and leg as optional: truss girder type and box girder type.
5.It is prohibited for lifting melt metal , flammable, explosive, corrosion, overloading,
dust and other dangerous operations.
Double girder gantry crane for factory yard is normally using in open-air warehouse. It normally
accompanied with particular lifting tools using in the container shipyard.
It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance,
high adaptability and so on.
It is composed of beam, support legs, crane traveling mechanism, trolley, electric equipment and so on.

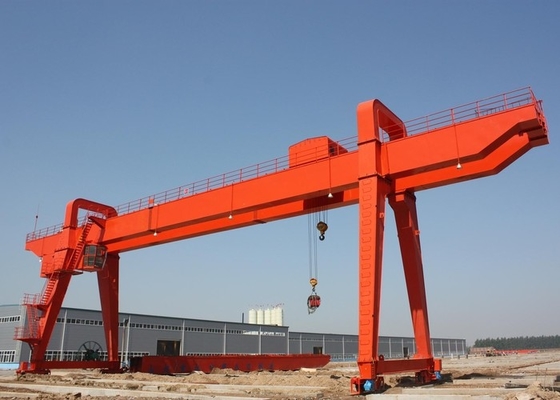

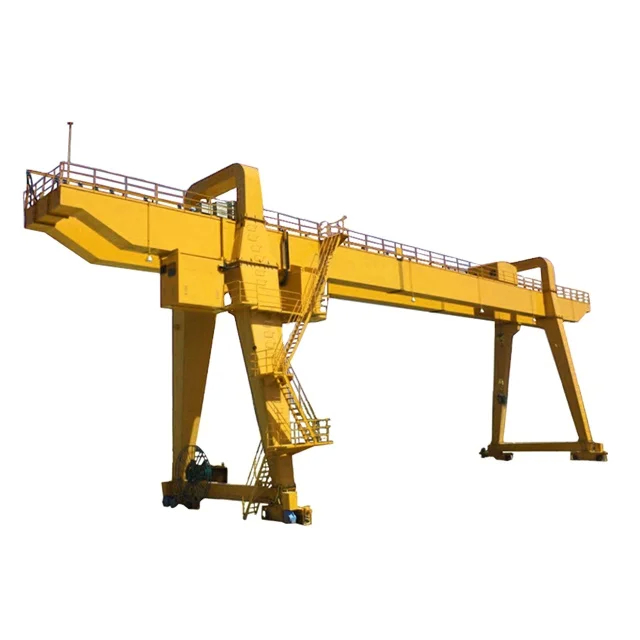

The strong legs shape is like a English Letter ”A”, this design is very benefit when the container pass by
thought the legs.
The control method could be ground control, remote control, cabin control or both.
Packing:
1. Electric parts are packed by high quality plywood crate to reduce distortion in conveying;
2. Main beams, end beams and electric hoist / winch are packed by plastic woven cloth. It can reduce abrasion when transport.
Delivery:
1. If the size of whole crane are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation;
3. Transport ways are based on reducing cost for you and keep the crane in good condition.
