| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD999-4999/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 9999set/year |
| Feature: | Chain Hoist | Max. Lifting Height: | 30m |
|---|---|---|---|
| Control Method: | Wireless Remote Control, Pendant Control | Color: | Yellow, Red, Or As Requirments |
| Power Source: | 3 Phase 380V 50hz Or Be Customized | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Hoisting Speed: | Standard, Single Speed / Double Speed | Usage: | Lifting Products |
| Protection Class: | IP54 | ||
| High Light: | IP54 2 Ton Electric Chain Hoist,HHBD Electric Chain Hoist,Yellow 2 Ton Electric Chain Hoist |
||

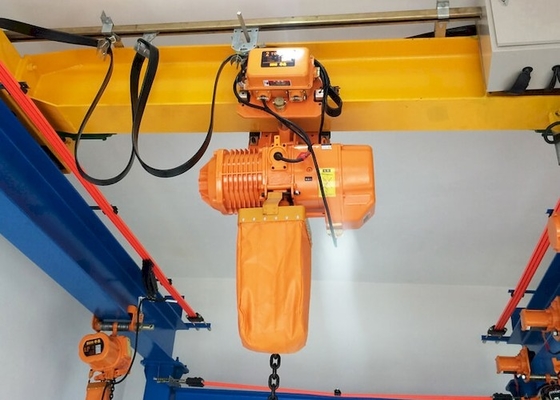

Customized 2 Ton HHBD Electric Chain Hoist With Hook/Motorized Trolley Electric Crane With Electric Trolley
Product Overviews:
Electric Chain hoist is typical unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
Loading capacity: 0.5~50ton or customized design
Lifting height: 3~130m or customized design
Lifting speed: single or double speed 0.54~11.8m/min or customized design
Power supply: 220~690V,50/60HZ,three phase or customized design
Technical Parameter:
| Technical Specification | ||
| 2t Electric Chain Hoist With Hook Type — HHBB02-01SE | ||
| Model | HHBB02-01SE | |
| Capacity(t) | 2 | |
| Standard Lifting Height(m) | 3 | |
| Lifting Speed(m/min) | 6.6 | |
| Lifting Motor | Power(kw) | 3 |
| Rotation Speed(r/min) | 1440 | |
| Phases | 3 | |
| Voltage(v) | 200-660 | |
| Frequency(Hz) | 50/60 | |
| Operating Motor (Electric Trolley Type) |
Power(kw) | 0.4 |
| Rotation Speed(r/min) | 1440 | |
| Operating Speed(m/min) | 11/21 | |
| Phases | 3 | |
| Volatge(v) | 200-660 | |
| Frequency(Hz) | 50/60 | |
| Load Chain Falls | 1 | |
| Chain Specification | Ø10.0 | |
| Test Load(t) | 2.5 | |
| Weight(kg) | 115 | |
| I-Beam(mm) (Electric Trolley Type) |
82-178 | |
| Chain Add Weight Per Meter(Kgs) | 2.3 | |

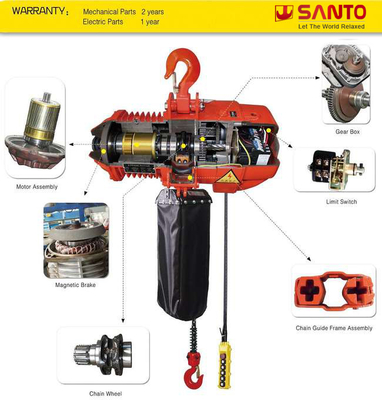

Advantages & Features of Chain Hoist:
* Electric Chain Hoist is highly effective and Compact Aluminum Body
* Electric chain hoist is light weight
* With Extremely durable and reliable Pull Rotor Motor Brake.
* Durable Push-Button Pendant for easy, one-handed operation
* Easy Maintenance, fast, easy, and trouble free
* Long-Life Friction Clutch protects hoist from damage and prevents over winding
* Suction rotary motor brake, precisely and effectively make the hoist stop running, even when low power.
* Low-noise transmission gear: intensive alloy steel are soaked in the oil so that the hoist will serve longer life.
