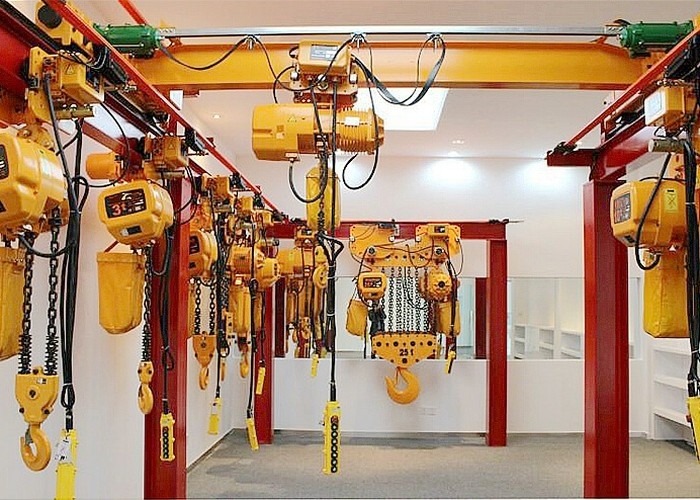

0.1T To 6T Small Electric Remote Control Chain Hoist Light Weight

0.1T To 6T Small Electric Remote Control Chain Hoist Light Weight

  • 0.1T To 6T Small Electric Remote Control Chain Hoist Light Weight
  • 0.1T To 6T Small Electric Remote Control Chain Hoist Light Weight
0.1T To 6T Small Electric Remote Control Chain Hoist Light Weight
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: HHBB
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1200-8000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000set/year
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service Feature: Chain Hoist
Max. Lifting Height: 6m~30m Rated Lifting Moment: Different
Control Method: Wireless Remote Control, Pendant Control Rated Loading Capacity: 0.5-50t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

0.1T Remote Control Chain Hoist


M4 6 ton chain hoist


electric chain hoist with wireless remote control

Lifting 0.1t To 6t Small Size Electric Remote Control Chain Hoist Light Weight


Product Overviews:


"Electric chain hoist", also known as electric chain hoist, is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. The most advanced technology in the world is adopted, with fine workmanship and tight fit between the gears.


The chain hoist series was designed for heavy duty industrial applications, which greatly reduce down time and operational costs. Santo chain hoists tolerate large loads with ease and require little maintenance. They provide more allowance for side pulling, and provide true vertical lift and no extra cost.




Lifting capacity :

0.5~50 ton

Type :

Hook suspension, Mortorized trolley, Manual plain / geared trolley

Sling Type :


Maximum Lifting Height :


Controller :

Pendant control, remote control

Low noise :


Insulation grade :

F class

Working temperature :

-40 ℃ ~ +40 ℃

Power supply :

200V~690V,50~60HZ, 1 or 3 Phase

Safe voltage :


Protection class :


Working grade :


Certification :

ISO9001:2008, CE


Technical Parameters:


Model Loading capacity Lifting speed Lifting height Chain Dia. Power supply
Single speed Dual speed
Ton m/min m mm V,HZ,Phase
0.5-01 0.5 11.8 11.8/2.4 1~130 6.3


Three phase, single phase optional.

01-01 1 6.6 6.9/2.3 7
1.5-01 1.5 8.8 8.9/2.9 10
02-01 2 6.6 6.8/2.3 10
02-02 2 3.3 3.3/1.1 7.1
2.5-01 2.5 5.4 5.4/1.8 11.2
03-01 3 5.4 5.4/1.8 11.2
03-02 3 4.4 4.5/1.5 10
03-03 3 2.2 2.3/0.8 7.1
05-02 5 2.7 2.7/0.9 11.2
7.5-03 7.5 1.8 1.8/0.6 11.2
10-04 10 2.7 2.7/0.9 11.2
15-06 15 1.8 1.8/0.6 11.2
20-08 20 1.4 1.3/0.4 11.2
25-10 25 1.3 1.2/0.4 11.2
30-10 30 1   11.2
35-12 35 0.9   11.2
40-16 40 0.7   11.2
45-16 45 0.6   11.2
50-20 50 0.54   11.2


Trolley model:


0.1T To 6T Small Electric Remote Control Chain Hoist Light Weight 0


Maintenance method of electric chain hoist:


1. The electric hoist that is newly installed or installed after dismantling and inspection should be tested for several times first. But before the installation is completed, do not try to turn on the power.
2. Before normal use, the electric chain hoist should be subjected to a static load test of 125% of the rated load, lifting about 100 mm from the ground, and 10 minutes, and check whether it is normal.
3. The dynamic load test is to perform repeated lifting and left-right movement tests with the rated load weight. After the test, check whether the mechanical transmission parts, electrical parts and connection parts are normal and reliable.
4. In use, it is absolutely forbidden to use it in an environment that is not allowed, and when the rated load and the rated closing times per hour (120 times) are exceeded.
5. During installation, commissioning and maintenance, it is necessary to strictly check whether the limit device is flexible and reliable. When the hook rises to the upper limit position, the distance between the hook shell and the drum shell must be greater than 50mm (10t, 16t, 20t must be greater than 120mm). When the hook is lowered to the lower limit position, the safety circle of the wire rope on the drum should be ensured, and the effective safety circle must be more than 2 circles.
6. It is not allowed to press two flashlight button buttons at the same time that make the electric chain hoist move in opposite directions.
7. After the work is completed, the main gate of the power supply must be opened to cut off the power supply.
8. The electric chain hoist should be operated by a special person, and the operator should fully grasp the safety operation rules, and it is strictly forbidden to slant the hoist.
9. During use, the electric chain hoist must be checked regularly by specialized personnel, and measures should be taken in time if any faults are found, and they should be carefully recorded.
10. When adjusting the braking sliding amount of the electric chain hoist, it should be ensured that under the rated load, the braking sliding amount S≤V/100 (V is the distance that the load can lift steadily in the next minute).



The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters. The characteristics of the electric chain hoist: advanced performance structure, small volume, light weight, reliable performance, convenient operation, wide application range, and heavy lifting. It is very convenient for loading and unloading work, maintenance of equipment, and lifting and transporting goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects.
