| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz 3P | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Hoisting Speed: | Standard, Single Speed / Double Speed | ||
| High Light: | SANTO Electric Chain Hoist,3m Lift Height Electric Chain Hoist,HHBB electric chain block |
||
3m Lifting Height Electric Chain Hoist With Hook , Stable Rapid And Low Noise Electric Chain Hoist
Product Overviews:
"Electric chain hoist", also known as electric chain hoist, is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. The most advanced technology in the world is adopted, the workmanship is fine, and the gears are closely fitted.
The chain hoist range is designed for heavy-duty industrial applications and can significantly reduce downtime and operating costs. Santo chain hoists easily handle large loads and require little maintenance. They provide more headroom for side pulls and provide true vertical lift at no additional cost.
Technical Parameter:
|
Model |
Loading capacity |
Lifting speed |
Lifting height |
Chain Dia. |
Power supply |
|
|
Single speed |
Dual speed |
|||||
|
Ton |
m/min |
m |
mm |
V,HZ,Phase |
||
|
0.5-01 |
0.5 |
11.8 |
11.8/2.4 |
1~130 |
6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
|
01-01 |
1 |
6.6 |
6.9/2.3 |
7 |
||
|
1.5-01 |
1.5 |
8.8 |
8.9/2.9 |
10 |
||
|
02-01 |
2 |
6.6 |
6.8/2.3 |
10 |
||
|
02-02 |
2 |
3.3 |
3.3/1.1 |
7.1 |
||
|
2.5-01 |
2.5 |
5.4 |
5.4/1.8 |
11.2 |
||
|
03-01 |
3 |
5.4 |
5.4/1.8 |
11.2 |
||
|
03-02 |
3 |
4.4 |
4.5/1.5 |
10 |
||
|
03-03 |
3 |
2.2 |
2.3/0.8 |
7.1 |
||
|
05-02 |
5 |
2.7 |
2.7/0.9 |
11.2 |
||
|
7.5-03 |
7.5 |
1.8 |
1.8/0.6 |
11.2 |
||
|
10-04 |
10 |
2.7 |
2.7/0.9 |
11.2 |
||
|
15-06 |
15 |
1.8 |
1.8/0.6 |
11.2 |
||
|
20-08 |
20 |
1.4 |
1.3/0.4 |
11.2 |
||
|
25-10 |
25 |
1.3 |
1.2/0.4 |
11.2 |
||
|
30-10 |
30 |
1 |
|
11.2 |
||
|
35-12 |
35 |
0.9 |
|
11.2 |
||
|
40-16 |
40 |
0.7 |
|
11.2 |
||
|
45-16 |
45 |
0.6 |
|
11.2 |
||
|
50-20 |
50 |
0.54 |
|
11.2 |
||
Structural:
Structural features of electric chain hoist: Electric hoist product structure, the body is made of high-strength drawing shell or die-casting aluminum shell, and is precisely manufactured by thin-wall extrusion molding process, with small size, light weight and high strength. The standard electric chain hoist is equipped with an independent gearbox system, a two-stage coaxial transmission gear mechanism in the sealed gearbox, and a long-life oil bath lubrication system. The electric chain hoist powder metallurgy clutch is used as an overload protection device, and the braking adopts the disc type DC electromagnetic field braking, which has large braking torque, stable, rapid and low noise.
Application :
The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters. The characteristics of the electric chain hoist: advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range, and heavy lifting. It is very convenient for loading and unloading, maintenance of equipment, and lifting of goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects.
Photos:
 |

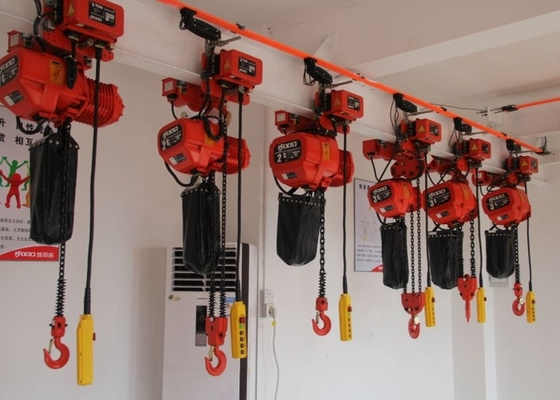

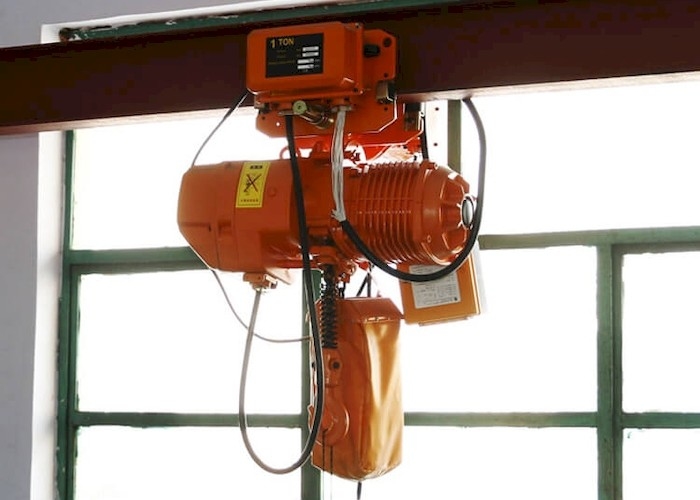

Electric chain hoist with electric trolley
|
Electric chain hoist with manual plain trolley
|
 |
 |
Suspend hook electric chain hoist
|
Low headroom electric chain hoist
|
 |
 |
Heavy duty electric chain hoist
|
