| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 6.6m/Min 2 Ton Electric Hoist,M4 3.3m/Min 2 Ton Electric Hoist,2 ton electric hoist with remote control |
||

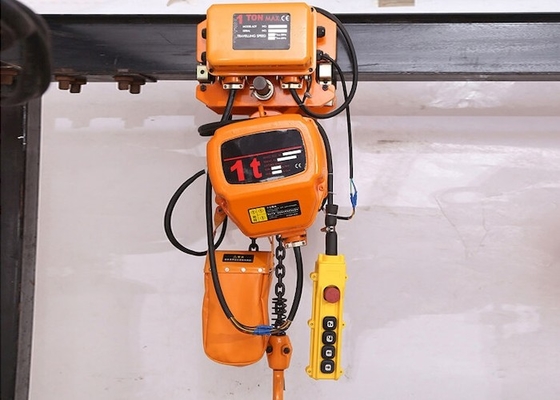

Convenient Operation M4 Working Grade Electric Chain Hoist For Industrial Lifting
Product Overviews:
"Electric chain hoist", also known as electric chain hoist, is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. The most advanced technology in the world is adopted, the workmanship is fine, and the gears are closely fitted.
Specification:
| Model | Loading capacity | Lifting speed | Lifting height | Chain Dia. | Power supply | |
| Single speed | Dual speed | |||||
| Ton | m/min | m | mm | V,HZ,Phase | ||
| 0.5-01 | 0.5 | 11.8 | 11.8/2.4 | 1~130 | 6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
| 01-01 | 1 | 6.6 | 6.9/2.3 | 7 | ||
| 1.5-01 | 1.5 | 8.8 | 8.9/2.9 | 10 | ||
| 02-01 | 2 | 6.6 | 6.8/2.3 | 10 | ||
| 02-02 | 2 | 3.3 | 3.3/1.1 | 7.1 | ||
| 2.5-01 | 2.5 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-01 | 3 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-02 | 3 | 4.4 | 4.5/1.5 | 10 | ||
| 03-03 | 3 | 2.2 | 2.3/0.8 | 7.1 | ||
| 05-02 | 5 | 2.7 | 2.7/0.9 | 11.2 | ||
| 7.5-03 | 7.5 | 1.8 | 1.8/0.6 | 11.2 | ||
| 10-04 | 10 | 2.7 | 2.7/0.9 | 11.2 | ||
| 15-06 | 15 | 1.8 | 1.8/0.6 | 11.2 | ||
| 20-08 | 20 | 1.4 | 1.3/0.4 | 11.2 | ||
| 25-10 | 25 | 1.3 | 1.2/0.4 | 11.2 | ||
| 30-10 | 30 | 1 | 11.2 | |||
| 35-12 | 35 | 0.9 | 11.2 | |||
| 40-16 | 40 | 0.7 | 11.2 | |||
| 45-16 | 45 | 0.6 | 11.2 | |||
| 50-20 | 50 | 0.54 | 11.2 | |||
Advantage and feature:
Application:

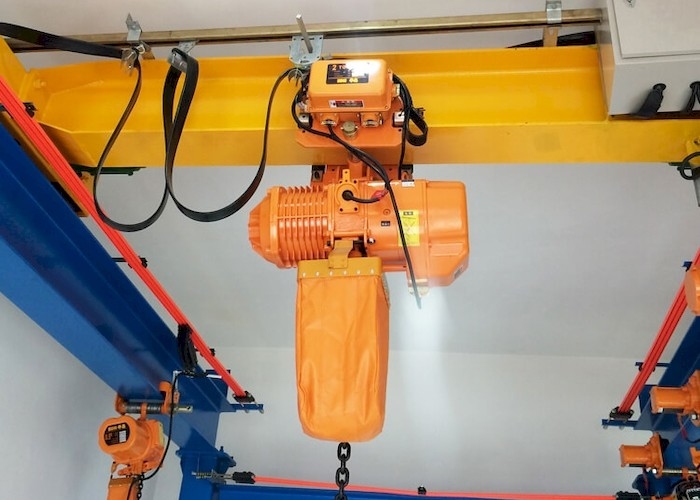

The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters. The characteristics of the electric chain hoist: advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range, and heavy lifting. It is very convenient for loading and unloading, maintenance of equipment, and lifting of goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects.
