| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 690V 2 Ton Electric Chain Hoist With Trolley,Industrial 220V Electric Chain Hoist,CE ISO 2 ton electric trolley hoist |
||

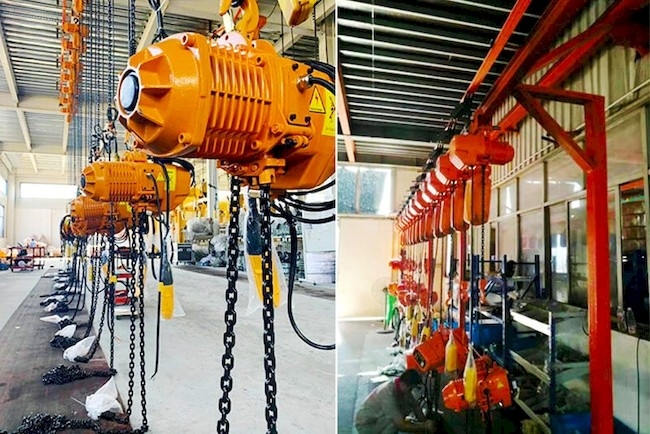

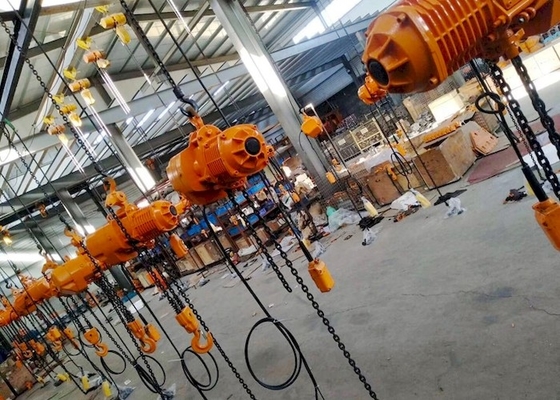

2 Ton Electric Chain Hoist With Trolley CE ISO Certificates , Industrial Electric Hoist
Product Overviews:
The electric chain hoist is a typical case of the unique optional structure shortening the distance between the body and the beam and rail, and is suitable for on-site operations in relatively low buildings or where the effective hoisting space needs to be expanded. It has the characteristics of safe use, reliable quality and long service life, and is widely used in handicraft, light industry, and even some service industries as a tool to improve work efficiency and working conditions. The motor is designed according to the power failure braking system, with two options of constant speed and double speed. The spur gear has a built-in friction clutch coupling to prevent extreme overloading of the hoist. high-strength wearable
The chain hoist range is designed for heavy-duty industrial applications and can significantly reduce downtime and operating costs. Santo chain hoists easily handle large loads and require little maintenance. They provide more headroom for side pulls and provide true vertical lift at no additional cost.
Specification:
| Model | Loading capacity | Lifting speed | Lifting height | Chain Dia. | Power supply | |
| Single speed | Dual speed | |||||
| Ton | m/min | m | mm | V,HZ,Phase | ||
| 0.5-01 | 0.5 | 11.8 | 11.8/2.4 | 1~130 | 6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
| 01-01 | 1 | 6.6 | 6.9/2.3 | 7 | ||
| 1.5-01 | 1.5 | 8.8 | 8.9/2.9 | 10 | ||
| 02-01 | 2 | 6.6 | 6.8/2.3 | 10 | ||
| 02-02 | 2 | 3.3 | 3.3/1.1 | 7.1 | ||
| 2.5-01 | 2.5 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-01 | 3 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-02 | 3 | 4.4 | 4.5/1.5 | 10 | ||
| 03-03 | 3 | 2.2 | 2.3/0.8 | 7.1 | ||
| 05-02 | 5 | 2.7 | 2.7/0.9 | 11.2 | ||
| 7.5-03 | 7.5 | 1.8 | 1.8/0.6 | 11.2 | ||
| 10-04 | 10 | 2.7 | 2.7/0.9 | 11.2 | ||
| 15-06 | 15 | 1.8 | 1.8/0.6 | 11.2 | ||
| 20-08 | 20 | 1.4 | 1.3/0.4 | 11.2 | ||
| 25-10 | 25 | 1.3 | 1.2/0.4 | 11.2 | ||
| 30-10 | 30 | 1 | 11.2 | |||
| 35-12 | 35 | 0.9 | 11.2 | |||
| 40-16 | 40 | 0.7 | 11.2 | |||
| 45-16 | 45 | 0.6 | 11.2 | |||
| 50-20 | 50 | 0.54 | 11.2 | |||
Structural features:
Structural features of electric chain hoist: Electric hoist product structure, the body is made of high-strength drawing shell or die-casting aluminum shell, and is precisely manufactured by thin-wall extrusion molding process, which is small in size, light in weight and high in strength. The standard electric chain hoist has an independent gearbox system, a two-stage coaxial transmission gear mechanism in the sealed gearbox, and a long-life oil bath lubrication system. The electric chain hoist powder metallurgy clutch is used as an overload protection device, and the braking adopts disc DC electromagnetic field braking, which has large braking torque, stable, rapid and low noise.
Application:
The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters. The characteristics of the electric chain hoist: advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range, and heavy lifting. It is very convenient for loading and unloading, maintenance of equipment, and lifting of goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects.
