| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Heavy Duty Low Headroom Chain Hoist,Low Headroom Chain Hoist IP55,IP55 Industrial Material Handling Hoists |
||

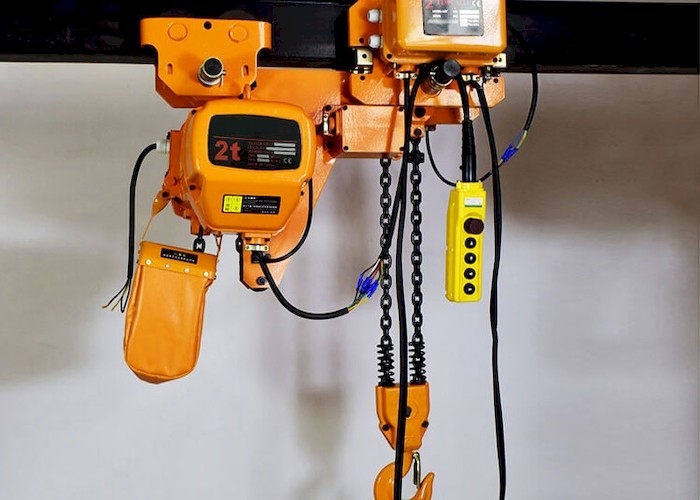

Electric Chain Hoist With Low Headroom, Medium And Heavy Duty Performance For Industrial Lifting And Handling
Product Overviews:
Electric chain hoist can be classified into electric chain hoist with electric trolley, electric chain hosit with manual trolley, hook suspension electric chain hoist, low headroom electric chain hoist.
Consisted of motor, transmission mechanism and chain wheel. Beatifull outlooking, Solid Durable. Inside gears there are hot-quenched then increase the wear resistance of the gear and toughness. Adopt international advanced technology, fine workmanship, gear wheel tight fit.
Parameters:
| Lifting capacity : | 0.5~50 ton |
| Low noise : | 81db |
| Insulation grade : | F class |
| Working temperature : | -40 ℃ ~ +40 ℃ |
| Power supply : | 200V~690V,50~60HZ, 1 or 3 Phase |
| Safe voltage : | 24/36/48V |
| Protection class : | IP55 |
| Working grade : | M4 |
| Model | Loading capacity | Lifting speed | Lifting height | Chain Dia. | Power supply | |
| Single speed | Dual speed | |||||
| Ton | m/min | m | mm | V,HZ,Phase | ||
| 0.5-01 | 0.5 | 11.8 | 11.8/2.4 | 1~130 | 6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
| 01-01 | 1 | 6.6 | 6.9/2.3 | 7 | ||
| 1.5-01 | 1.5 | 8.8 | 8.9/2.9 | 10 | ||
| 02-01 | 2 | 6.6 | 6.8/2.3 | 10 | ||
| 02-02 | 2 | 3.3 | 3.3/1.1 | 7.1 | ||
| 2.5-01 | 2.5 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-01 | 3 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-02 | 3 | 4.4 | 4.5/1.5 | 10 | ||
| 03-03 | 3 | 2.2 | 2.3/0.8 | 7.1 | ||
| 05-02 | 5 | 2.7 | 2.7/0.9 | 11.2 | ||
| 7.5-03 | 7.5 | 1.8 | 1.8/0.6 | 11.2 | ||
| 10-04 | 10 | 2.7 | 2.7/0.9 | 11.2 | ||
| 15-06 | 15 | 1.8 | 1.8/0.6 | 11.2 | ||
| 20-08 | 20 | 1.4 | 1.3/0.4 | 11.2 | ||
| 25-10 | 25 | 1.3 | 1.2/0.4 | 11.2 | ||
| 30-10 | 30 | 1 | 11.2 | |||
| 35-12 | 35 | 0.9 | 11.2 | |||
| 40-16 | 40 | 0.7 | 11.2 | |||
| 45-16 | 45 | 0.6 | 11.2 | |||
| 50-20 | 50 | 0.54 | 11.2 | |||
Adventages:
§ High strength aluminum shell
§ Dual Brake System
§ Upper and Lower Limit Switch
§ Overload Alert
§ Push Button Controls
§ Electric Control Panel Available with Variable Frequency Drive (VFD) for all motions
§ Heavy-Duty Hoist Motor rated for 30-minute duty
§ Load Sheave / Chain Guide
§ Grade 80 load chain
§ Forged carbon steel hook with a heavy-duty hook latch
§ Chain Container
§ Gearbox with alloy steel helical and spur gear reduction
§ Compact size and easy installation

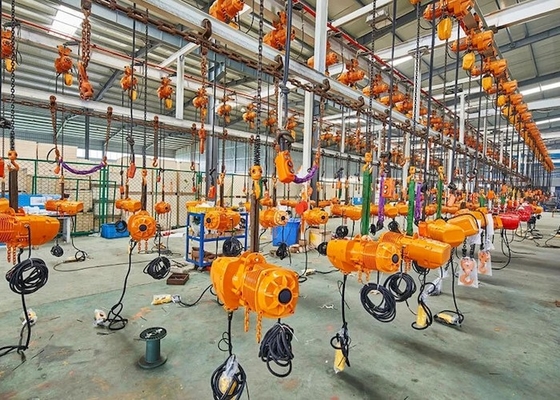

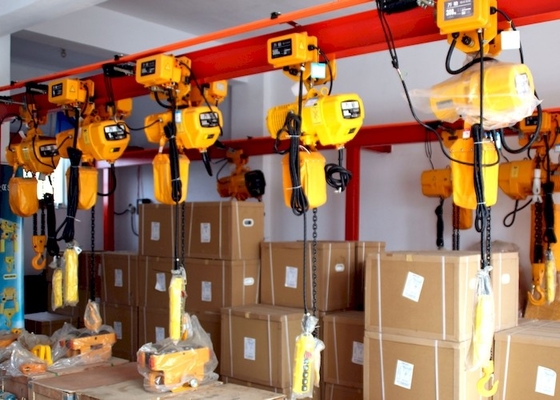

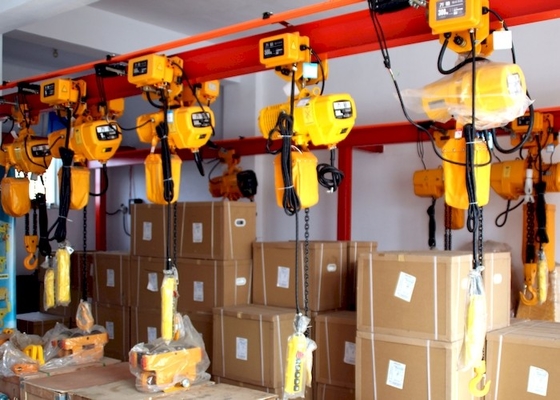

Photos:
