| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD6000-40000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Rated Loading Capacity: | 5-500t | Span: | 5-50m |
|---|---|---|---|
| Max. Lifting Height: | 3~20M | Product Name: | Double Girder Gantry Crane |
| Control Method: | Cabin Control/wire Rope Remote Control | Lifting Mechanism: | Trolley |
| Work Duty: | M5-M7 | Power Source: | 380V 50Hz 3Ph Or Customized |
| Color: | Yellow .Red . Orange Or Customized | Application: | Widely |
| High Light: | 35ton Industrial Gantry Crane,Rail Mounted Industrial Gantry Crane,Gantry Crane With Winch System |
||

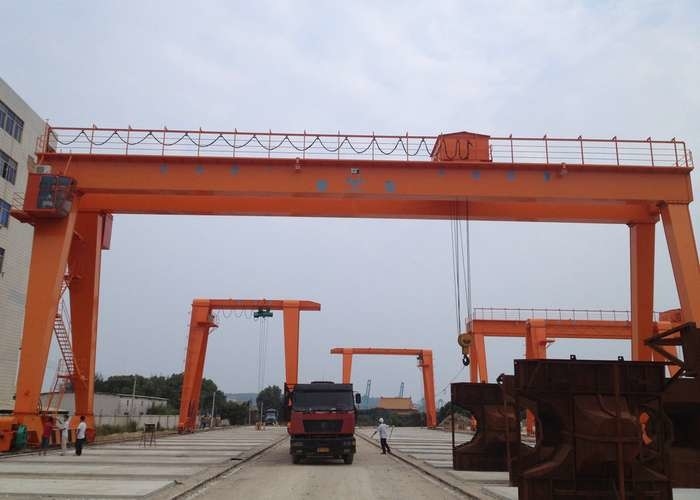

35ton Rail Mounted Industrial Gantry Crane With Winch System
Description:
MG Model Duble Girder Port Gantry Cane is widely used in open warehouses, material stocks area,
cement plant, granite industry, construction industry, engineering industry, railway station to lifting
and load, unloading goods. This type adopts the U model door frame, with a big clearance between
the two legs and a big span. The service life of this crane can be above 20 years.
Lifting capacity: 1t - 50t, max up to 50t;
Span: 7m - 35m;
Work duty: A3 - A8;
Working temperature: ﹣20℃~﹢40℃.
Technical Specification:
| Lifting Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||
| Working Duty | ISO | A3-A8 | ||||||||||||||
| Span | m | 7-35, customized | ||||||||||||||
| Lifting Height | Main hook | m | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||
| Aux. hook | 10.275,11.275 | 10.446,11.446 | 10.73 | 11.73 | 10.918 | 12.918 | ||||||||||
| Speed | Lifting | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||
| Aux. | 14.6 | 15.4 | 15.4 | 10.4 | ||||||||||||
| Trolley traveling | 37.3 | 35.6 | 36.6 | 37 | 36 | |||||||||||
| Crane traveling | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |||||||
| Recommended Tail | 43kg/m | 43kg/m or QU70 | ||||||||||||||
| Power Supply | 3-Phase 380V 50HZ, or as clients' requirement | |||||||||||||||
Features:
Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
Equipped with all the necessary safety device
High reliability component
High work duty, can bearing heavy capacity and long time work
Needn’t any column, runway beam, just travel on the ground
Suit for both of outdoor and indoor
Main electrical parts: Chint, Siemens or Schneider brand
Application:
Double girder gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete and many other industries.
Crane Detail:
Delivery:
