| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | RMG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD15000-100000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/year |
| Condition: | New | Span: | 18-35m |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Port Container Gantry Crane With Spreader |
| Max. Lifting Height: | 12m~21m | Product Name: | Rail Mounted Gantry Crane |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Rated Loading Capacity: | 35-50t |
| Color: | Yellow, Red, Or As Requirments | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Lifting Mechanism: | Open Winch Trolley | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Portable Container Gantry Crane,Mobile Container Gantry Crane,50t Loading Container Gantry Crane |
||
Portable Mobile Container Gantry Crane For Containers
40.5 Ton Container Gantry Crane Rail Mounted For 20ft 40ft Container Loading And Unloding
Description:
Portable container gantry crane is a container-specific crane which is specially produced for small and medium-sized container yards and enterprise container shipments with low operating cost. The main functions are: Loading and unloading the container from the truck on the work site, the operator can continuously load the container.
At the same time, using containers as transit will greatly shorten the waiting time of container trucks for loading, can improve the efficiency of container trucks by 12 to 15 times.
Features:
Advanced Design:
Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.
The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.
The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.
The number of wheels and drive mechanisms can be customized according to your specific application.
All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.
Specification:
Rail mounted container gantry crane drawing:
1.Crane power supply system
2.Trolley power supply system
3.Main girder
4.Trolley assembly
5.Ton board
6. Handrail
7. Electrical box
8.Rail clamping device
9.Bogie
10.Anchor
11.Maintenance crane
12.Anemoscope & lightning conductor
|
Capacity (under the spreader)/t |
35 |
40.5 |
50 |
65 |
||
|
Working class |
A6~A7 |
|||||
|
Span/m |
35 |
|||||
|
Overhung length/m |
12 |
|||||
|
Base distance/m |
16 |
|||||
|
Lifting height/m |
15.4 |
15.4 |
18.2 |
18.2 |
||
|
Speed |
Hoisting/m/min |
Load |
12 |
12 |
18 |
18 |
|
No-load |
24 |
24 |
36 |
36 |
||
|
Trolley travelling/m/min |
60 |
60 |
75 |
75 |
||
|
Crane travelling/m/min |
45 |
45 |
45 |
45 |
||
|
Total power/kw |
~200 |
~230 |
~255 |
~300 |
||
|
Max. working load of wheel |
260 |
265 |
280 |
300 |
||
|
Crane steel rail recommended |
QU70 |
QU70 |
QU70 |
QU80 |
||
|
Power supply |
3AC 380~660V 50/60Hz |
|||||
Application:
RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
Crane Detail:

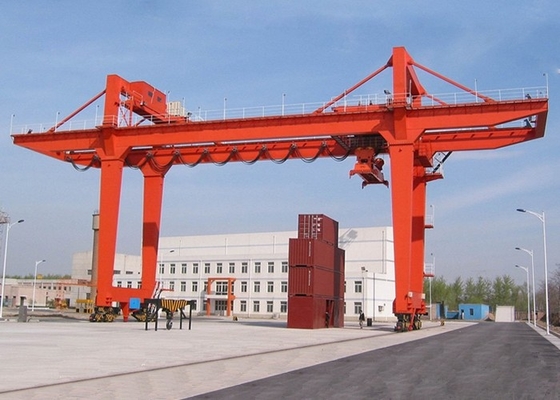

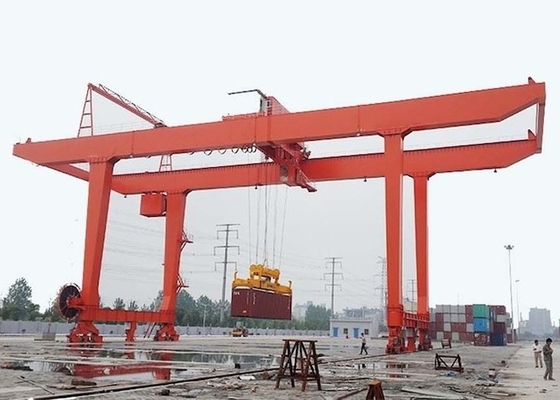

Rail Mounted Container Gantry Crane

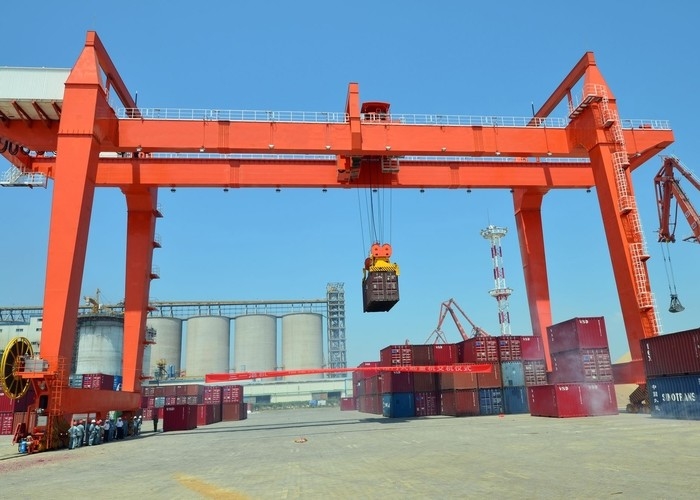

Rail Mounted Container Gantry Cranes
Looking forward to receiving your inquiry with the below detailed information:
1. SWL/ Load capacity:?
2. Span:?
3. Lift Height:?
4. Standard voltage: 380V 50Hz,3p, AC, is it ok?
5. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
