| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | RMG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD50000-100000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 18-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Port Container Gantry Crane With Spreader | Max. Lifting Height: | 12m~21m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 80t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 35-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 65T Container Handling Crane,40.5T Container Handling Crane,660V Gantry Rail Crane |
||
Container Handling Crane Capacity 35 40.5 50 65 Ton Handle Large Containers
Description:
The rail-mounted container gantry crane is operated by the driver in the cab to operate the linkage platform. The cab is generally suspended below the car and runs with the car. All operations of the crane can be realized on the linkage table of the cab. The cart can also be operated on the running side of the cart to facilitate the temporary displacement of the crane. When operating on the running side of the cart, it can achieve electrical interlocking with the main operation linkage platform.
The drive control of rail-mounted container gantry cranes is currently commonly used for AC variable frequency speed regulation systems. The control system mostly adopts communication control, and the inside of the container mostly adopts the wired mode, which is characterized by high speed and high reliability. An optional crane integrated management system can be installed to transmit data wirelessly with the external control room, and to continuously monitor the crane's operating system, diagnose faults and collect data sets by cooperating with the logic control.
Specification:
|
Capacity (under the spreader)/t |
35 |
40.5 |
50 |
65 |
||
|
Working class |
A6~A7 |
|||||
|
Span/m |
35 |
|||||
|
Overhung length/m |
12 |
|||||
|
Base distance/m |
16 |
|||||
|
Lifting height/m |
15.4 |
15.4 |
18.2 |
18.2 |
||
|
Speed |
Hoisting/m/min |
Load |
12 |
12 |
18 |
18 |
|
No-load |
24 |
24 |
36 |
36 |
||
|
Trolley travelling/m/min |
60 |
60 |
75 |
75 |
||
|
Crane travelling/m/min |
45 |
45 |
45 |
45 |
||
|
Total power/kw |
~200 |
~230 |
~255 |
~300 |
||
|
Max. working load of wheel |
260 |
265 |
280 |
300 |
||
|
Crane steel rail recommended |
QU70 |
QU70 |
QU70 |
QU80 |
||
|
Power supply |
3AC 380~660V 50/60Hz |
|||||
1.Crane power supply system
2.Trolley power supply system
3.Main girder
4.Trolley assembly
5.Ton board
6. Handrail
7. Electrical box
8.Rail clamping device
9.Bogie
10.Anchor
11.Maintenance crane
12.Anemoscope & lightning conductor
Advantages:
Standards for rail mounted container gantry cranes:
Application:
RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
Crane Detail:

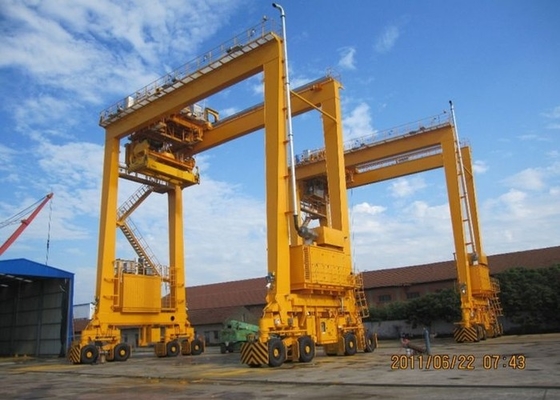

Rubber tyre container gantry crane

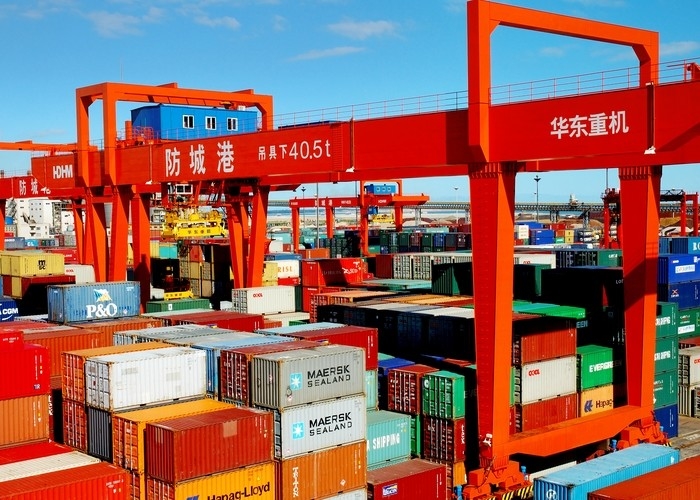

Rail Mounted Container Gantry Cranes
Looking forward to receiving your inquiry with the below detailed information:
1. SWL/ Load capacity:?
2. Span:?
3. Lift Height:?
4. Standard voltage: 380V 50Hz,3p, AC, is it ok?
5. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
