A6 A7 40 Ton Rail Mounted Gantry Crane Seaport RMG Container Cranes

40 Ton Rail Mounted Gantry Crane RMG Crane For Handling Containers In Seaport

Description:

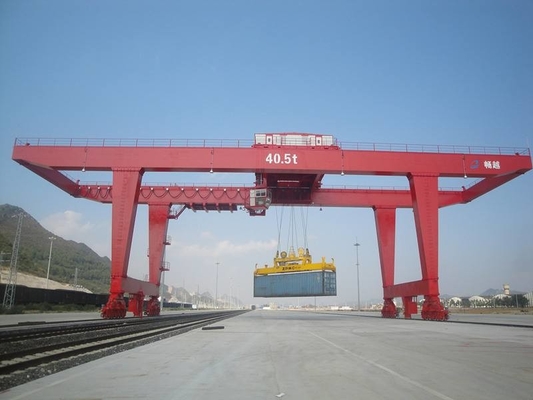

Rail mounted gantry crane or RMG crane, is commonly used for the quick, safe and automated handling of containers. The crane provides high performance, reliability, low operating costs and low energy consumption, playing a key role in facilitating the operations of yard stacking. The gantry crane can be designed with a wide range of capacities and sizes to accommodate different container capacities. The span of the crane is designed according to the rows of containers that need to be crossed.

Container gantry crane is a type of large wharf gantry crane which at container terminals for loading and unloading intermodal containers. It is available with span of 5~8 containers wide (plus a truck width) and with lifting height from 1 over 3 to 1 over 6 containers high.

Container gantry crane composed of a gantry structure that can traverse the length of a wharf or yard on a rail. Instead of general hook, container gantry crane equipped with a specialized container spreader, which will be lowered on top of the container and used for locks onto the container's four corner casting.

Span of 5~8 containers wide (plus a truck width)
Suitable for 40' container, 20' container
Lifting height from 1 over 3 to 1 over 6 containers

Technical Specification:

Rail mounted container gantry crane drawing:

1. Crane power supply system 2. Trolley power supply system 3. Main girder 4.Trolley assembly 5.Ton board 6. Handrail 7. Electrical box 8. Rail clamping device 9. Bogie 10. Anchor 11. Maintenance crane 12. Anemoscope & lightning conductor

Features:

Robust structure
Anti-sway system
Equipped with specific spreader
High reliability components
Accurate spreader positioning
Increased productivity
Smooth operation
Low maintenance care
Low energy consumption

Mechanical feature:

• Double welding box girder, DIN/FEM standard deflection
• Steel tube legs
• Material Fe37 or Fe52
• Whole length CNC cutting for complete web plate, high deflection accuracy
• High quality automatic welding and NDT inspection
• Shot-blasting Sa2.5 for complete girder after welding, stress release
• Epoxy zinc rich high quality painting, 2x2 with 140μm
• 10.9 class High tension bolts mounting between girder and legs, life time safety connection
• Vertical gear motor driving,more safety and smaller space
• High protection class IP55, F class, 40% ED
• End carriage equipped with anti-friction bearings,cellular buffers,derailment protectors
• Cabin Control
• Easy operation
• Professional chairs, adjustable and fully turning
• Round window, good vision
• Two steps push button or joy stick station with emergency stop

Advanced Design:

Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.

The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.

The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.

The number of wheels and drive mechanisms can be customized according to your specific application.

All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.

Advantages:

• Suitable for both port and rail terminals
• Suitable for various yard space conditions
• Increased yard capacity with wider and higher stack possibilities
• Reduction in emissions and noise
• Minimal maintenance
• Electric supply for energy efficiency and reduced running costs

Application:

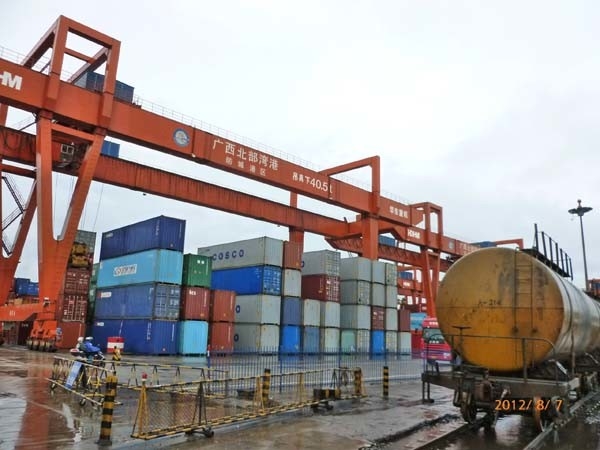

RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
