| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | RMG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD50000-100000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 18-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Port Container Gantry Crane With Spreader | Max. Lifting Height: | 12m~21m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 80t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 35-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | ODM A6 Port Container Crane,Port Container Crane 15.4M,18.2M Lift Container Gantry Cranes |
||
Job Duty A6 Port Container Crane , Container Gantry Cranes With Special Container Spreader
Description:
Rail-mounted gantry cranes or RMG cranes are often used for fast, safe and automated handling of containers. With high performance, reliability, low operating costs and low energy consumption, the crane plays a key role in facilitating yard operations. Gantry cranes can be designed in a variety of capacities and sizes to suit different container capacities. The span of the crane is designed according to the number of rows of containers that need to be traversed.
The container gantry crane is a large quay gantry crane that loads and unloads intermodal containers at the container terminal. It spans 5~8 containers wide (plus truck width) and lifts from 1 over 3 to 1 over 6 containers high.
Container gantry cranes consist of a gantry structure that can traverse the length of a quay or yard on rails. The container gantry crane is not an ordinary hook, but is equipped with a special container spreader, which will be lowered to the top of the container to lock the four corner castings of the container.
Specification:
|
Capacity (under the spreader)/t |
35 |
40.5 |
50 |
65 |
||
|
Working class |
A6~A7 |
|||||
|
Span/m |
35 |
|||||
|
Overhung length/m |
12 |
|||||
|
Base distance/m |
16 |
|||||
|
Lifting height/m |
15.4 |
15.4 |
18.2 |
18.2 |
||
|
Speed |
Hoisting/m/min |
Load |
12 |
12 |
18 |
18 |
|
No-load |
24 |
24 |
36 |
36 |
||
|
Trolley travelling/m/min |
60 |
60 |
75 |
75 |
||
|
Crane travelling/m/min |
45 |
45 |
45 |
45 |
||
|
Total power/kw |
~200 |
~230 |
~255 |
~300 |
||
|
Max. working load of wheel |
260 |
265 |
280 |
300 |
||
|
Crane steel rail recommended |
QU70 |
QU70 |
QU70 |
QU80 |
||
|
Power supply |
3AC 380~660V 50/60Hz |
|||||
1.Crane power supply system
2.Trolley power supply system
3.Main girder
4.Trolley assembly
5.Ton board
6. Handrail
7. Electrical box
8.Rail clamping device
9.Bogie
10.Anchor
11.Maintenance crane
12.Anemoscope & lightning conductor
Features:
Standards for rail mounted container gantry cranes:
Application:
RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
Crane Detail:

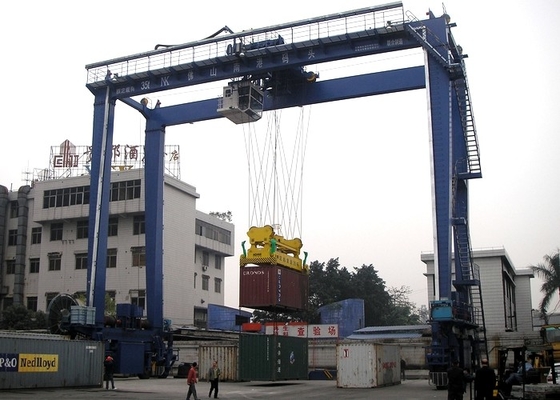

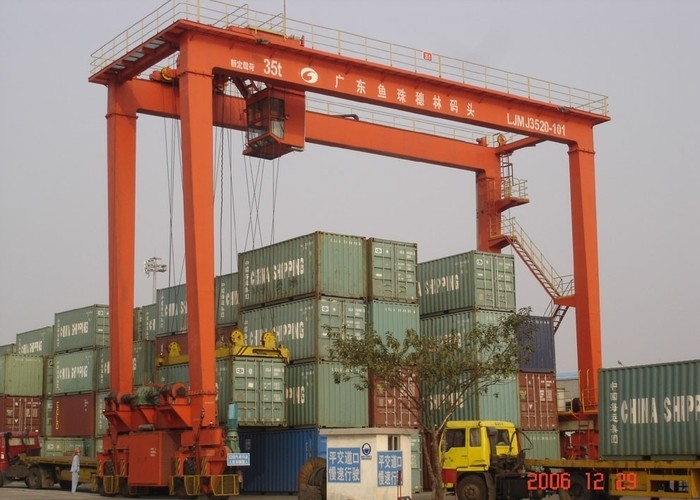

Rubber tyre container gantry crane
Rail Mounted Container Gantry Cranes
Looking forward to receiving your inquiry with the below detailed information:
1. SWL/ Load capacity:?
2. Span:?
3. Lift Height:?
4. Standard voltage: 380V 50Hz,3p, AC, is it ok?
5. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
