35-50T Rail Mounted Stacking Cranes 45m/Min Double Girder Gantry Crane

Double Girder Rail Mounted Gantry Crane RMG Crane For The Quick, Safe And Automated Handling Of Containers

Description:

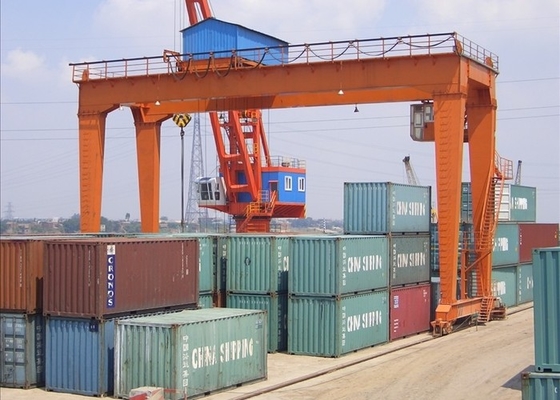

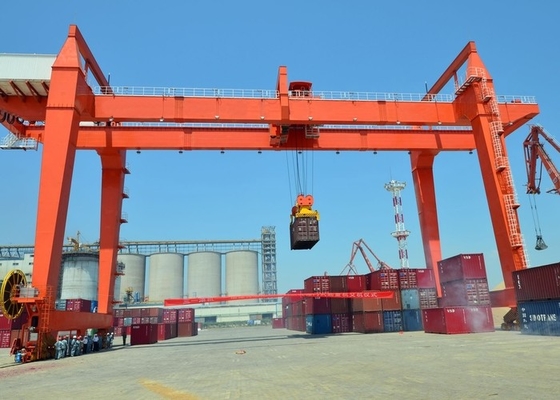

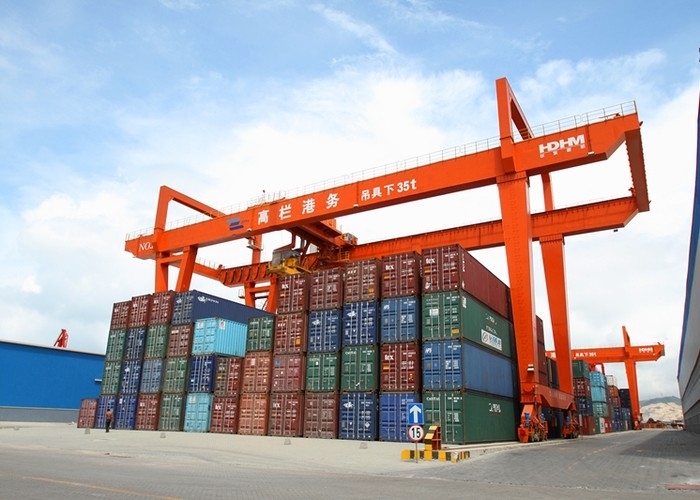

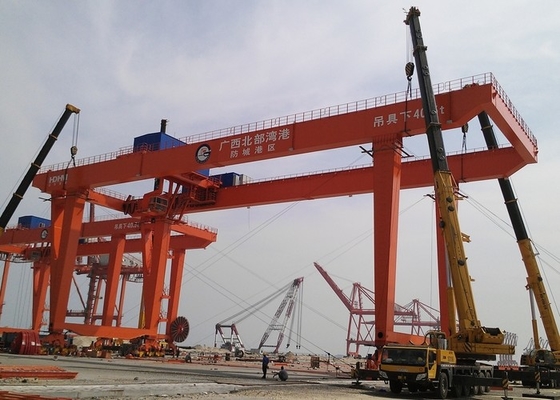

RMG crane, also known as rail mounted gantry crane, is mainly used for container loading and unloading, handling and stacking in container railway transfer yards and container terminals.

Span of 5~8 containers wide (plus a truck width)
Suitable for 40' container, 20' container
Lifting height from 1 over 3 to 1 over 6 containers

Suitable for both port and rail terminals
Suitable for various yard space conditions
Increased yard capacity with wider and higher stack possibilities
Reduction in emissions and noise
Minimal maintenance
Electric supply for energy efficiency and reduced running costs

Technical Specification:

• 1.Crane power supply system
• 2.Trolley power supply system
• 3.Main girder
• 4.Trolley assembly
• 5.Ton board
• 6. Handrail
• 7. Electrical box
• 8.Rail clamping device
• 9.Bogie
• 10.Anchor
• 11.Maintenance crane
• 12.Anemoscope & lightning conductor

Structure of RMG Container Crane:

RMG crane is composed of main beam, rigid and flexible legs, trolley, lifting mechanism, crane operating mechanism, electrical system, operating cab, etc.

Double welding box girder, DIN/FEM standard deflection
Steel tube legs
Material Fe37 or Fe52
Whole length CNC cutting for complete web plate, high deflection accuracy
High quality automatic welding and NDT inspection
Shot-blasting Sa2.5 for complete girder after welding, stress release
Epoxy zinc rich high quality painting, 2x2 with 140μm
10.9 class High tension bolts mounting between girder and legs, life time safety connection
Vertical gear motor driving,more safety and smaller space
High protection class IP55, F class, 40% ED
End carriage equipped with anti-friction bearings,cellular buffers,derailment protectors
Cabin Control
Easy operation
Professional chairs, adjustable and fully turning
Round window, good vision
Two steps push button or joy stick station with emergency stop

Features:

1.Variable Frequency VVVF control, torque balance control technology, CMS intelligent service management system, real-time monitoring of the operating status of the equipment;
2. Electric energy feedback technology, flexible intelligent box matching and lock pin technology, energy saving, convenient and efficient;
3. Optional intelligent optimization control technology for operation track and automatic semi-automatic control technology;
4. Multifunctional tilting cabin protection system, with optional electronic anti-sway system, good anti-sway effect, safe and reliable;
5. The front girder can realize the 80-degree pitch function, which is convenient for ships to enter and exit the port;
6. Various safety measures such as strong wind alarm and safety dynamic scanning are complete.
