Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton

Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton

  • Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton
  • Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton
  • Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton
Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MG MDG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-40000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7-35m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Gantry Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 800t
Product Name: Rail Mounted Gantry Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-800t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Gantry Crane, Portal Crane, Goliath Crane
Type: Heavy Duty Double Girder Gantry Crane Lifting Mechanism: Open Winch Trolley
Lifting Speed: Standard Or As Requirement Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

50 Ton Double Girder Gantry Crane

,

Motorized Travelling Double Girder Gantry Crane

,

40 Ton Double Girder Gantry Crane

Motorized Travelling 40 Ton 5 0ton Double Girder Gantry Crane Manufacture




General Introduction:



The gantry crane is a bridge-type crane in which the bridge is supported on the ground track by the outriggers on both sides. Structurally, it consists of a gantry, a cart running mechanism, a hoisting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported on the workshop or trestle, which is called a semi-gantry crane. The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.



Under normal circumstances, the lifting capacity is less than 50t, the span is less than 35m, and there are no special requirements for use, the single main beam type should be selected. If the width of the gantry leg is required to be large, the working speed is high, or the heavy and long pieces are often lifted, the double-girder gantry crane should be selected.



Detail Features:



DESIGN:Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components.



MOTORS:Axon uses sturdy cylindrical / conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.



GEAR BOXES:Precision flat helical / spur gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil / grease lubrication.



BRAKES:Single / Dual-disc electromagnetic DC brakes featuring automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations allow long maintenance intervals.



ELECTRICAL PANEL:Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuse less circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.



PAINTING:Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of *polymer based quick drying acrylic polycot paint after testing.



Typical Technical Parameters:



Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton 0



Load Capacity Main t 50 75 100 200 320 400 500
Aux 10 20 20 32 50 30 80
Span S(m) 30 35 40 16 22 18 18 28.5
Lifting height Main m Above rail max.22 22 16 12 13 18 3 3/10
Aux Above rail max.24 17.5 13 14 20 34
Lifting speed Main m/min 7.68 6.25 4.62 0.2-1.8 0.14-1.4 0.15-1.5 0.15-1.5
Aux 19.8 9.28 9.28 6 7.5 6 0.6-6
Trolley speed m/min 38.6 38.9 13.1 20 7 10 1.36-13.6
Crane speed m/min 42.7 17.8 16 17 18 1.6-16
Work duty   A5 A5 A5 A5 A5 A5 A5
Track   QU 80 QU 100 QU 120



Advantages:



1. Extremely Rigid Box Girder Frame

  • Compact structure, space saving.

  • Single box girder, adapt advanced welding technology, ISO standard.

  • Material Q235B ( Fe37).

  • 10.9 class High tension bolts mouting between girder and legs, life time safety connection.

  • Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors.

2. Realiable Electric Trolley

  • Rope Drum material Q235B, more realible

  • Durable Rope guide, long life serving

  • Limit Switch and overload protection device help you keep safety

3. Easy to Operation, Precise Position, More Safety

  • LIMIT SWITCHES – To prevent over hoisting & over lowering of hook.

  • PUSH BUTTON STATIONS – Extra light, handy, easy to operate. Wireless Radio remote controls are also conveniently and widely being used now.

  • SOFT STARTS – Electric / Electronic soft start modules electrically coupled to the long travel drives to achieve jerk free, cushioned & smooth starts.

  • MAINTENANCE PLATFORM WITH HAND RAILING – Easy, simple & safe maintenance of the Crane extended partially or along the full length of the girder.

Pictures:

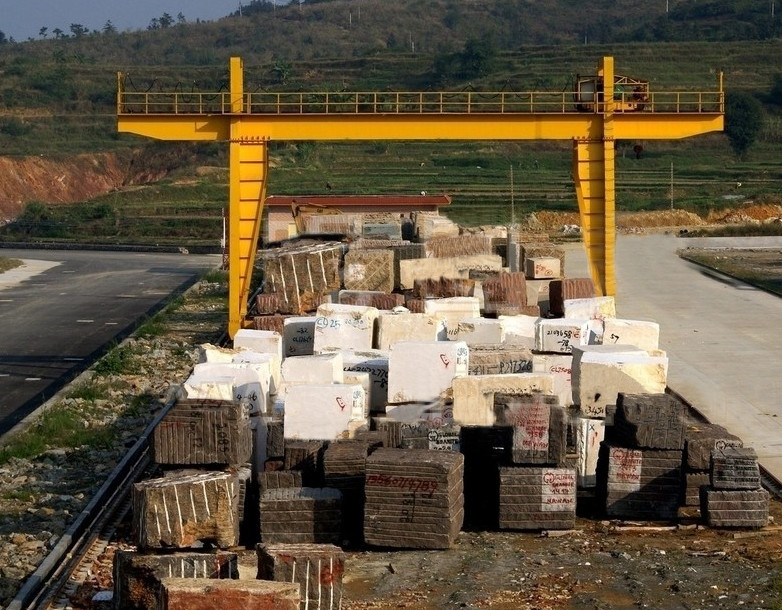

Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton 1

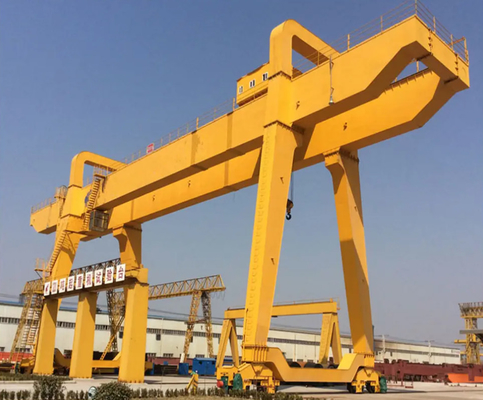

Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton 2

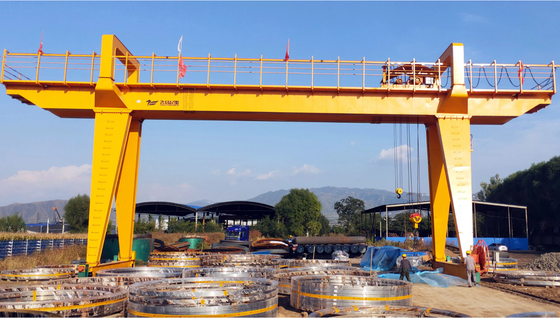

Motorized Travelling Double Girder Gantry Crane 40 Ton 50 Ton 3
