Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle

Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle

  • Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle
  • Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle
  • Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle
Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: QDY, YZ, YZS, QL, QZ, QC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD10000-60000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 45-55 working days
Payment Terms: L/C, T/T
Supply Ability: 4000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7-38m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Electric Overhead Travelling Bridge Crane Max. Lifting Height: 10m~35m
Rated Lifting Moment: Different Max. Lifting Load: 320t
Application: Steel Factory, Ladle Lifting, Casting, Foundry Control Method: Wireless Remote Control,Ground Control,pendant Control
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Double Girder Overhead Crane
Type: Heavy Duty Double Girder Overhead Crane, EOT Crane Lifting Mechanism: Open Winch Trolley
Lifting Speed: Standard Or As Requirement Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

Q345B Material Foundry Ladle Crane

,

Iron Metal Casting Overhead Crane

,

Molten Liquid Steel Ladle Overhead Crane

Q345B Material Foundry Ladle Crane Steel Factory Iron Metal Foundry And Casting Overhead Crane Molten Liquid Steel Ladle




Product Description:

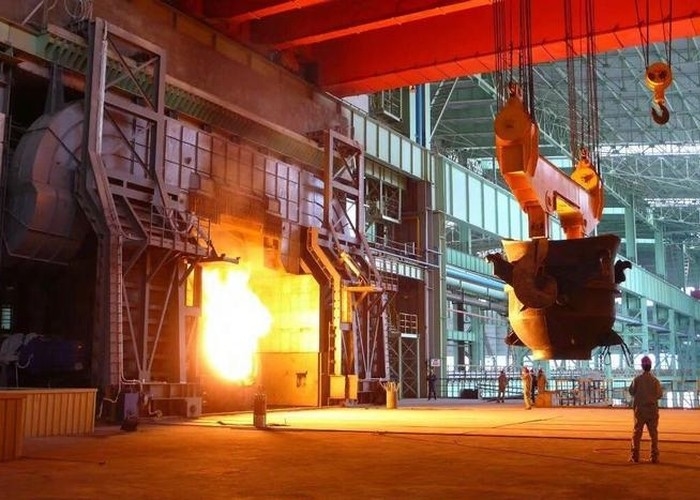

QDY model double beam foundry overhead crane is applied in foundry warehouse of steel factory for loading and unloading hot material or ladle. It is a heavy duty type overhead crane that satisfy frequenty using.
The main hoist is operated at high speed so as to fit in high productivity of heat handing and heat transport. The speed control range speed control ranges can be realized by an alternative of variable stator voltage control or frequency control of motor speed.
The ladle overhead crane designed with safety and reliability, advanced technique, rigid structure, good economy and durability, and easy maintenance.

Capcaty of double beam overhead crane: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 74/20T.

Crane Features:
At SANTO Cranes, we have a deep understanding in the steel mill Industry! We understand what you need and require from your overhead crane at your steel mill, As our engineers have been serving the steel mills for many years. From the process of scraping metal (Scrap Handling Crane), to melting (Charging Crane), to the finished product (Billet Crane) and other process. We have customized service and upgrading plans to prevent down time.
1. Variable speed control for each mechanism
2. Rotary lifting appliance;
3. Variable distance between gantry hooks;
4. Overload limit and warming display;
5. Load weighing and display;
6. Three dimensional lifted point location and display
7. PLC control and fault detection, display, record and printing system
8. Protection of cranes at the same bay from impacting

Cranes for Steel Mill:
There are several kinds of steel mill ladle cranes in Santo as below:
Scrap yard crane
Furnace charging crane
Ladle crane
Railing Cranes
Teeming crane
Tundish crane
Coil slab and billet crane

Technical Specification:
1. QDY Type Steel Mill Double Girder Overhead Crane
Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle 0

Lifting Capacity T 5 10 16/3.2 20/5 32/5 50/10 74/20
Span m 10.5-31.5
Speed Main Hook Lifting m/min 15.5 10.4 10.7 9.8 7.8 7.8 6.1
Aux. Hook Lifting     14.6 15.5 15.5 10.4 9.7
Traveling of Trolley 37.2 43.8 44.6 44.6 42.4 39.3 33.8
Crane travelling 92.7/93.7

92.7/86.5

76/89 76/89 89/75.3 75/76.6 67.3
Operational Model Cabin
Working Duty A7
Power Supply

Three-phase A.C. 380V, 50Hz or customized


2. YZ YZS Type Steel Mill Double Girder Overhead Crane
Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle 1

Lifting Capacity(t) 200/50 225/65 240/80 280/65 320/80
Working Class A7 A7 A7 A7 A7
Span(m) 28 27 22 21 24.5
Lifting Height Main hook 26 32 25 24 28
Auxiliary hook 26 34 27 26 32
Speed Main hook 6 11 7 10 7.5
Auxiliary hook 10 11 9.6 12 10
Main Trolley 41 41 35 30 29
Auxiliary Trolley 38 39.5 38 39 39
Crane 78 84 80 76 58
Dimensions (mm) H 6900 7000 7000 7600 7800
H1 6000 5990 5650 6400 6500
H2 1650 1400 1350 1350 1500
B 1700 17300 18500 19200 19500
B1 10000 10100 11250 12000 12500
B2 3200 3300 3800 3800 5000
Limit dimestion (mm) b 450 450 450 500 500
H3 6000 5800 5500 5900 6000
H4 1000 1000 1500 1500 1700
S1 2600 2500 2800 3200 3300
S2 3000 3000 3200 3500 3500
S3 2000 2200 2400 2400 2600
S4 1600 1600 2800 2800 3000
Max wheel load(kN) 530 550 545 595 650
Steel track recommended QU120
Power source 3-Phase A.C. 380V 50Hz


Crane Photos:

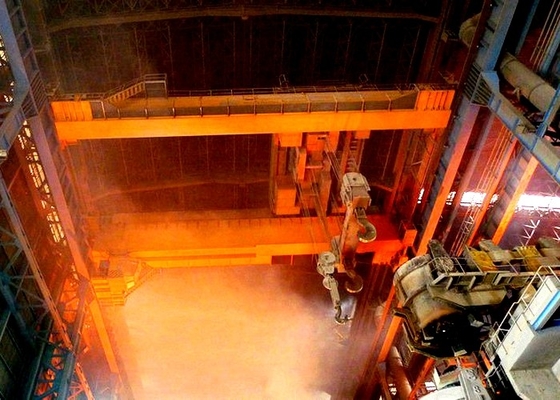

Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle 2

Q345B Material Foundry Ladle Crane Iron Metal Casting Overhead Crane Molten Liquid Steel Ladle 3


Looking forward your kindly inquiry and hope to help your strong business in near future!
