| Place of Origin: | China |
| Brand Name: | Santo |
| Model Number: | YZ |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 30000USD~300000USD |
| Packaging Details: | Foundry Casting: 1 Electric parts are packed by high quality plywood crate to reduce distortion in conveying; 2 Main beams, end beams and electric hoist / winch are packed by plastic woven cloth It can reduce abrasion when transport Delivery: 1 If the size |
| Delivery Time: | 45 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800SETS/YEAR |
| Keywords: | Steel Mill Crane | Crane Feature: | Double Girder Oveherd Crane |
|---|---|---|---|
| Working Duty: | A6 A7 A8 | Lifting Mechanism: | Open Winch Trolley |
| Speed: | Frequency Inverter | Power Source: | 380v-50hz,3Phase,AC Or As Your Demand |
| Main Electrical Parts: | Chint, Schneider Or As Your Request | Color: | On Request |
| High Light: | ODM 70m/Min Steel Mill Crane,ODM 30m/min steel mill crane,Frequency Control Crane Double Girder |
||
Frequency Control Steel Mill Crane For Steel Making Metallurgical Process Industrial
Introduction:
With extensive industry experience and specialized crane technology, Santocrane custom cranes can meet the needs of every aspect of the steel and metal production processing industry. Our custom cranes can be used in harsh conditions and can work well in environments with high temperatures, high levels of dust and high vibration. We can provide the right crane solution for every application in a steel mill. For example, a ladle crane with four crane main girders can handle the ladle safely and efficiently. Double girder overhead cranes are used for the internal delivery of components for casting (such as moulds) and the delivery of castings for further processing. Semi-automatic or fully automatic cranes are available for special storage and metal products such as coils and bars made of aluminium or other metals.
Crane Composition:
The crane is mainly composed of the main trolley, the auxiliary trolley, the bridge frame, the trolley traveling mechanism, the hook group and the electrical control system. The hook group is suspended on the main trolley through the wire rope, and the distance between the two plate hooks is fixed to lift the ladle. The two trolleys can be operated separately to complete various lifting operations, and can also be linked to complete ladle overturning, dumping of residual steel and waste slag. The main and auxiliary lifting mechanism adopts stator voltage regulation and speed regulation. The traveling mechanism of trolley and crane adopts variable frequency speed regulation, the speed regulation ratio is 1:10, and PLC control.

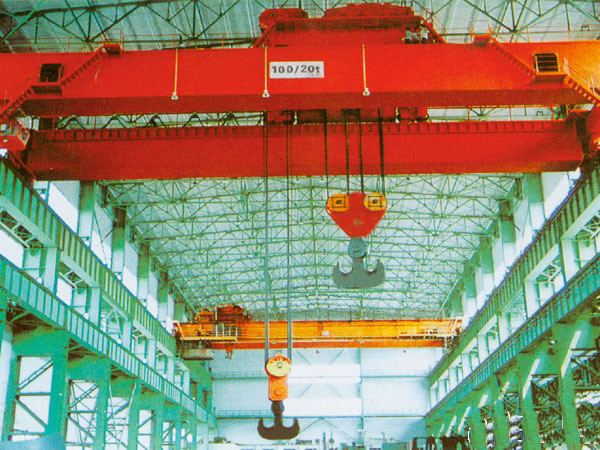

Double Girder Foundry Crane
|
Capacity(t) |
Lifting Height(m) |
Speed (m/min) |
Total Power (kw) |
Recomend Rail (kg/m) |
||||
|
Main/Aux hook |
Aux hook |
Main hook |
Main Hook |
Aux. hook |
Trolley |
Crane |
||
|
16/3.2 |
12 |
15 |
2.5~9 |
9 |
20~38 |
30~70 |
19.4~49.5 |
52.8 |
|
20/5 |
27.5~62.5 |
|||||||
|
25/5 |
28.1~72.9 |
|||||||
|
32/5 |
15 |
17 |
30~80 |
29.7~110 |
63.69 |
|||
|
40/5 |
2~9 |
30~70 |
30.5~111.5 |
|||||
|
50/10 |
2~7 |
9 |
46.4~130 |
|||||
|
63/10 |
21 |
23 |
1.5~7 |
9 |
46.4~157 |
|||
|
75/20 |
26 |
28 |
1.7~7 |
7 |
18~30 |
81~184 |
88.96 |
|
Four Girder Foundry Crane
|
Professional Foundry Crane YZS Model 125/32~320/80T Four beam Cast Bridge Crane |
||||||||||
|
Lifting capacity(t) |
125/32 |
140/32 |
160/32 |
180/50 |
200/50 |
225/65 |
240/80 |
280/80 |
320/80 |
|
|
Working class |
A7 |
|||||||||
|
Span(m) |
19 |
19 |
27 |
28.5 |
28 |
27 |
22 |
22 |
24.5 |
|
|
Lifting height(m) |
Main hook |
24 |
22 |
25 |
27 |
26 |
32 |
25 |
29 |
28 |
|
Auxiliary hook |
26 |
24 |
26 |
29 |
26 |
34 |
27 |
29 |
32 |
|
|
Speed |
Main hook |
7.6 |
7.8 |
9.8 |
7.5 |
6 |
11 |
7 |
12 |
7.5 |
|
Aux. hook |
9.7 |
9.7 |
12 |
10 |
10 |
11 |
9.6 |
10 |
10 |
|
|
Main trolley |
38 |
36 |
43.5 |
40 |
41 |
41 |
35 |
40 |
29 |
|
|
aux.trolley |
39 |
37.5 |
43.5 |
38 |
38 |
39.5 |
38 |
40 |
39 |
|
|
crane |
76 |
73 |
84 |
80 |
78 |
84 |
80 |
80 |
58 |
|
|
Max wheel load(KN) |
505 |
535 |
485 |
525 |
530 |
550 |
545 |
735 |
750 |
|
|
Steel track recommended |
QU120 |
|||||||||
|
Power source |
380V 50HZ 3-phase A.C. |
|||||||||

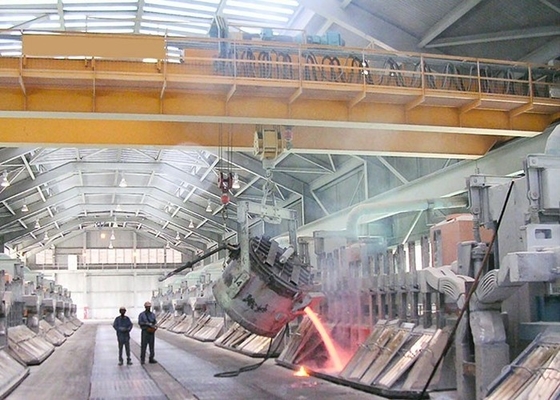

Crane Applications:
