Heavy Duty Steel Mill Crane , Foundry Crane For Steel Making Metallurgical Process Industrial
Introduction:
With extensive industry experience and specialized crane technology, Santocrane custom cranes can meet the needs of every aspect of the steel and metal production processing industry. Our custom cranes can be used in harsh conditions and can work well in environments with high temperatures, high levels of dust and high vibration. We can provide the right crane solution for every application in a steel mill. For example, a ladle crane with four crane main girders can handle the ladle safely and efficiently. Double girder overhead cranes are used for the internal delivery of components for casting (such as moulds) and the delivery of castings for further processing. Semi-automatic or fully automatic cranes are available for special storage and metal products such as coils and bars made of aluminium or other metals.
Features Of Foundry/Casting/Ladle Crane:
Use special motors for the crane. When the ambient temperature exceeds 40 °C, H-class insulated motors are used.
The crane is equipped with two sets of independent brakes (double brake).
The overhead crane is equipped with double limiters with different forms for lifting limit position. When the lifting height is greater than 20m, a lower limit position limiter is installed as required.
The crane is equipped with a load limiter.
The lifting mechanism has forward and reverse contactor failure protection function to prevent the motor from losing power while the brake is still energized, causing a stall.
Take protective measures for the electrical control equipment of the crane.
The protection level of all electrical equipment meets the requirements of relevant standards.
Use a steel wire rope suitable for high temperature occasions with sufficient safety factor.
Sketch & Parameters:
According to user needs and crane operating conditions, the foundry crane generally adopts a double beam single trolley, or a four beam four rail double trolley structure form. For a large tonnage bridge crane, the structure of four beam six rail and double trolley is adopted.
Double Girder Foundry Crane
|
Capacity(t) |
Lifting Height(m) |
Speed (m/min) |
Total Power (kw) |
Recomend Rail (kg/m) |
||||
|
Main/Aux hook |
Aux hook |
Main hook |
Main Hook |
Aux. hook |
Trolley |
Crane |
||
|
16/3.2 |
12 |
15 |
2.5~9 |
9 |
20~38 |
30~70 |
19.4~49.5 |
52.8 |
|
20/5 |
27.5~62.5 |
|||||||
|
25/5 |
28.1~72.9 |
|||||||
|
32/5 |
15 |
17 |
30~80 |
29.7~110 |
63.69 |
|||
|
40/5 |
2~9 |
30~70 |
30.5~111.5 |
|||||
|
50/10 |
2~7 |
9 |
46.4~130 |
|||||
|
63/10 |
21 |
23 |
1.5~7 |
9 |
46.4~157 |
|||
|
75/20 |
26 |
28 |
1.7~7 |
7 |
18~30 |
81~184 |
88.96 |
|
Four Girder Foundry Crane
|
Professional Foundry Crane YZS Model 125/32~320/80T Four beam Cast Bridge Crane |
||||||||||
|
Lifting capacity(t) |
125/32 |
140/32 |
160/32 |
180/50 |
200/50 |
225/65 |
240/80 |
280/80 |
320/80 |
|
|
Working class |
A7 |
|||||||||
|
Span(m) |
19 |
19 |
27 |
28.5 |
28 |
27 |
22 |
22 |
24.5 |
|
|
Lifting height(m) |
Main hook |
24 |
22 |
25 |
27 |
26 |
32 |
25 |
29 |
28 |
|
Auxiliary hook |
26 |
24 |
26 |
29 |
26 |
34 |
27 |
29 |
32 |
|
|
Speed |
Main hook |
7.6 |
7.8 |
9.8 |
7.5 |
6 |
11 |
7 |
12 |
7.5 |
|
Aux. hook |
9.7 |
9.7 |
12 |
10 |
10 |
11 |
9.6 |
10 |
10 |
|
|
Main trolley |
38 |
36 |
43.5 |
40 |
41 |
41 |
35 |
40 |
29 |
|
|
aux.trolley |
39 |
37.5 |
43.5 |
38 |
38 |
39.5 |
38 |
40 |
39 |
|
|
crane |
76 |
73 |
84 |
80 |
78 |
84 |
80 |
80 |
58 |
|
|
Max wheel load(KN) |
505 |
535 |
485 |
525 |
530 |
550 |
545 |
735 |
750 |
|
|
Steel track recommended |
QU120 |
|||||||||
|
Power source |
380V 50HZ 3-phase A.C. |
|||||||||

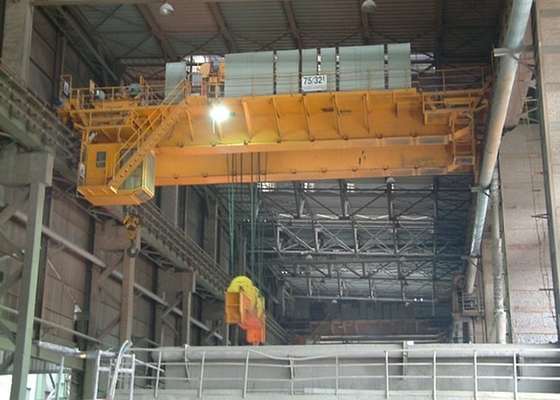

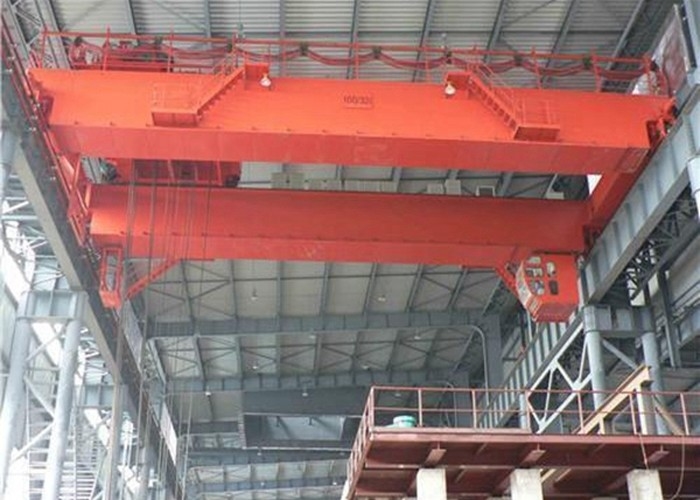

Crane Detail Showing:
