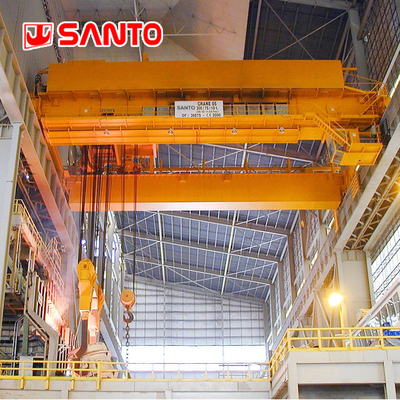

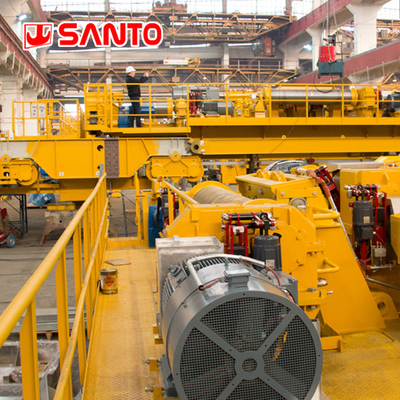

16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making

16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making

  • 16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making
  • 16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making
  • 16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making
  • 16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making
16/3.2T To 75/20T A6 A7 A8 Industrial Overhead Crane For Steel Making
Product Details:
Place of Origin: China
Brand Name: Santo
Certification: ISO
Model Number: YZ
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 30000USD~300000USD
Packaging Details: Foundry Casting: 1 Electric parts are packed by high quality plywood crate to reduce distortion in conveying; 2 Main beams, end beams and electric hoist / winch are packed by plastic woven cloth It can reduce abrasion when transport Delivery: 1 If the size
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 800SETS/YEAR
Contact Now
Detailed Product Description
Crane Feature: Double Girder Oveherd Crane Working Duty: A6 A7 A8
Lifting Mechanism: Open Winch Trolley Speed: Frequency Inverter
Power Source: 380v-50hz,3Phase,AC Or As Your Demand Main Electrical Parts: Chint, Schneider Or As Your Request
Color: Yellow, Red, Or As Requirments Condition: New
Crane Structure: Box-type Girder Crane Traveling Speed: 0-100 M/min
Hoisting Speed: 0-20 M/min Keywords: Steel Mill Crane
Lifting Capacity: 1-500 Tons Lifting Speed: Standard Or As Requirement
Power Supply: 220V~480V 50/60Hz Safety Features: Overload Protection, Emergency Stop, Limit Switch
Span: 10-50 Meters Warranty: 12 Months
High Light:

16/3.2T Industrial Overhead Crane

,

A8 Industrial Overhead Crane

,

75/20T A6 double girder crane

Steelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting Foundry




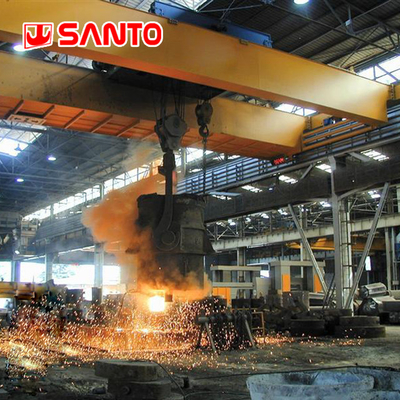

Introduction:



Foundry crane is one of the key equipment in the steelmaking process, applicable to metal smelting workshops to lift and move hot molten metal. Foundry overhead cranes work in harsh environments with high temperature, high dust and harmful gases, and are generally suitable for ambient temperatures of -10 °C to + 60 °C. They are special cranes designed to meet JB / T7688.1-95 and JB / T7688.15-9 standards.



Foundry crane is the main equipment during the steelmaking process. The crane is applicable in steelmaking workshop to transfer liquid steel or metal under the high temperature, dusty working environment. With the develpment of steel industry, the foundry crane need to work more frenquently. So the foundry crane must be safety and reliable, and even when some parts demaged, Our crane can keep the ladle not falling or rollover. The framework of our crane is simple, and can be maintained very quickly in order to ensure the steelmaking production continuously.

Now we can supply foundry crane capacity up to 630 ton. Also according to customer's requirement we can provide special design.



Steelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting Foundry





Sketch & Parameters:



According to user needs and crane operating conditions, the foundry crane generally adopts a double beam single trolley, or a four beam four rail double trolley structure form. For a large tonnage bridge crane, the structure of four beam six rail and double trolley is adopted.



Double Girder Foundry Crane



Steelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting Foundry

Capacity(t) Lifting Height(m) Speed (m/min) Total Power (kw) Recomend Rail (kg/m)
Main/Aux hook Aux hook Main hook Main Hook Aux. hook Trolley Crane
16/3.2 12 15 2.5~9 9 20~38 30~70 19.4~49.5 52.8
20/5 27.5~62.5
25/5 28.1~72.9
32/5 15 17 30~80 29.7~110 63.69
40/5 2~9 30~70 30.5~111.5
50/10 2~7 9 46.4~130
63/10 21 23 1.5~7 9 46.4~157
75/20 26 28 1.7~7 7 18~30 81~184 88.96



Four Girder Foundry Crane



Steelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting Foundry



Professional Foundry Crane YZS Model 125/32~320/80T Four beam Cast Bridge Crane
Lifting capacity(t) 125/32 140/32 160/32 180/50 200/50 225/65 240/80 280/80 320/80
Working class A7
Span(m) 19 19 27 28.5 28 27 22 22 24.5
Lifting height(m) Main hook 24 22 25 27 26 32 25 29 28
Auxiliary hook 26 24 26 29 26 34 27 29 32
Speed Main hook 7.6 7.8 9.8 7.5 6 11 7 12 7.5
Aux. hook 9.7 9.7 12 10 10 11 9.6 10 10
Main trolley 38 36 43.5 40 41 41 35 40 29
aux.trolley 39 37.5 43.5 38 38 39.5 38 40 39
crane 76 73 84 80 78 84 80 80 58
Max wheel load(KN) 505 535 485 525 530 550 545 735 750
Steel track recommended QU120
Power source 380V 50HZ 3-phase A.C.



Features Of Foundry/Casting/Ladle Crane:

  1. Use special motors for the crane. When the ambient temperature exceeds 40 °C, H-class insulated motors are used.

  2. The crane is equipped with two sets of independent brakes (double brake).

  3. The overhead crane is equipped with double limiters with different forms for lifting limit position. When the lifting height is greater than 20m, a lower limit position limiter is installed as required.

  4. The crane is equipped with a load limiter.

  5. The lifting mechanism has forward and reverse contactor failure protection function to prevent the motor from losing power while the brake is still energized, causing a stall.

  6. Take protective measures for the electrical control equipment of the crane.

  7. The protection level of all electrical equipment meets the requirements of relevant standards.

  8. Use a steel wire rope suitable for high temperature occasions with sufficient safety factor.

Advantages:

  • Reasonable structure
  • Favorable performance
  • Soft starting and stopping
  • Safe and reliable traveling
  • Low noise, commodious cabin and good view
  • Convenient maintenance, excellent exchangeability for parts and components
  • Energy saving, reduce energy consumption
  • Using transducer for travelling or traversing crane to realize step speed or stepless speed change
  • Primer and finishing paint
  • Crane structure: steel box type

Steelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting FoundrySteelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting Foundry

Steelmaking Metallurgical process Industrial Overhead Crane for Steel Scrap Ladle Teeming Tundish Charging CCM Casting Foundry
