| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | QDY, YZ, YZS, QL, QZ, QC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD10000-60000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-38m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Electric Overhead Travelling Bridge Crane | Max. Lifting Height: | 10m~35m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 320t |
| Application: | Steel Factory, Ladle Lifting, Casting, Foundry | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Double Girder Overhead Crane |
| Type: | Heavy Duty Double Girder Overhead Crane, EOT Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | IP44 Steel Mill Cranes,IP54 Steel Mill Cranes,QDY steel plant crane |
||
Heavy Duty Safe And Reliable Steel Mill Cranes For Steel And Iron Works
Introduction:

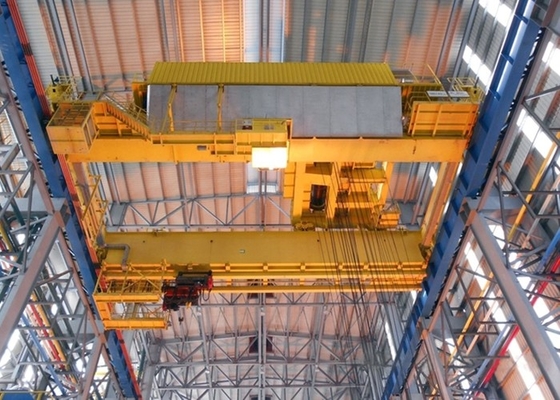

With extensive industry experience and specialized crane technology, Santocrane custom cranes can meet the needs of every aspect of the steel and metal production and processing industries. Our custom cranes can be used in harsh conditions and can work well in environments with high temperatures, high levels of dust and high vibration. We can provide the right crane solution for every application in a steel mill. For example, a ladle crane with four crane main girders can handle the ladle safely and efficiently. Double girder overhead cranes are used for the internal delivery of components for casting (such as moulds) and the delivery of castings for further processing. Semi-automatic or fully automatic cranes can be used for special storage and metal products such as coils and bars made of aluminium or other metals.
Crane Features:

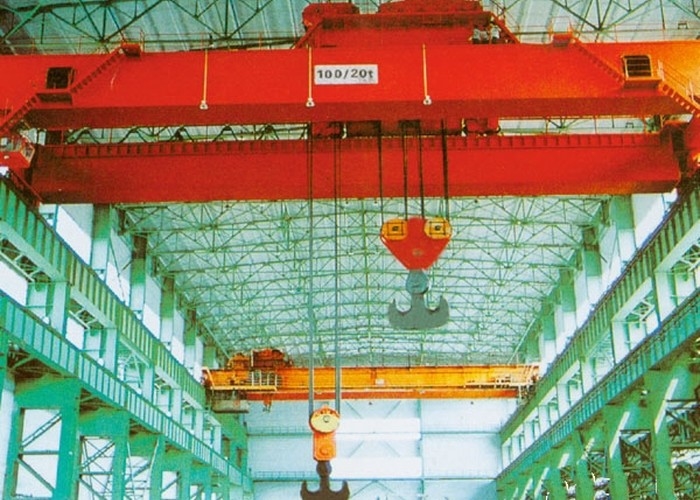

At SANTO Cranes, we have a deep understanding in the steel mill Industry! We understand what you need and require from your overhead crane at your steel mill, As our engineers have been serving the steel mills for many years. From the process of scraping metal (Scrap Handling Crane), to melting (Charging Crane), to the finished product (Billet Crane) and other process. We have customized service and upgrading plans to prevent down time.
Special used in steel plant.
Smooth starting and stopping.
Safe and reliable traveling, long life.
Heat-resistant electrical equipment and wiring.
Crane drive: IP54 or IP44, level F insulation
High quality with competitive price.
Technical Specification:
1. QDY Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity | T | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | |
| Span | m | 10.5-31.5 | |||||||
| Speed | Main Hook Lifting | m/min | 15.5 | 10.4 | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
| Aux. Hook Lifting | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
| Traveling of Trolley | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 39.3 | 33.8 | ||
| Crane travelling | 92.7/93.7 |
92.7/86.5 |
76/89 | 76/89 | 89/75.3 | 75/76.6 | 67.3 | ||
| Operational Model | Cabin | ||||||||
| Working Duty | A7 | ||||||||
| Power Supply |
Three-phase A.C. 380V, 50Hz or customized |
||||||||
2. YZ YZS Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity(t) | 200/50 | 225/65 | 240/80 | 280/65 | 320/80 | |
| Working Class | A7 | A7 | A7 | A7 | A7 | |
| Span(m) | 28 | 27 | 22 | 21 | 24.5 | |
| Lifting Height | Main hook | 26 | 32 | 25 | 24 | 28 |
| Auxiliary hook | 26 | 34 | 27 | 26 | 32 | |
| Speed | Main hook | 6 | 11 | 7 | 10 | 7.5 |
| Auxiliary hook | 10 | 11 | 9.6 | 12 | 10 | |
| Main Trolley | 41 | 41 | 35 | 30 | 29 | |
| Auxiliary Trolley | 38 | 39.5 | 38 | 39 | 39 | |
| Crane | 78 | 84 | 80 | 76 | 58 | |
| Dimensions (mm) | H | 6900 | 7000 | 7000 | 7600 | 7800 |
| H1 | 6000 | 5990 | 5650 | 6400 | 6500 | |
| H2 | 1650 | 1400 | 1350 | 1350 | 1500 | |
| B | 1700 | 17300 | 18500 | 19200 | 19500 | |
| B1 | 10000 | 10100 | 11250 | 12000 | 12500 | |
| B2 | 3200 | 3300 | 3800 | 3800 | 5000 | |
| Limit dimestion (mm) | b | 450 | 450 | 450 | 500 | 500 |
| H3 | 6000 | 5800 | 5500 | 5900 | 6000 | |
| H4 | 1000 | 1000 | 1500 | 1500 | 1700 | |
| S1 | 2600 | 2500 | 2800 | 3200 | 3300 | |
| S2 | 3000 | 3000 | 3200 | 3500 | 3500 | |
| S3 | 2000 | 2200 | 2400 | 2400 | 2600 | |
| S4 | 1600 | 1600 | 2800 | 2800 | 3000 | |
| Max wheel load(kN) | 530 | 550 | 545 | 595 | 650 | |
| Steel track recommended | QU120 | |||||
| Power source | 3-Phase A.C. 380V 50Hz | |||||
Advanced Design:
QDY Type Double Girder Overhead Crane can also achieve remote control through telemetry and remote control technology, to ensure that the equipment can be used in high dust, high pollution, high temperature and other harsh environment, improve its adaptability and greatly expand its work range.
Considering the lifting objects of metallurgical cranes are relatively complex, including liquid metal, nuclear materials, large equipment, etc., so for the safety of personnel and equipment, it is necessary to install safety brakes in the main lifting mechanism of metallurgical cranes, through the mechanical control of hydraulic mechanism.
When the QDY Type Double Girder Overhead Crane starts, the safety brake works first, and the working brake on the high-speed shaft starts working again. When the metallurgical crane brake, the working brake brake, the safety brake brake according to the preset time delay. In this way, it can be ensured that when the transmission part in the transmission link is damaged or broken, the object being hoisted is in a safe state.
Composition:
The crane is mainly composed of five parts: main trolley, auxiliary trolley, bridge frame, trolley traveling mechanism, hook group and electrical control system. The hook group is suspended on the main trolley by the wire rope, the distance between the two plate hooks is fixed, and the ladle is lifted. The two trolleys can be operated separately to complete various lifting operations, and can also be linked to complete ladle overturning, dumping of residual steel, and waste slag operations. The main and auxiliary lifting mechanism adopts stator voltage regulation and speed regulation. The traveling mechanism of the trolley and the crane adopts the frequency conversion speed regulation, the speed regulation ratio is 1:10, and the PLC is controlled.
Looking forward your kindly inquiry and hope to help your strong business in near future!
