QDY Type Double Girder Overhead Crane For Metallurgy Steel Mill With Double Hook For Ladle Handling
Product Description:
QDY Type Double Girder Overhead Crane weight are widely used in the smelting industry to convey, pour and charge the liquid hot metal in the process of smelting, and the lifting capacity of the ladle overhead crane is from 5 to 320tons.
QDY Type Double Girder Overhead Crane weight utilized for medium to heavy fabrication. These overhead cranes are ideally suited to casting factory. QDY Type Double Girder Overhead Cranes are used to move steel or iron ladles in steel smelting workshop with high temperature and a lot of dust.Corrventional scheme:using the closed cab. QDY Type Double Girder Overhead Crane weight is widely used in the smelting industry to convey, pour and charge the liquid hot metal in the process of smelting.
Capcaty of QDY double beam overhead crane: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 74/20T.
Technical Specification:
1. QDY Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity | T | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | |
| Span | m | 10.5-31.5 | |||||||
| Speed | Main Hook Lifting | m/min | 15.5 | 10.4 | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
| Aux. Hook Lifting | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
| Traveling of Trolley | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 39.3 | 33.8 | ||
| Crane travelling | 92.7/93.7 |
92.7/86.5 |
76/89 | 76/89 | 89/75.3 | 75/76.6 | 67.3 | ||
| Operational Model | Cabin | ||||||||
| Working Duty | A7 | ||||||||
| Power Supply |
Three-phase A.C. 380V, 50Hz or customized |
||||||||
2. YZ YZS Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity(t) | 200/50 | 225/65 | 240/80 | 280/65 | 320/80 | |
| Working Class | A7 | A7 | A7 | A7 | A7 | |
| Span(m) | 28 | 27 | 22 | 21 | 24.5 | |
| Lifting Height | Main hook | 26 | 32 | 25 | 24 | 28 |
| Auxiliary hook | 26 | 34 | 27 | 26 | 32 | |
| Speed | Main hook | 6 | 11 | 7 | 10 | 7.5 |
| Auxiliary hook | 10 | 11 | 9.6 | 12 | 10 | |
| Main Trolley | 41 | 41 | 35 | 30 | 29 | |
| Auxiliary Trolley | 38 | 39.5 | 38 | 39 | 39 | |
| Crane | 78 | 84 | 80 | 76 | 58 | |
| Dimensions (mm) | H | 6900 | 7000 | 7000 | 7600 | 7800 |
| H1 | 6000 | 5990 | 5650 | 6400 | 6500 | |
| H2 | 1650 | 1400 | 1350 | 1350 | 1500 | |
| B | 1700 | 17300 | 18500 | 19200 | 19500 | |
| B1 | 10000 | 10100 | 11250 | 12000 | 12500 | |
| B2 | 3200 | 3300 | 3800 | 3800 | 5000 | |
| Limit dimestion (mm) | b | 450 | 450 | 450 | 500 | 500 |
| H3 | 6000 | 5800 | 5500 | 5900 | 6000 | |
| H4 | 1000 | 1000 | 1500 | 1500 | 1700 | |
| S1 | 2600 | 2500 | 2800 | 3200 | 3300 | |
| S2 | 3000 | 3000 | 3200 | 3500 | 3500 | |
| S3 | 2000 | 2200 | 2400 | 2400 | 2600 | |
| S4 | 1600 | 1600 | 2800 | 2800 | 3000 | |
| Max wheel load(kN) | 530 | 550 | 545 | 595 | 650 | |
| Steel track recommended | QU120 | |||||
| Power source | 3-Phase A.C. 380V 50Hz | |||||
Crane Features:
At SANTO Cranes, we have a deep understanding in the steel mill Industry! We understand what you need and require from your overhead crane at your steel mill, As our engineers have been serving the steel mills for many years. From the process of scraping metal (Scrap Handling Crane), to melting (Charging Crane), to the finished product (Billet Crane) and other process. We have customized service and upgrading plans to prevent down time.
Special used in steel plant.
Smooth starting and stopping.
Safe and reliable traveling, long life.
Heat-resistant electrical equipment and wiring.
Crane drive: IP54 or IP44, level F insulation
High quality with competitive price.
Advanced Design:
QDY Type Double Girder Overhead Crane can also achieve remote control through telemetry and remote control technology, to ensure that the equipment can be used in high dust, high pollution, high temperature and other harsh environment, improve its adaptability and greatly expand its work range.
Considering the lifting objects of metallurgical cranes are relatively complex, including liquid metal, nuclear materials, large equipment, etc., so for the safety of personnel and equipment, it is necessary to install safety brakes in the main lifting mechanism of metallurgical cranes, through the mechanical control of hydraulic mechanism.
When the QDY Type Double Girder Overhead Crane starts, the safety brake works first, and the working brake on the high-speed shaft starts working again. When the metallurgical crane brake, the working brake brake, the safety brake brake according to the preset time delay. In this way, it can be ensured that when the transmission part in the transmission link is damaged or broken, the object being hoisted is in a safe state.
Cranes We Supply for Steel Mill:
There are several kinds of steel mill ladle cranes in Santo as below:
Scrap yard crane
Furnace charging crane
Ladle crane
Railing Cranes
Teeming crane
Tundish crane
Coil slab and billet crane

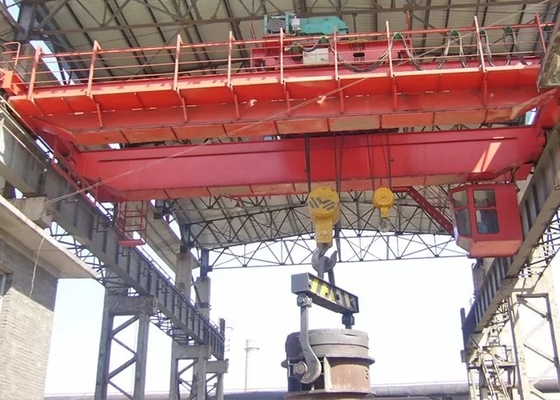

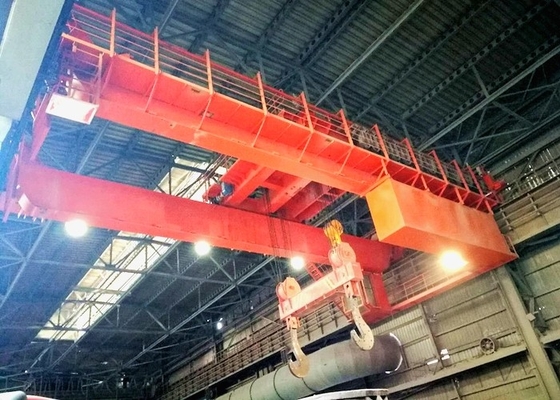

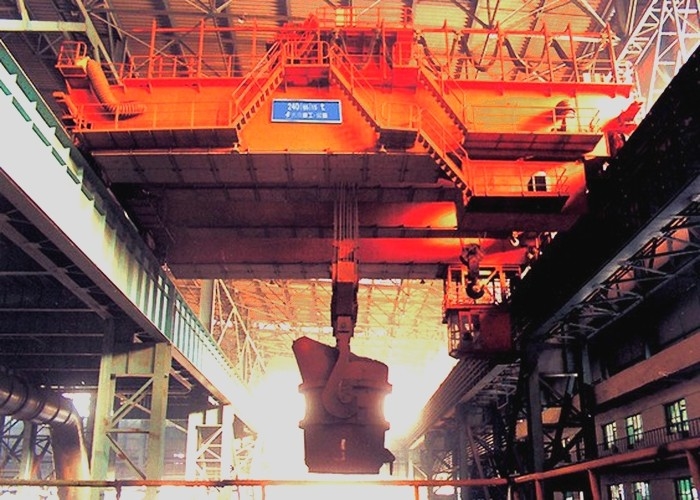

Crane Photos:
Looking forward your kindly inquiry and hope to help your strong business in near future!
