50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane

50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane

  • 50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane
  • 50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane
  • 50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane
50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD15000-100000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 45-55 working days
Payment Terms: L/C, T/T
Supply Ability: 1000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 18-35m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Port Container Gantry Crane With Spreader Max. Lifting Height: 12m~21m
Rated Lifting Moment: Different Max. Lifting Load: 80t
Product Name: Rail Mounted Gantry Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 35-50t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Gantry Crane, Portal Crane, Goliath Crane
Type: Heavy Duty Double Girder Gantry Crane Lifting Mechanism: Open Winch Trolley
Lifting Speed: Standard Or As Requirement Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

Rail Mounted Container Gantry Crane

,

10Ton Lifting Container Gantry Crane

,

RMG Port Container Crane

50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane




Description:



Container gantry cranes are suitable for handling, loading and unloading containers in railway station yards, ports, takeaways, etc. This type of crane uses a U-shaped frame, which is divided into two types:



One is the rail-mounted gantry crane, and the other is the tire-mounted gantry crane. The clear space for the container to move to the sides is greater. The whole crane moves on rails mounted on the ground or directly on the ground, faster and more stable. The power supply is a cable reel. The whole job duty is A6, we can design non-standard according to your request.



Features:

  • Robust structure
  • Anti-sway system
  • Equipped with specific spreader
  • High reliability components
  • Accurate spreader positioning
  • Increased productivity
  • Smooth operation
  • Low maintenance care
  • Low energy consumption

Advanced Design:



Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.

The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.

The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.

The number of wheels and drive mechanisms can be customized according to your specific application.

All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.



Specification:



Rail mounted container gantry crane drawing:



50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane 0

  • 1.Crane power supply system

  • 2.Trolley power supply system

  • 3.Main girder

  • 4.Trolley assembly

  • 5.Ton board

  • 6. Handrail

  • 7. Electrical box

  • 8.Rail clamping device

  • 9.Bogie

  • 10.Anchor

  • 11.Maintenance crane

  • 12.Anemoscope & lightning conductor

Capacity (under the spreader)/t

35

40.5

50

65

Working class

A6~A7

Span/m

35

Overhung length/m

12

Base distance/m

16

Lifting height/m

15.4

15.4

18.2

18.2

Speed

Hoisting/m/min

Load

12

12

18

18

No-load

24

24

36

36

Trolley travelling/m/min

60

60

75

75

Crane travelling/m/min

45

45

45

45

Total power/kw

~200

~230

~255

~300

Max. working load of wheel

260

265

280

300

Crane steel rail recommended

QU70

QU70

QU70

QU80

Power supply

3AC 380~660V 50/60Hz



Application:



RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.



Crane Detail:

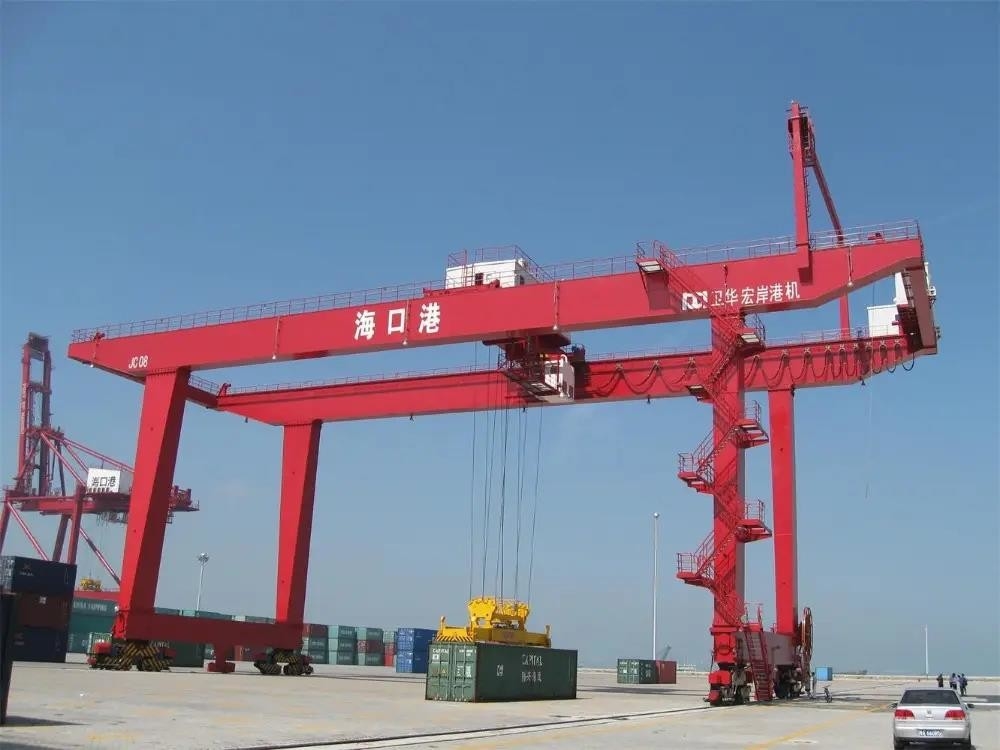

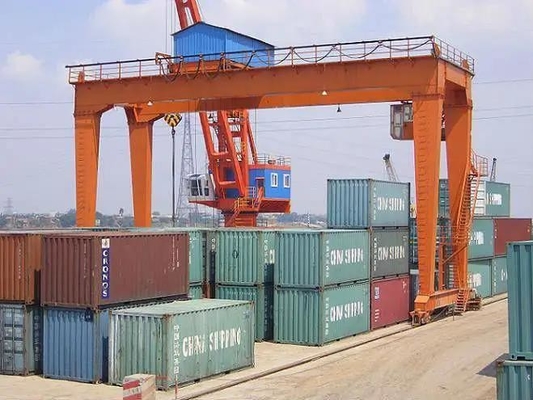

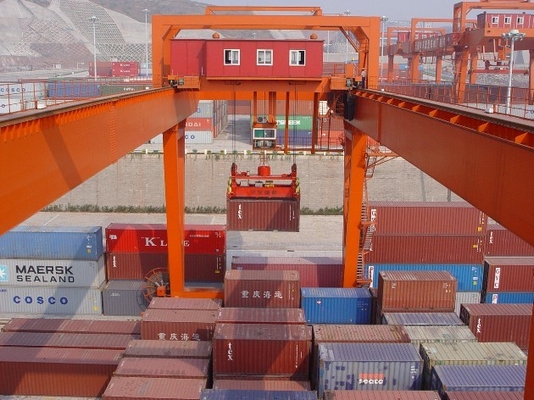

Rail Mounted Container Gantry Crane



50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane 1





Container Crane Rail Mounted Gantry Crane Price



Rail Mounted Container Gantry Cranes



Container Crane Rail Mounted Gantry Crane Price







Looking forward to receiving your inquiry with the below detailed information:



50/ 10 Ton Lifting Container 20' 40' RMG Rail Mounted Container Gantry Crane 4



1. SWL/ Load capacity:?
2. Span:?
3. Lift Height:?
4. Standard voltage: 380V 50Hz,3p, AC, is it ok?
5. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
