| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD6000-40000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Double Girder Traveling Gantry Crane 50ton,Outdoor Traveling Gantry Crane,Rail Mounted Gantry Crane 100ton |
||

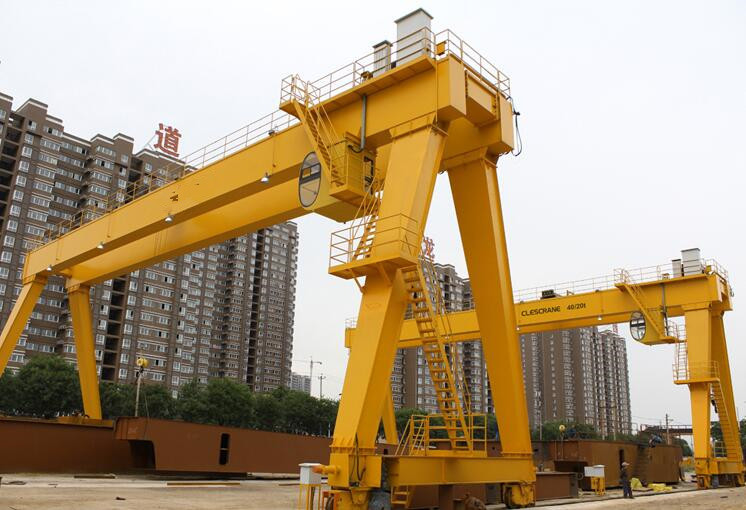

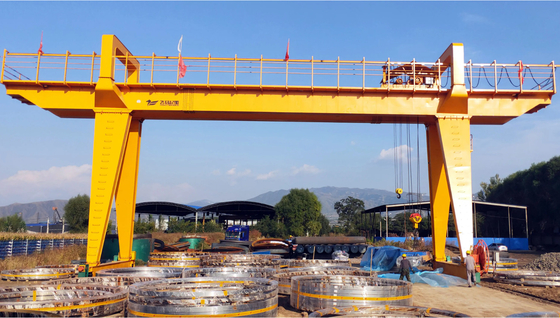

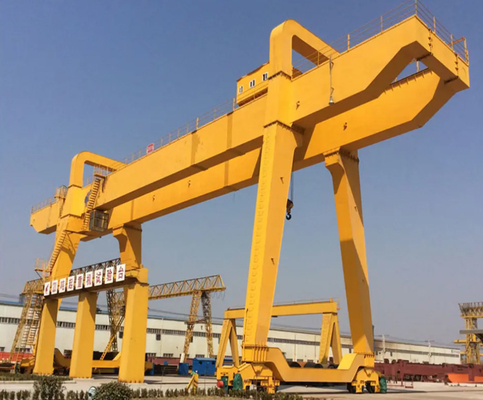

Description:
The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane with the same lifting capacity, and the cost is also higher. According to the structure of the main beam, it can be divided into two forms: box beam and truss. Generally, a box-shaped structure is used.
Features:
1. Adopting to double girder box-type welded structures in order to enlarge working space.
2. Using anisotropic rail cable conductive device.
3. Different modes of power supply can be chosen such as cable reels and sliding wire mode.
4. With reasonable structure and price, it can improve the safety and efficiency.
5. Light dead weight and strong rigidity.
6. All the components conform to standardization, systematization, and generalization.
7. Heavy load capacity.
8. Large span length and strong practicability.
9. Easy installation and maintenance, inspection with utmost care before shipped.
10. Adapting to many working occasions.
Technical Specification:
| Lifting Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||
| Working Duty | ISO | A3-A8 | ||||||||||||||
| Span | m | 7-35, customized | ||||||||||||||
| Lifting Height | Main hook | m | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||
| Aux. hook | 10.275,11.275 | 10.446,11.446 | 10.73 | 11.73 | 10.918 | 12.918 | ||||||||||
| Speed | Lifting | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||
| Aux. | 14.6 | 15.4 | 15.4 | 10.4 | ||||||||||||
| Trolley traveling | 37.3 | 35.6 | 36.6 | 37 | 36 | |||||||||||
| Crane traveling | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |||||||
| Recommended Tail | 43kg/m | 43kg/m or QU70 | ||||||||||||||
| Power Supply | 3-Phase 380V 50HZ, or as clients' requirement | |||||||||||||||
Application:
Double girder gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete warehouse, rail station, stock yard and shipyard, and many other industries.
Crane Detail:
|
|
| Crane travelling motor | Girder cutting |
| Crane traveling motor include YZR/YZP/Three in-one model, brand is Wuxi Xindali, Hongda/Boneng/SEW | Main girder are divided into two or more sections, convenient for transport by container, and assemble with strong bolts |
|
|
| Wheel bogie | Steel structure |
| Equipped with high quality forged wheel, strong crane wheel cover and famous brand motor | Q235/Q345 carbon structural steel. Main beam with strong box type and standard deflection |
|
|
| Open winch trolley | Electrical components |
| With heavy capacity and high working duty, was developed specifically for lifting that requires accuracy and smooth movement | For crane and winch power supply, usually we equipped Schneider, ABB, Siemens brand. Inverter equipped Yaskawa brand |
Delivery:
Looking forward to receiving your inquiry with the below detailed information:
1. Boxed type or trussed? The type? (Single girder, double girder or as recommend)
2. SWL/ Load capacity:?
3. Span:?
4. Lift Height:?
5. Need Cantilever, if need, how long:?
6. Standard voltage: 380V 50Hz,3p, AC, is it ok?
7. Request for speed: ?
8. Need us to provide the rail system and power supply? if need, please tell us the long crane travel distance!
9. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
