| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | RMG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD15000-100000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 18-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Port Container Gantry Crane With Spreader | Max. Lifting Height: | 12m~21m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 80t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 35-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Rail Mounted Container Gantry Crane 45T,RMG Rail Mounted Container Gantry Crane,45T Material Handling Crane |
||
RMG Rail Mounted Container Gantry Crane 45T Material Handling Crane
Description:
Container gantry cranes are suitable for handling, loading and unloading containers in railway station yards, ports, takeaways, etc. This type of crane uses a U-shaped frame, which is divided into two types:
One is the rail-mounted gantry crane, and the other is the tire-mounted gantry crane. The clear space for the container to move to the sides is greater. The whole crane moves on rails mounted on the ground or directly on the ground, faster and more stable. The power supply is a cable reel. The whole job duty is A6, we can design non-standard according to your request.
Features:
Advanced Design:
Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.
The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.
The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.
The number of wheels and drive mechanisms can be customized according to your specific application.
All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.
Specification:
Rail mounted container gantry crane drawing:
1.Crane power supply system
2.Trolley power supply system
3.Main girder
4.Trolley assembly
5.Ton board
6. Handrail
7. Electrical box
8.Rail clamping device
9.Bogie
10.Anchor
11.Maintenance crane
12.Anemoscope & lightning conductor
|
Capacity (under the spreader)/t |
35 |
40.5 |
50 |
65 |
||
|
Working class |
A6~A7 |
|||||
|
Span/m |
35 |
|||||
|
Overhung length/m |
12 |
|||||
|
Base distance/m |
16 |
|||||
|
Lifting height/m |
15.4 |
15.4 |
18.2 |
18.2 |
||
|
Speed |
Hoisting/m/min |
Load |
12 |
12 |
18 |
18 |
|
No-load |
24 |
24 |
36 |
36 |
||
|
Trolley travelling/m/min |
60 |
60 |
75 |
75 |
||
|
Crane travelling/m/min |
45 |
45 |
45 |
45 |
||
|
Total power/kw |
~200 |
~230 |
~255 |
~300 |
||
|
Max. working load of wheel |
260 |
265 |
280 |
300 |
||
|
Crane steel rail recommended |
QU70 |
QU70 |
QU70 |
QU80 |
||
|
Power supply |
3AC 380~660V 50/60Hz |
|||||
Application:
RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
Crane Detail:

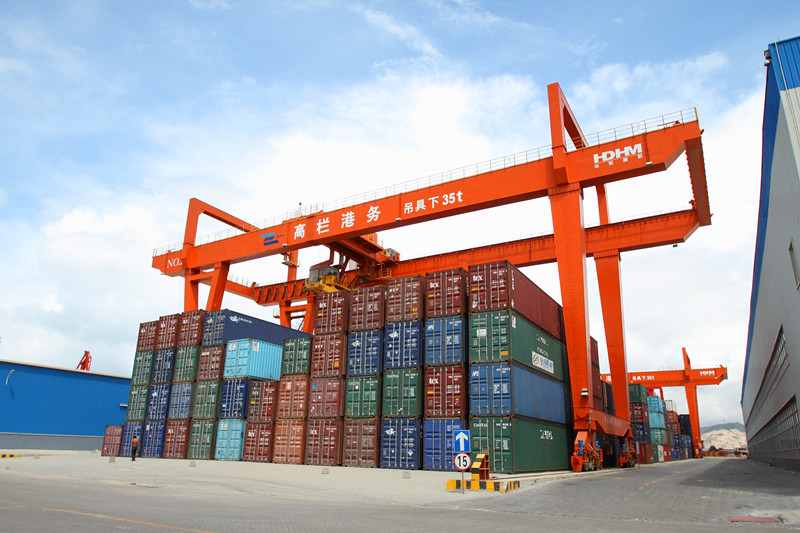

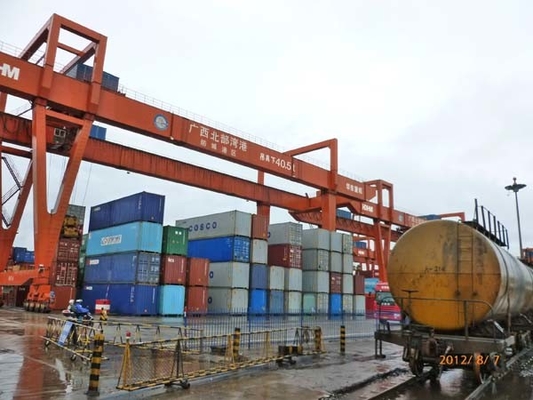

Rail Mounted Container Gantry Crane

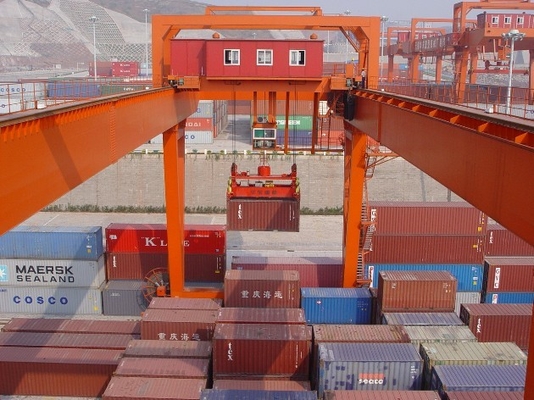

Rail Mounted Container Gantry Cranes
Looking forward to receiving your inquiry with the below detailed information:
1. SWL/ Load capacity:?
2. Span:?
3. Lift Height:?
4. Standard voltage: 380V 50Hz,3p, AC, is it ok?
5. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
