| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD500-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 3.2Ton Electric Chain Hoist,Electric Chain Hoist With Motor Trolley,30m Electric Chain Hoist |
||
3.2Ton Workshop Using Yellow Collor Electric Chain Hoist With Motor Trolley
Electric Chain Hoist, Chain Block, Compact Structure Electric Chain Hoist
Electric Chain Hoist is a typical case of unique optional structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside relatively low buildings or on the sites where expansion of effective hoisting spaces is required. Featured by safe usage, reliable quality, long service life, it is widely used in handicraft industry and light industries, even some service industry, serve as a tool for improving working efficiency and labor condition. The motor is designed according to power cut brake system, has normal speed, double speed two options. The spur gear is built in with friction clutch coupling, prevent the hoist from extreme over-load. The high-strength wearable
The chain hoist series was designed for heavy duty industrial applications, which greatly reduce down time and operational costs. Santo chain hoists tolerate large loads with ease and require little maintenance. They provide more allowance for side pulling, and provide true vertical lift and no extra cost.
| Lifting capacity : | 0.5~50 ton |
| Type : | Hook suspension, Mortorized trolley, Manual plain / geared trolley |
| Sling Type : | Chain |
| Maximum Lifting Height : | 130m |
| Controller : | Pendant control, remote control |
| Low noise : | 81db |
| Insulation grade : | F class |
| Working temperature : | -40 ℃ ~ +40 ℃ |
| Power supply : | 200V~690V,50~60HZ, 1 or 3 Phase |
| Safe voltage : | 24/36/48V |
| Protection class : | IP55 |
| Working grade : | M4 |
| Certification : | ISO9001:2008, CE |
Trolley model:
Applications:
Electric Chain Hoists are high quality products built for long service in industrial applications.
Electric chain hoist is widely used in factories, warehouse, workshop, harbour, docks, especially in raising working efficiency and improving working condition.
Advantages & Design Features:
With suspension hook. push, geared or electric trolley.
Standard lift height 3 m, control cable 2.5m
Operating voltage 220-440V, 50/60Hz, 1-3 phase
Low voltage control 36V is standard.
High efficient energy-saving motor, asbestos free brake system.
Light weight, compact and solid body case.
Top and bottom hooks are fitted with safety latches as standard.
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
Solid chain bucket.
Super strong surface hardened chain
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
Overload protection and thermal protection.
| Model | Loading capacity | Lifting speed | Lifting height | Chain Dia. | Power supply | |
| Single speed | Dual speed | |||||
| Ton | m/min | m | mm | V,HZ,Phase | ||
| 0.5-01 | 0.5 | 11.8 | 11.8/2.4 | 1~130 | 6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
| 01-01 | 1 | 6.6 | 6.9/2.3 | 7 | ||
| 1.5-01 | 1.5 | 8.8 | 8.9/2.9 | 10 | ||
| 02-01 | 2 | 6.6 | 6.8/2.3 | 10 | ||
| 02-02 | 2 | 3.3 | 3.3/1.1 | 7.1 | ||
| 2.5-01 | 2.5 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-01 | 3 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-02 | 3 | 4.4 | 4.5/1.5 | 10 | ||
| 03-03 | 3 | 2.2 | 2.3/0.8 | 7.1 | ||
| 05-02 | 5 | 2.7 | 2.7/0.9 | 11.2 | ||
| 7.5-03 | 7.5 | 1.8 | 1.8/0.6 | 11.2 | ||
| 10-04 | 10 | 2.7 | 2.7/0.9 | 11.2 | ||
| 15-06 | 15 | 1.8 | 1.8/0.6 | 11.2 | ||
| 20-08 | 20 | 1.4 | 1.3/0.4 | 11.2 | ||
| 25-10 | 25 | 1.3 | 1.2/0.4 | 11.2 | ||
| 30-10 | 30 | 1 | 11.2 | |||
| 35-12 | 35 | 0.9 | 11.2 | |||
| 40-16 | 40 | 0.7 | 11.2 | |||
| 45-16 | 45 | 0.6 | 11.2 | |||
| 50-20 | 50 | 0.54 | 11.2 | |||
 |

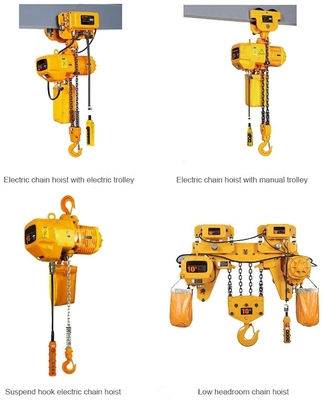

Electric chain hoist with electric trolley
|
Electric chain hoist with manual trolley
|
 |
 |
Suspend hook electric chain hoist
|
Low headroom electric chain hoist
|
 |
 |
Heavy duty electric chain hoist
|
 |
| Two sets single girder overhead crane equipped with our chain hoist are working in the workshop. |
 |
| Trolley with chain hoist as the lifting mechanism are cross-travelling on the top of the double girder overhead crane. |
 |
| Electric hoist for worksation free standing overhead crane system. |
